1. Introduction

• In the world of construction formwork, table formwork and flx - table formwork are like two distinct superheroes, each with its own superpowers. They have significant differences in many aspects and are suitable for vastly different scenarios. Understanding these differences is crucial for streamlining construction processes and enhancing project quality.

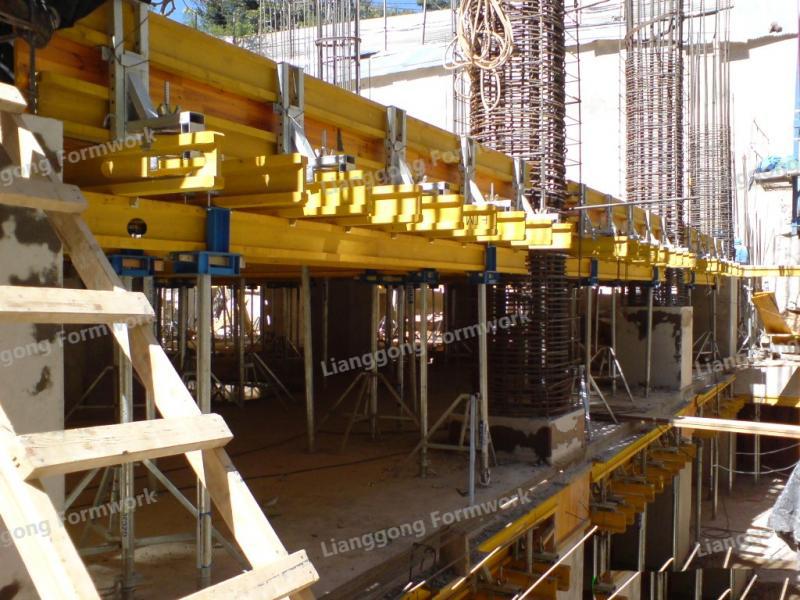

1.1. Table Formwork: The Powerhouse for Large - scale Construction

• Table formwork is a go - to choice for slab pouring in construction projects such as high - rise buildings, multi - storey industrial buildings, and underground structures. With common standard unit sizes like 2.44×4.88m and 3.3×5m, its well - organized dimensions make it a star when it comes to large - area and regular - shaped slab construction. It has a smartly designed structure, mainly composed of panels and supports, with a high degree of integrity. After concrete pouring, with the help of lifting devices like tower cranes, it can be moved as a whole. This feature significantly speeds up the construction process and saves a ton of manpower.

• Take the construction of a large - scale office building as an example. Each standard floor slab has a large area and a regular shape. Table formwork can be quickly installed, poured, and demolded. Its high turnover efficiency effectively shortens the construction period, providing a strong guarantee for the project to be delivered on time.

1.2. Flx - table Formwork: The Agile Wizard for Complex Spaces

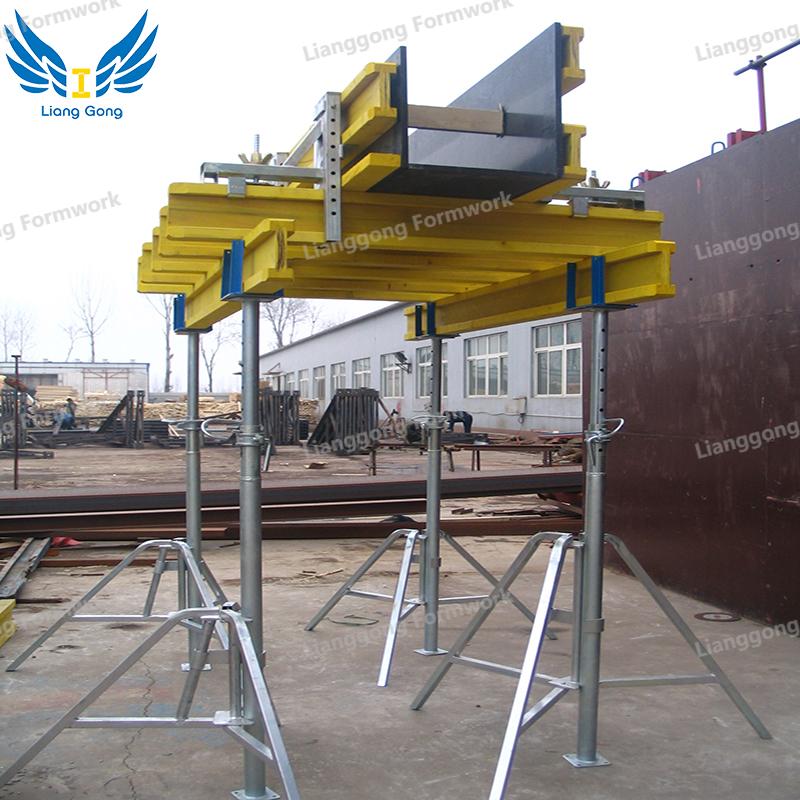

• Flx - table formwork is specifically designed for the concrete pouring of complex - shaped floor slabs and narrow spaces. Areas such as around elevator shafts, stairwells, and in villa projects, where space is limited and shapes are diverse, are where flx - table formwork really shines. It consists of steel props or tripods, different support heads, H20 wooden beams, and plywood. Despite its simple structure, it's extremely adaptable. Since each individual formwork unit is lightweight, construction can be carried out without the need for a crane at all. Workers can easily carry, assemble, and disassemble it by hand.

• During the construction of a villa, the floor slabs often have unique and irregular designs. Flx - table formwork can be flexibly assembled on - site according to the specific shape, perfectly meeting the construction requirements and ensuring the smooth progress of the project.

2. Distinct Differences between Table Formwork and Flx - table Formwork

2.1. Divergent Application Scenarios

• The flx - table formwork system, with its flexibility, takes the lead in the construction of complex floor slab planes and narrow spaces, such as around elevator shafts, stairwells, and in villa projects. On the other hand, table formwork is more suitable for large - space slab pouring in high - rise buildings, multi - storey industrial buildings, and underground structures, efficiently handling large - area operations.

2.2. Varying Degrees of Equipment Dependence

• The flx - table formwork system is so easy to operate that all construction procedures can be completed by manpower, with no reliance on cranes whatsoever. In contrast, due to its size and weight, table formwork must rely on lifting devices and other mechanical equipment for transfer during the construction process.

2.3. Contrasting Structural Features

• The flx - table formwork system is made up of multiple components, with a relatively loose structure that relies on the combination of small units to form the whole. Table formwork, however, has standard unit sizes, a highly integrated structure, and better stability.

2.4. Different Construction Efficiencies

• Although the flx - table formwork system is easy to disassemble, assemble, and flexibly arrange, when it comes to large - area construction, its efficiency is lower than that of table formwork because it requires assembling each formwork unit one by one. Table formwork, with its ability to move as a whole, can significantly accelerate the construction speed and save manpower in large - area slab construction.

3. Collaboration: The Synergy of the Two Systems

• In actual construction, building structures are complex and diverse, and a single formwork system often cannot meet all the requirements. At this time, a reasonable combination of table formwork and flx - table formwork can achieve complementary advantages. For complex - shaped and narrow - space areas in buildings, such as around elevator shafts and stairwells, the flx - table formwork system can be used to flexibly adapt to irregular shapes. For large - area regular slab parts, such as the open spaces on the standard floors of high - rise buildings, table formwork can be used to improve construction efficiency with its integral movement characteristics, taking into account both construction flexibility and high efficiency.

• In conclusion, table formwork and flx - table formwork each have their own advantages in construction. Construction teams should carefully consider the actual situation of the project and make accurate choices of formwork systems to ensure the smooth progress of the project and build high - quality construction projects.
