Sustainable Shuttering Solutions in Singapore

1. Sustainable Formwork Product System

a. Steel Frame Wall And Column Formwork

Structure Design: It combines a 65mm steel frame (made of Q355B steel) with a 12mm plastic - covered plywood (hardwood base + PP film).
Performance Advantages:

• It has a strong load - bearing capacity and can withstand a concrete lateral pressure of 60kPa (the industry standard is 45kPa).

• The plywood can be used for at least 30 times, and the steel frame can be recycled over 100 times.

• It's lightweight, weighing only 28kg per square meter, which is 40% lighter than traditional steel formwork.

• Construction Value: It has standardized modules (with an adjustable width from 300 - 1500mm). When used with a quick - release support system, it can increase the daily installation efficiency of a single workgroup by 35%.

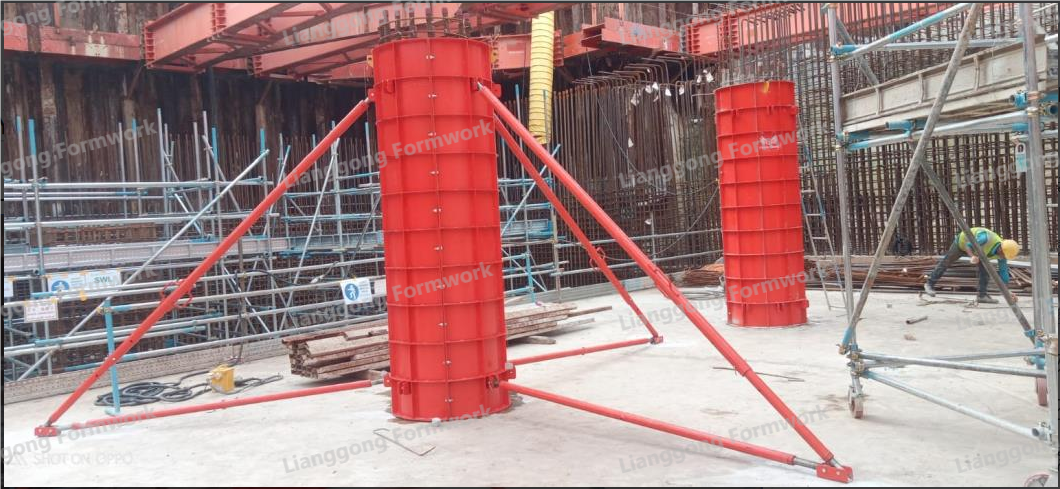

b. All - steel Column Formwork

Process Features: It uses an 8mm steel panel combined with double - channel steel back - ribs (connected by a patented locking mechanism).
Technical Highlights:

• It has extremely high precision. The verticality deviation is less than 1/1000, and the surface flatness reaches 3mm per 2m, which allows for plaster - free construction.

• It has excellent anti - corrosion performance with a nano - coating (passing a salt spray test of over 1000 hours).

• It can be used for more than 50 times per set, and comes with a digital management system to track its service life.

• Application Scenarios: It's suitable for special - shaped structures such as parking lot columns (with a diameter from 600 - 2000mm) and bridge piers.

2. Full - chain Service System

a. Smart Delivery

• Packaging Optimization: We use foldable steel frames (which can reduce the volume by 60%) and nested column formwork designs, increasing the loading capacity of a 40 - foot container by 45%.

• Prefabrication Standards: The components are pre - drilled and laser - numbered, and come with standardized installation instructions (including picture - text manuals and video tutorials).

• Logistics Solution: We use ISO 14001 - certified recycled packaging (with a 98% wooden pallet recycling rate). Our direct - from - port logistics network covers the main ports in Southeast Asia, with industry - leading delivery times in these areas.

b. Technical Support

• Custom Design: We provide BIM detailed design and can confirm with 3D - printed samples, with a response time of less than 48 hours.

• Operation and Maintenance Service: We rely on a formwork cloud platform for real - time monitoring (which can warn of maintenance cycles and reduce management costs by 30%).

• Training Support: We offer on - site operation training in overseas markets such as Southeast Asia and the Middle East.

3. Core Value Proposition

a.  Quality Assurance

• Steel Source: The steel is directly supplied by large domestic and foreign steel mills and has passed SGS certification.


• Quality Inspection: It undergoes three strict inspection procedures (pressure, waterproofing, and dimension), with a 100% pass rate, which is higher than the national standard GB/T 17656.

b. Sustainable Advantages

• Resource Conservation: Each project can reduce wood consumption by over 1000 cubic meters, which is equivalent to saving 5000 trees.

• Low - carbon and Environmentally Friendly: The carbon emissions of the all - steel system are 62% lower than those of wooden formwork, supported by a third - party carbon footprint report.

• Circular Economy: The average turnover times of our formwork reach 1.5 times that of the industry.

c. Service Promise

• Customization: We can design according to your needs, supporting special - shaped structures such as hyperbolic columns and variable - cross - section walls.

• Time - efficiency Assurance: With our direct - from - port logistics network, we have industry - leading delivery times in the main ports of Southeast Asia.

• After - sales Support: We provide industry - leading warranty services (with terms subject to the contract).

• Leading Performance: It ranks among the top 10 in the industry in terms of load - bearing capacity, turnover times, and construction efficiency.

• Green and Compliant: It meets international certification requirements such as Singapore BCA Green Mark and LEED.

• Cost Optimization: The full - life - cycle cost is 25% lower than traditional solutions, covering materials, labor, and transportation.

• Global Hotline: +86 182 0105 1212

• Business Email: sales01@lianggongform.com

• Website: www.liangongform.com (multilingual versions available)

• R & D Team of Yancheng Liangong  Formwork
