How To Moving Table Formwork in Construction?

1. The Wizard of Vertical Transportation: Mastering the Lifting Fork

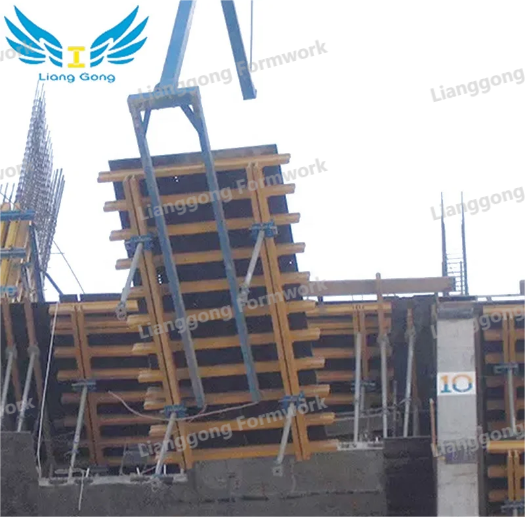

The lifting fork is the absolute star when it comes to moving table formwork up and down between floors. It can whisk large - scale table formwork from one level to another with ease. There are two main types of lifting forks out there. One measures 500 cm long, 98 cm wide, 840 cm high, weighs 803.68 kg, and can handle a load of 1 ton. The other is 520 cm long, 106 cm wide, 425 cm high, weighs 821.93 kg, and has a beefy 1.5 - ton load - bearing capacity.

(1) Pre - lift Prep Work

1. Give the lifting fork a really thorough once - over. Check every mechanical bit, like the hook, the wire rope, and the hydraulic system. Make sure nothing's worn out, nothing's loose, and everything's in tip - top working order.

2. Have a good look at the table formwork. Check those connecting parts to make sure they're rock - solid, and look for any signs of damage on the surface. We don't want any surprises during the lift.

3. Based on how heavy and how big the table formwork is, pick the right lifting fork with the appropriate load - bearing muscle. Then, plot out a clear lift route, steering clear of all those pesky obstacles on the construction site.

(2) The Lifting Operation Unveiled

1. Park the lifting fork right above the table formwork. Lower the hook nice and slow until it latches onto the table formwork's lift points. These lift points are carefully designed spots on the table formwork, and you gotta make sure the hook's really secure.

2. Once the hook's in place, start raising it slowly, all the while keeping a sharp eye on the table formwork to make sure it stays nice and level. If it starts to tilt even a little bit, stop right away and adjust the hook's position until it's perfectly balanced.

3. Lift the table formwork up to a good height, high enough to clear any obstacles below. Then, follow the planned route and ferry the table formwork right above the target spot.

4. When you're above the target, start lowering the table formwork. As you get close to the installation point, be extra careful. You want to place the table formwork with absolute precision.

5. Once the table formwork's in its final resting place, unhook it and drive the lifting fork away. And just like that, the lift is complete!

2. The Pro of Horizontal Transportation: Navigating with the Shifting Trolley

• The shifting trolley is the go - to for moving table formwork around on the same floor. It's designed to be compact and super - useful, making horizontal movement a total breeze.

(1) Getting Ready to Roll

1. Inspect the shifting trolley from top to bottom. Check the wheels to make sure they spin freely, the brakes to make sure they work like a charm, and the frame to make sure it's not bent or warped.

2. Clear the path where the table formwork's gonna roll. Get rid of all the junk and make sure the surface is flat and obstacle - free. That way, the shifting trolley can zoom along without a hitch.

(2) The Moving Process Step - by - Step

1. Push the shifting trolley right under the table formwork. Jiggle it around a bit to line up the trolley's support parts with the table formwork's support points perfectly.

2. Operate the trolley's lifting gizmo. Slowly raise the trolley until its support parts are snug against the table formwork, taking on the full weight of the formwork.

3. Once you're sure the table formwork and the trolley are firmly connected, release the table formwork from its original supports, like those floor supports.

4. Now, it's time to push the trolley. Follow the planned route and guide the table formwork to the designated spot. Keep an eye out for any potential collisions along the way.

5. When you reach the target location, lower the table formwork gently by operating the trolley's lifting device. Place it down nice and steady, and then roll the shifting trolley away.

3. The Perfect Team - up: Achieving Effortless Table Formwork Movement

• In real - world construction, the lifting fork and the shifting trolley need to be like a well - oiled machine. When the lifting fork drops the table formwork off at the right floor, the shifting trolley jumps into action, ready to take over and move it horizontally. This seamless teamwork makes the table formwork move smoothly in both the up - down and side - to - side directions. It not only cranks up the construction speed but also cuts down on all that unnecessary muscle work. It's an essential part of keeping modern construction projects on track and running like a dream.

• As construction technology keeps evolving, the tools for moving table formwork will only get better. In the future, we can expect even more efficient and user - friendly solutions, taking the construction industry to new heights.
