120 Steel frame formwork

120 Steel Frame Formwork specifications:

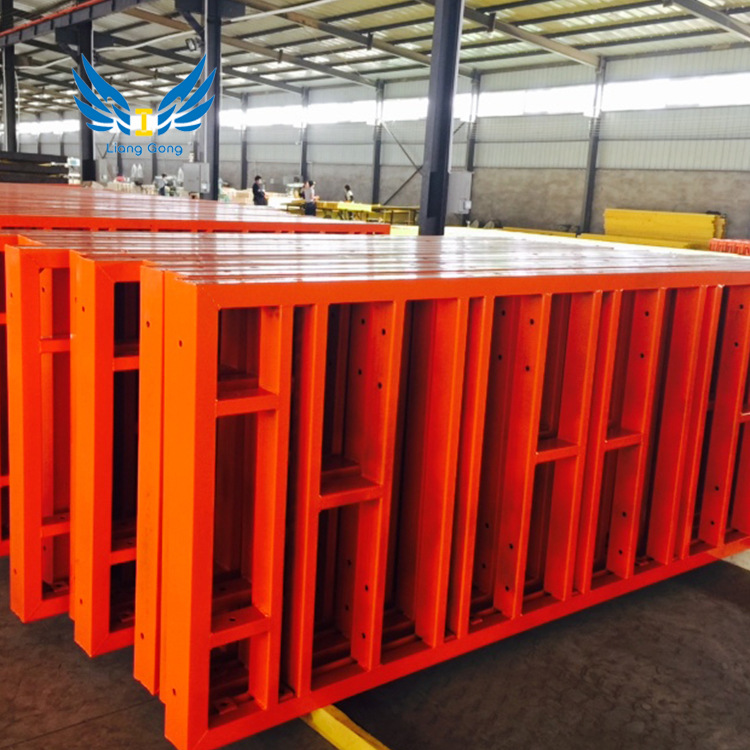

The 120 Steel Frame Formwork by Lianggong is a high-strength formwork system designed for concrete construction projects. It features an 18mm thick plywood panel supported by a robust steel frame. The frame is made from cold-rolled steel, offering durability and resistance to deformation.

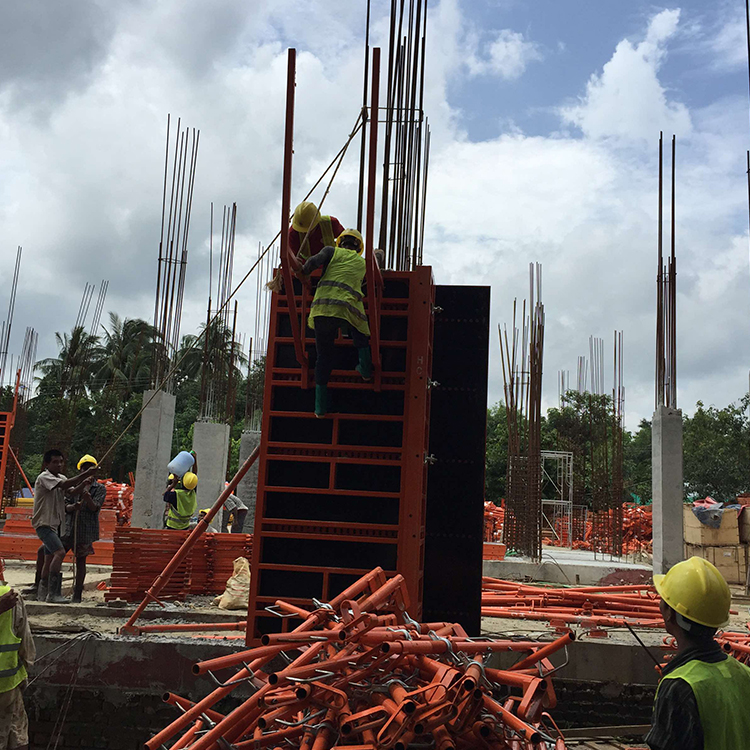

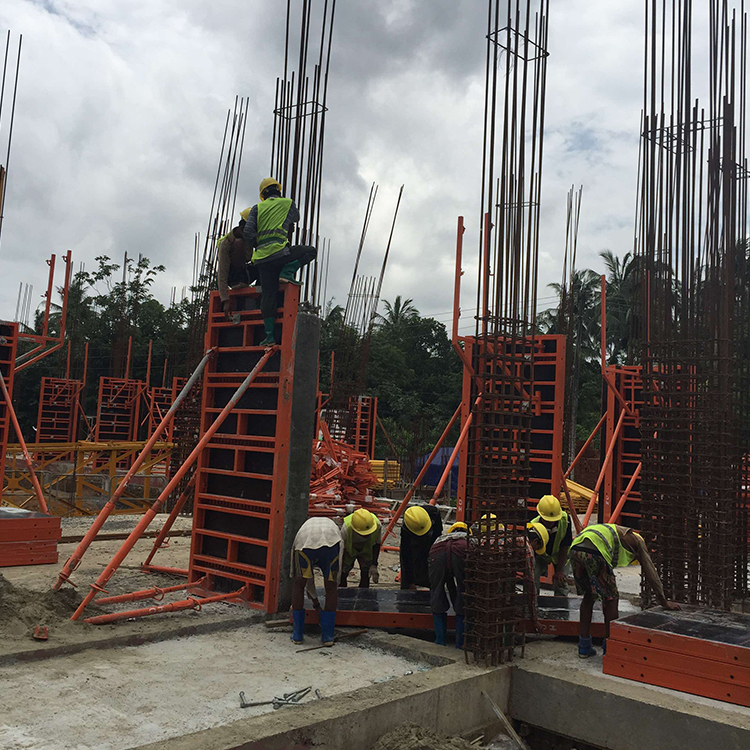

This formwork system suits shear walls, core walls, and columns of various sizes. Panels are available in multiple heights: 3.3m, 2.7m, and 1.2m, with widths ranging from 0.3m to 2.4m. Each panel can be set vertically or horizontally, allowing flexible configurations on-site.

The formwork is easy to assemble, thanks to alignment couplers and steel clamps. Its panels can handle up to 70 KN/m² for walls and 80 KN/m² for columns. These high load capacities reduce the need for extra support during concrete pouring.

Lianggong’s 120 Steel Frame Formwork includes essential components like scaffold brackets, push-pull props, and lifting hooks. The system is pre-assembled and ready for immediate use upon delivery, reducing setup time on-site. Its steel frame design protects the plywood edges from water infiltration, extending its service life.

This product offers efficient, reliable solutions for industrial and residential projects.

Key features for Lianggong's 120 Steel Frame Formwork

- High Load Capacity:

Supports up to 70 KN/m² for walls and 80 KN/m² for columns, providing robust support during concrete pouring.

- Flexible Panel Sizes:

Available in heights of 3.3m, 2.7m, and 1.2m, and widths from 0.3m to 2.4m, offering adaptable configurations for various structures.

- Efficient Assembly:

Uses alignment couplers and steel clamps for quick setup and easy adjustments, reducing labor time on-site.

- Durable Materials:

Constructed with 18mm thick plywood and cold-rolled steel frames, ensuring longevity and resistance to deformation.

- Water-Resistant Design:

Steel frames protect plywood edges from water, extending the formwork’s lifespan in wet conditions.

- Pre-Assembled System:

Delivered ready for use, minimizing the need for on-site assembly and setup time.

- Comprehensive Accessory Kit:

Includes scaffold brackets, push-pull props, alignment couplers, lifting hooks, and tie rods, supporting diverse construction needs.

- Versatile Orientation:

Panels can be installed vertically or horizontally, allowing flexible layout options to fit specific project requirements.

- Smooth Concrete Finish:

Plywood is securely screwed to the frame from the back, ensuring a uniform and smooth surface on the finished concrete.

Advantages of 120 Steel Frame Formwork

1. Cost and Environment Benefits: Steel formwork reduces costs and supports eco-friendly construction practices.

2. Simple Assembly and Disassembly: Quick setup and removal allow flexibility on-site.

3. High Pressure Resistance: Withstands substantial concrete pressure during construction.

4. Lightweight Design: Easily moved by hand, simplifying handling and placement.

5. Efficiency: Minimizes labor costs and shortens erection time, enhancing productivity.

Value-added Service

1. Formwork & Scaffolding Proposals: Detailed project proposal drawings for formwork and scaffolding.

2. Material List Provision: Comprehensive list of required materials for accurate project planning.

3. Shop Drawings: Precise shop drawings to guide on-site assembly.

4. Calculation Sheets: Clear calculation sheets for load and structural integrity checks.

5. Loading Capacity Analysis: Detailed analysis of formwork loading capacities.

6. On-Site Assembly Instructions: Step-by-step guidance for efficient assembly.

7. After-Sale Support: Reliable post-purchase assistance for any formwork needs.

8. Cargo Transport Arrangement: Organized transport with tracking for efficient delivery.

9. Import/Export Documentation: Complete support with necessary import/export documents.
