China LianGong Wholesale Brace Frame Steel Single-Side Bracket for Subway Retaining Wall Construction

Single Side Bracket

What is Single Side Bracket of Lianggong Formwork?

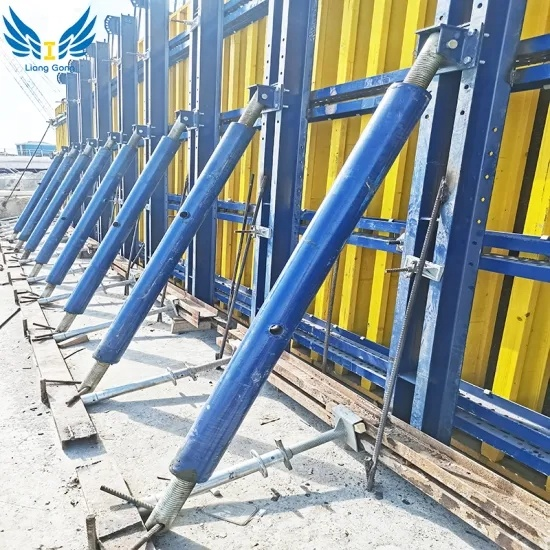

For the concrete casting of single-sided walls, the Single Side Bracket is a formwork system distinguished by its universal components, straightforward construction, and fast and easy operation. Due to the absence of a wall-through tie rod, the cast wall body is entirely impermeable to water. The lateral pressure is completely borne by the pre-embedded anchor system. Protection against slopes on the side of roads and bridges, sewage treatment plants, subterranean walls, and subways has been a common application.

Why was the Single-Side Bracket invented?
The use of single-side brackets for single-side walls, such as basement walls, is growing in popularity due to space constraints as well as the water-proof requirement on building sites. The inability to regulate the lateral pressure of concrete in the absence of wall-through tie rods has significantly disrupted the operation of the formwork. Many engineering projects have employed a variety of methods, but formwork deformation or breaking occurs now and then. Our company's single-sided bracket is specifically made to meet on-site needs and provides a solution for formwork strengthening. The rational design of the single-sided bracket is complemented by its practical construction, straightforward operation, rapid speed, adequate load capacity, and labor-saving features, among others.
What's the maximum pouring height and main components using Single-Side Bracket ?
The maximum height that can be cast at once is 7.5 meters, and it consists of crucial components including the anchor system, formwork, and single-sided bracket.
Introduce the types of single-side brackets as follows:

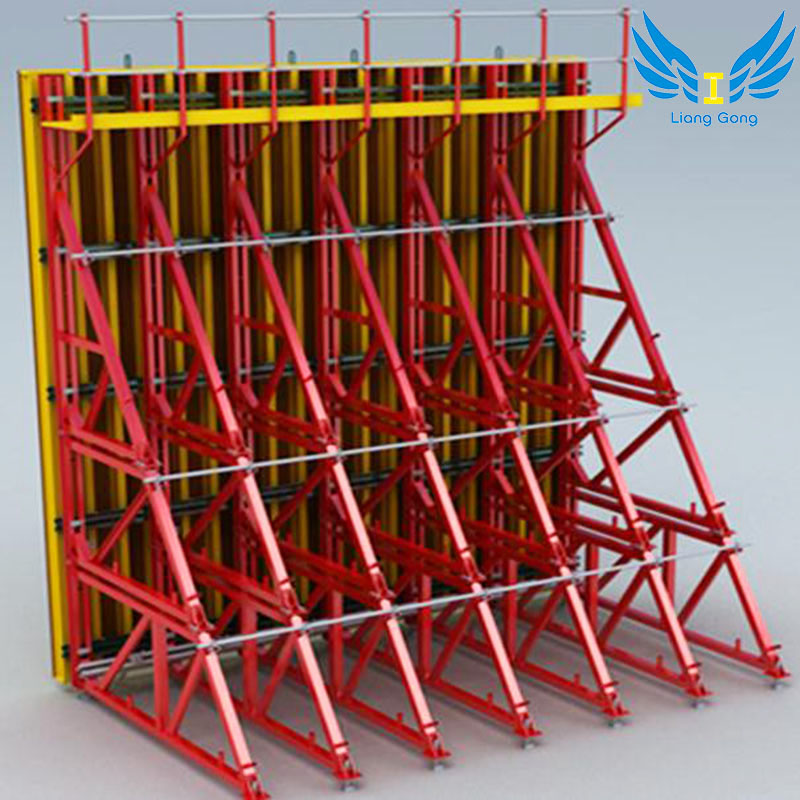

Single-Side Brackets are classified into two types due to the concrete height of walls, i.e., the diagonal type and the truss type.

Application:
