What is steel formwork?

I. Introduction



Steel formwork is a crucial component in modern construction, particularly in commercial and large-scale building projects. It refers to a system of steel panels and supporting structures used to create temporary molds into which concrete is poured and shaped. This innovative approach to construction has revolutionized the industry, offering numerous advantages over traditional formwork methods.



The development of steel formwork can be traced back to the early 20th century, coinciding with the rise of steel as a primary construction material. As buildings grew taller and more complex, the need for stronger, more precise, and reusable formwork became apparent. Steel formwork emerged as a solution to these challenges, providing the strength and versatility required for modern construction projects.



In today's construction landscape, steel formwork plays a pivotal role in ensuring the structural integrity, efficiency, and cost-effectiveness of building projects. Its importance is particularly evident in commercial constructions, where speed, precision, and durability are paramount. As we delve deeper into the world of steel formwork, we'll explore its components, advantages, applications, and impact on the construction industry.



II. Components and Structure of Steel Formwork



Steel formwork systems are composed of several key components that work together to create a robust and efficient concrete molding solution:



A. Main components:

1. Steel panels: These are the primary forming surfaces that come into direct contact with the concrete. They are typically made of high-strength steel and come in various sizes to accommodate different project needs.

2. Ties: These are used to hold the formwork panels together and resist the lateral pressure of wet concrete.

3. Wedge bolts: These secure the panels and ties, allowing for easy assembly and disassembly.

4. Walers: Horizontal supports that distribute the pressure of concrete across multiple panels.

5. Strongbacks: Vertical supports that provide additional rigidity to the formwork system.



B. Types of steel formwork systems:

1. Panel systems: Prefabricated steel panels that can be quickly assembled on-site.

2. Beam and slab systems: Used for creating horizontal concrete structures.

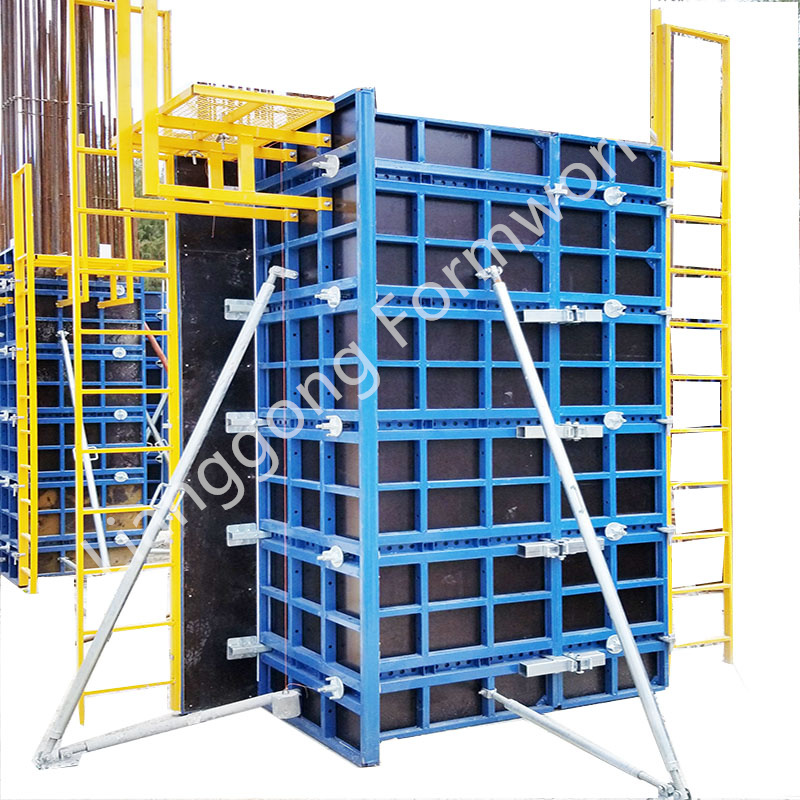

3. Column systems: Specialized formwork for vertical concrete elements.

4. Tunnel form systems: Used in the construction of repetitive cellular structures.



C. Manufacturing process and materials:

Steel formwork is typically manufactured using high-grade steel, often 45# steel or Q235 steel. The manufacturing process involves:

1. Steel sheet cutting and shaping

2. Welding of components

3. Surface treatment (painting or powder coating)

4. Quality control and testing



The result is a durable, precision-engineered formwork system designed to withstand the pressures of concrete pouring and provide a smooth finish to the final structure.



III. Advantages of Steel Formwork



Steel formwork offers numerous advantages that have made it a preferred choice in modern construction, especially for commercial buildings:



A. Durability and strength:

Steel formwork is exceptionally robust, capable of withstanding the substantial pressures exerted by wet concrete without deforming. This strength ensures that the final concrete structure maintains its intended shape and dimensions, which is crucial for the structural integrity of commercial buildings.



B. Reusability and cost-effectiveness:

One of the most significant advantages of steel formwork is its reusability. When properly maintained, steel formwork can be used up to 2000 times, making it highly cost-effective in the long run. This reusability not only reduces material costs but also minimizes waste, contributing to more sustainable construction practices.



C. Smooth concrete finish:

Steel formwork provides a smooth and clean concrete finish, unlike timber formwork which can leave textures or marks on the concrete surface. This smooth finish is particularly desirable in commercial buildings where aesthetics are important, often eliminating the need for additional surface treatments.



D. Time efficiency in construction:

The use of steel formwork can significantly reduce construction time. Its quick assembly and disassembly, coupled with faster concrete curing times due to its non-absorbent nature, lead to shorter project timelines. This time efficiency is crucial in commercial construction where rapid project completion can translate to earlier returns on investment.



E. Versatility and adaptability:

Steel formwork is highly versatile and can be adapted to various structural requirements. It's suitable for a wide range of applications, from foundations and columns to high-rise buildings and complex architectural designs. This adaptability makes it an ideal choice for diverse commercial building projects.



F. Consistency and quality control:

The precision engineering of steel formwork ensures consistent results across multiple pours. This consistency is vital in commercial construction where uniformity and adherence to specifications are crucial. It also simplifies quality control processes, reducing the likelihood of errors and the need for rework.



G. Non-absorbent properties:

Unlike timber formwork, steel does not absorb moisture from the concrete. This non-absorbent quality ensures that the water-cement ratio of the concrete remains consistent, leading to stronger and more durable concrete structures. It also contributes to a cleaner work environment and reduces the risk of formwork degradation over time.



These advantages make steel formwork particularly suitable for commercial building projects where strength, efficiency, and quality are paramount considerations.



IV. Disadvantages of Steel Formwork



While steel formwork offers numerous benefits, it's important to consider its potential drawbacks:



A. Initial high cost:

The upfront cost of steel formwork is significantly higher compared to traditional timber formwork. This initial investment can be a deterrent for smaller projects or companies with limited capital. However, it's crucial to consider the long-term cost-effectiveness due to its reusability.



B. Weight and transportation challenges:

Steel formwork is considerably heavier than alternatives like timber or aluminum. This weight can pose challenges in transportation and on-site handling, potentially increasing logistical costs and requiring specialized equipment for movement and installation.



C. Limited shapes and sizes:

While versatile, steel formwork comes in prefabricated shapes and sizes. This can limit its application in projects requiring highly unique or complex geometries. Custom fabrication is possible but can significantly increase costs.



D. Potential for heat loss:

Steel is a good conductor of heat, which can be problematic in cold weather concreting. The formwork may need additional insulation to prevent rapid heat loss from the curing concrete, which could affect its strength development.



E. Maintenance requirements:

To maintain its effectiveness and longevity, steel formwork requires regular cleaning, inspection, and occasional repairs. Proper storage is also crucial to prevent rust and damage. These maintenance needs can add to the overall operational costs.



Understanding these disadvantages is crucial for construction managers and contractors when deciding on the most appropriate formwork system for their specific project requirements.



V. Applications of Steel Formwork in Commercial Buildings



Steel formwork finds extensive use in various aspects of commercial building construction:



A. High-rise structures:

In the construction of skyscrapers and multi-story commercial buildings, steel formwork is invaluable. Its strength and precision are crucial for maintaining structural integrity at great heights. The reusability of steel formwork is particularly advantageous in high-rise construction, where similar floor plans are repeated multiple times.



B. Foundations and columns:

Steel formwork is widely used for creating robust foundations and columns in commercial buildings. Its ability to withstand high pressure makes it ideal for large-scale concrete pours often required in commercial foundation work. For columns, steel formwork ensures straight and smooth surfaces, which are often left exposed in modern commercial interiors.



C. Bridges and tunnels:

While not strictly commercial buildings, bridges and tunnels are often part of commercial infrastructure projects. Steel formwork's durability and precision make it an excellent choice for these structures where safety and longevity are paramount.



D. Industrial facilities:

In the construction of warehouses, factories, and other industrial facilities, steel formwork's strength and ability to create large, open spaces are highly valued. Its resistance to wear and tear also makes it suitable for the harsh conditions often found in industrial settings.



E. Other commercial applications:

Steel formwork is also used in the construction of:

- Parking structures, where its ability to create precise, repeatable patterns is beneficial

- Retail spaces, where large, open areas are often required

- Office complexes, where speed of construction can be a critical factor

- Educational institutions, where durability and longevity of structures are important considerations



The versatility of steel formwork makes it a go-to solution for a wide range of commercial building projects, contributing to the efficiency and quality of modern construction practices.



VI. Comparison with Other Formwork Types



To fully appreciate the advantages and limitations of steel formwork, it's helpful to compare it with other common formwork types:



A. Steel vs. Timber formwork:

1. Durability: Steel is far more durable and can be reused many more times than timber.

2. Finish: Steel provides a smoother concrete finish compared to timber.

3. Cost: Steel has a higher initial cost but is more cost-effective in the long run due to reusability.

4. Weight: Steel is heavier, making it more challenging to handle on-site.

5. Customization: Timber is easier to cut and modify on-site for custom shapes.

6. Environmental impact: Steel is more recyclable, while timber is more biodegradable.



B. Steel vs. Aluminum formwork:

1. Strength: Steel is stronger and can withstand higher concrete pressures.

2. Weight: Aluminum is lighter, making it easier to transport and handle.

3. Cost: Aluminum generally has a higher initial cost than steel.

4. Corrosion resistance: Aluminum naturally resists corrosion better than untreated steel.

5. Heat conductivity: Both conduct heat, but aluminum does so more readily.

6. Lifespan: Steel typically has a longer lifespan when properly maintained.



C. Steel vs. Plastic formwork:

1. Durability: Steel is more durable and suited for heavy-duty applications.

2. Weight: Plastic is significantly lighter, often allowing for manual handling.

3. Cost: Plastic often has a lower initial cost but may not be as reusable as steel.

4. Flexibility: Plastic formwork can be more flexible, allowing for some curved surfaces.

5. Environmental impact: Steel is more recyclable, while some plastics may not be biodegradable.

6. Application range: Steel is suitable for a wider range of construction projects.



This comparison highlights that while steel formwork excels in many areas, particularly for large-scale and repetitive commercial construction, each type of formwork has its place depending on the specific requirements of a project.



VII. Selection Criteria for Steel Formwork



Choosing the right formwork system is crucial for the success of any construction project. When considering steel formwork, several key factors should be evaluated:



A. Project requirements and scale:

The size and complexity of the project play a significant role in formwork selection. Steel formwork is particularly well-suited for:

- Large-scale commercial projects

- High-rise buildings

- Projects with repetitive structural elements

- Constructions requiring high precision and smooth finishes



B. Budget considerations:

While steel formwork has a higher initial cost, its long-term economics should be evaluated:

- Initial investment vs. number of reuses

- Potential labor cost savings due to faster assembly/disassembly

- Reduced material waste compared to single-use formwork

- Potential savings on concrete finishing due to smoother surfaces



C. Environmental factors:

The construction environment can influence the choice of formwork:

- Climate conditions (temperature extremes, humidity)

- Site accessibility for transportation of heavy steel components

- Local regulations regarding noise and environmental impact



D. Safety considerations:

Safety is paramount in construction. Steel formwork offers:

- High stability and load-bearing capacity

- Reduced risk of formwork failure during concrete pours

- Potential for prefabrication, reducing on-site assembly risks

However, its weight necessitates proper handling equipment and procedures.



E. Reusability needs:

The potential for reuse should be a key consideration:

- Estimated number of uses required for the project

- Storage facilities for formwork between uses

- Maintenance capabilities to ensure longevity



By carefully considering these criteria, construction managers can make an informed decision about whether steel formwork is the most suitable choice for their specific commercial building project.



VIII. Installation and Removal Process



The efficient installation and removal of steel formwork are crucial for maximizing its benefits in commercial construction. Here's an overview of the process:



A. Preparation and planning:

1. Site assessment: Evaluate the construction site for access, storage, and crane positioning.

2. Formwork design: Create a detailed plan for formwork layout and assembly sequence.

3. Material delivery: Coordinate the delivery of formwork components to align with the construction schedule.

4. Team briefing: Ensure all workers are trained in the specific steel formwork system being used.



B. Assembly techniques:

1. Base preparation: Ensure a level and stable surface for formwork placement.

2. Panel placement: Position steel panels according to the design plan.

3. Alignment and bracing: Use leveling instruments to ensure perfect alignment and add bracing for stability.

4. Tie installation: Secure panels together using the specified tie system.

5. Application of release agent: Apply a thin, even coat of release agent to facilitate easy removal.



C. Safety precautions during installation:

1. Personal Protective Equipment (PPE): Ensure all workers wear appropriate safety gear.

2. Fall protection: Implement fall protection systems when working at heights.

3. Lifting and handling: Use proper lifting techniques and equipment for heavy panels.

4. Regular inspections: Conduct frequent checks during assembly to ensure stability and conformity to design.



D. Stripping and cleaning process:

1. Timing: Determine the appropriate time for formwork removal based on concrete strength and project requirements.

2. Systematic removal: Start the stripping process from top to bottom for vertical structures.

3. Panel cleaning: Clean panels immediately after stripping to prevent concrete buildup.

4. Inspection: Check panels for damage or wear and set aside any that need repair.

5. Storage: Properly stack and store panels to prevent warping or damage.



By following these procedures, construction teams can ensure the safe and efficient use of steel formwork, maximizing its benefits in commercial building projects.



IX. Maintenance and Care of Steel Formwork



Proper maintenance of steel formwork is essential to ensure its longevity, safety, and cost-effectiveness. Here are key aspects of maintaining steel formwork:



A. Cleaning procedures:

1. Immediate cleaning: Clean formwork panels promptly after each use to prevent concrete buildup.

2. Cleaning methods:

   - Use scrapers or wire brushes to remove residual concrete

   - For stubborn residues, use appropriate chemical cleaners

   - High-pressure water cleaning can be effective but care must be taken not to damage the panel surface

3. Inspection during cleaning: Use the cleaning process as an opportunity to inspect panels for damage or wear



B. Storage recommendations:

1. Dry storage: Store formwork in a dry area to prevent rust and corrosion

2. Stacking: Stack panels flat to prevent warping, with spacers between panels to allow air circulation

3. Organization: Implement a system to organize different sizes and types of panels for easy retrieval

4. Protection: Cover stored formwork to protect from dust, debris, and accidental damage

5. Accessibility: Ensure storage areas are easily accessible for both storage and retrieval



C. Repair and replacement of components:

1. Regular inspections: Conduct thorough inspections after each use to identify any damaged components

2. Minor repairs:

   - Small dents can often be repaired on-site

   - Replace worn or damaged ties and wedges promptly

3. Major repairs:

   - For significant damage, send panels to specialized repair facilities

   - Consider the cost of repair versus replacement for heavily damaged panels

4. Welding repairs: Only use qualified welders for any welding repairs to maintain structural integrity

5. Coating maintenance: Reapply protective coatings as needed to prevent rust and extend panel life



By implementing a comprehensive maintenance program, construction companies can significantly extend the life of their steel formwork, ensuring it remains a valuable asset for many projects to come.



X. Environmental Impact and Sustainability



As the construction industry increasingly focuses on sustainability, it's important to consider the environmental impact of steel formwork:



A. Energy efficiency in production:

1. Manufacturing process: Steel production is energy-intensive, but modern techniques have significantly improved efficiency.

2. Recycled content: Many steel formwork systems incorporate recycled steel, reducing the overall energy footprint.

3. Durability factor: The long lifespan of steel formwork means less frequent replacement, reducing long-term energy consumption.



B. Recyclability of steel formwork:

1. High recyclability: Steel is 100% recyclable without loss of quality, making it a sustainable material choice.

2. End-of-life considerations: When steel formwork eventually reaches the end of its useful life, it can be fully recycled into new steel products.

3. Closed-loop potential: The construction industry can potentially create a closed-loop system where old formwork is recycled into new formwork or other construction materials.



C. Comparison with other formwork materials:

1. Timber formwork: While biodegradable, timber has limited reusability and often ends up in landfills. Deforestation concerns are also associated with timber use.

2. Aluminum formwork: Although lightweight and recyclable, aluminum production is extremely energy-intensive, often more so than steel.

3. Plastic formwork: While lightweight and potentially reusable, many plastics are not biodegradable and can pose long-term environmental challenges.



4. Lifecycle assessment: When considering the entire lifecycle - from production to disposal - steel formwork often performs well due to its durability and recyclability.



5. Waste reduction: The reusability of steel formwork significantly reduces construction waste compared to single-use formwork systems.



6. Carbon footprint: While steel production does have a significant carbon footprint, the long lifespan and recyclability of steel formwork can offset this over time, especially when compared to less durable alternatives.



By considering these environmental factors, construction professionals can make informed decisions about the use of steel formwork in their pursuit of more sustainable building practices.



XI. Conclusion



A. Recap of key benefits:

Steel formwork has proven to be a game-changer in the construction industry, particularly for commercial buildings. Its durability, reusability, and ability to produce smooth concrete finishes make it an excellent choice for many projects. The time efficiency it offers in construction, coupled with its versatility and adaptability to various structural requirements, positions steel formwork as a preferred solution for modern construction challenges.



B. Steel formwork's role in modern construction:

In the realm of commercial building construction, steel formwork plays a crucial role in ensuring structural integrity, efficiency, and cost-effectiveness. Its applications range from high-rise structures and foundations to bridges and industrial facilities. The precision and consistency it offers are particularly valuable in commercial projects where quality and uniformity are paramount.



C. Final thoughts on its importance in the industry:

As the construction industry continues to evolve, with increasing emphasis on efficiency, sustainability, and quality, steel formwork is likely to remain a key player. Its ability to meet the demands of complex, large-scale projects while offering long-term cost benefits aligns well with the industry's direction.



However, it's important to remember that the choice of formwork should always be project-specific. While steel formwork offers numerous advantages, construction professionals must consider factors such as project requirements, budget constraints, environmental conditions, and sustainability goals when making their selection.



The future of construction lies in balancing efficiency with sustainability, and steel formwork, with its durability and recyclability, is well-positioned to meet these dual demands. As technology advances, we may see further innovations in steel formwork design and application, potentially addressing some of its current limitations and expanding its use across even more diverse construction scenarios.



In conclusion, steel formwork represents a significant advancement in construction technology. Its widespread adoption in commercial building projects is a testament to its effectiveness and reliability. By understanding its strengths, limitations, and proper application, construction professionals can leverage steel formwork to create stronger, more efficient, and more sustainable commercial buildings.
