What are trench boxes

Trench boxes, also known as trench shields or manhole boxes, are essential safety devices used in excavation and construction projects. These sturdy structures, typically made of steel or aluminum, protect workers from dangerous cave-ins and collapsing trench walls. By allowing crews to dig deep, narrow trenches with vertical sides, trench boxes enable faster, more efficient excavation compared to traditional sloping methods. In this comprehensive guide, we'll dive into the world of trench boxes, exploring their design, applications, safety considerations, and importance in modern construction.



What is a Trench Box?



A trench box, also referred to as a trench shield, manhole box, sewer box, or tap box, is a critical safety device used in excavation and construction projects. It's a temporary protective structure designed to prevent trench walls from collapsing and endangering workers who are inside the trench.



Materials and Construction



Trench boxes are typically constructed from heavy-duty materials like steel or aluminum to ensure durability and strength. The choice between steel and aluminum depends on factors such as the required depth of the trench, soil conditions, and the weight capacity of the excavation equipment.

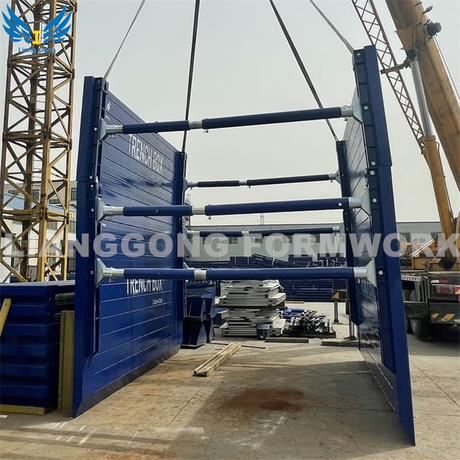

The basic structure of a trench box consists of two parallel side panels that are connected and held apart by sturdy spreader bars. These spreader bars, also known as struts, are horizontal metal bars that maintain the spacing between the side panels and provide additional structural support.



The side panels can vary in thickness, usually ranging from 3 inches to 12 inches, depending on the depth of the trench and the soil conditions. Thicker panels are used for deeper trenches or in more challenging soil conditions to ensure maximum protection for workers.



Sizes and Configurations



Trench boxes come in a wide range of sizes to accommodate different trench dimensions and project requirements. They can range from 6 feet to 40 feet in length and 4 feet to 10 feet in height. The width of the trench box is determined by the length of the spreader bars.



Some key configurations include:



- Standard trench boxes

- Modular aluminum trench boxes

- Manhole boxes

- Drag boxes and rolling strut boxes



Modular aluminum trench boxes offer the added flexibility of customizing the configuration by using different combinations of panels and adjustable spreaders. This adaptability allows contractors to tailor the trench box setup to the specific needs of each project.



By understanding what a trench box is, the materials it's made from, and its basic structure, contractors can select the appropriate trench safety system for their excavation projects.



How Trench Boxes Work



Trench boxes are engineered to provide a reliable protective system that prevents trench walls from collapsing and safeguards workers operating within the excavation. By creating a safe working environment, trench boxes enable construction crews to perform their tasks efficiently without compromising safety.



Preventing Trench Collapse



One of the primary functions of a trench box is to prevent trench walls from caving in. When a trench is excavated, the surrounding soil becomes unstable, and the risk of collapse increases with depth. Trench boxes are designed to withstand the lateral earth pressures exerted by the soil, effectively holding the trench walls in place.



It's important to note that trench boxes do not actually shore the trench. Shoring involves using hydraulic or pneumatic jacks to apply pressure against the trench walls, actively stabilizing the soil. In contrast, trench boxes act as a passive protective system, creating a safe zone within the excavation without directly supporting the trench walls.



Efficient Excavation



Trench boxes offer significant advantages over traditional excavation methods like sloping or benching. Sloping involves cutting the trench walls at an angle, while benching creates steps or ledges along the sides of the trench. Both methods require a wider excavation area and more soil removal, which can be time-consuming and costly.



By using trench boxes, construction teams can:



- Minimize the amount of soil removal required

- Reduce the overall width of the excavation

- Maintain vertical trench walls

- Accelerate the excavation process



These benefits translate into faster project completion times and lower excavation costs, making trench boxes an attractive choice for many construction projects.



Installation Methods



Trench boxes can be installed using two primary methods:



1. Pre-excavation: The trench is excavated to the desired depth, and the trench box is lowered into place using a crane or excavator.



2. Dig and push: The trench box is progressively pushed into the ground as the excavation proceeds. An excavator removes the soil from within the trench box, allowing it to descend further.



The choice of installation method depends on factors such as soil conditions, trench depth, and available equipment.



By understanding how trench boxes work to prevent collapses and enable efficient excavation, construction professionals can make informed decisions about incorporating these protective systems into their projects.



Types of Trench Boxes



Trench boxes come in various types and configurations to suit different excavation projects and site conditions. Understanding the characteristics and advantages of each type can help contractors select the most appropriate trench box for their specific needs. Let's explore some of the common types of trench boxes available in the market.



Standard Trench Boxes



Standard trench boxes are the most commonly used type in construction and excavation projects. They are designed to provide reliable protection for workers in a wide range of soil conditions and trench depths. These boxes are typically made of steel or aluminum and come in various sizes to accommodate different trench dimensions.



Standard trench boxes are known for their durability and strength, making them suitable for demanding excavation projects. They can be used in both open areas and confined spaces, providing versatility for different job site requirements.



Modular Aluminum Trench Boxes



Modular aluminum trench boxes offer a lightweight and flexible alternative to standard steel boxes. These boxes consist of individual panels and adjustable spreaders that can be easily assembled and configured to match specific trench sizes and shapes.



The modular design allows for quick installation and removal, saving time and effort on the job site. Aluminum trench boxes are also easier to transport and handle due to their lighter weight compared to steel boxes. However, they may have lower weight capacities and may not be suitable for the deepest excavations or the most challenging soil conditions.



Manhole Boxes



Manhole boxes, also known as manhole shields, are specialized trench boxes designed for projects that involve the construction or repair of manholes. These boxes have a unique configuration that allows for the installation of a manhole structure within the protected area.



Manhole boxes typically feature a square or rectangular shape with open ends, allowing pipes to pass through the box and connect to the manhole. They provide a safe working environment for crews installing or repairing manholes, ensuring protection from cave-ins and falling debris.



Drag Boxes and Rolling Strut Boxes



Drag boxes and rolling strut boxes are designed for projects that require continuous excavation, such as pipeline installations or utility trenches. These boxes are equipped with features that allow them to be easily moved along the trench as the excavation progresses.



Drag boxes have skids or runners attached to the bottom, enabling them to be dragged along the trench using an excavator or other equipment. Rolling strut boxes, on the other hand, have wheels or rollers that allow for smooth movement along the trench.



These types of boxes eliminate the need for frequent lifting and repositioning, streamlining the excavation process and reducing downtime. They are particularly useful for projects that involve long, linear trenches.



By familiarizing themselves with the different types of trench boxes available, contractors can make informed decisions about the best trench safety solutions for their projects. Whether it's a standard steel box for deep excavations, a modular aluminum box for flexibility, a manhole box for specialized applications, or a drag box for continuous trenching, each type offers unique advantages to ensure worker safety and project efficiency.



Trench Box Sizes and Configurations



Trench boxes are available in a wide range of sizes and configurations to accommodate various excavation depths, trench lengths, and project requirements. Understanding the dimensions and customization options can help contractors select the most suitable trench box for their specific needs.



Size Range



Trench boxes come in a variety of sizes to fit different trench dimensions. The typical length of a trench box can range from 6 feet to 40 feet, allowing for protection in both short and extended excavations. The width of the box is determined by the length of the spreader bars, which can be adjusted to accommodate different trench widths.



The height of trench boxes typically ranges from 4 feet to 10 feet, providing ample clearance for workers to perform their tasks safely. The height of the box selected will depend on the depth of the excavation and the specific requirements of the project.



Dimension	Typical Range
Length	6 - 40 feet
Width	Varies based on spreader bar length
Height	4 - 10 feet



Stacking for Deeper Excavations



For excavations that exceed the height of a single trench box, contractors can stack multiple boxes on top of each other to provide continuous protection. Stacking trench boxes is a common practice in deep excavations, such as those required for underground utility installations or foundation work.



When stacking trench boxes, it is crucial to ensure proper alignment and secure connection between the boxes. Manufacturers provide specific guidelines and accessories, such as stacking pins or latches, to facilitate safe and stable stacking configurations.



Modular Customization



Modular trench boxes, particularly those made of aluminum, offer a high degree of customization to suit specific project needs. These boxes consist of individual panels and adjustable spreaders that can be assembled in various configurations.



Contractors can choose from a range of panel sizes and spreader lengths to create a trench box that precisely fits the dimensions of the excavation. This flexibility allows for optimized protection and efficient use of space within the trench.



Modular systems also enable the creation of unique configurations, such as L-shaped or T-shaped boxes, to accommodate intersecting trenches or special excavation layouts. The ability to customize the box configuration on-site saves time and effort compared to using fixed-size boxes that may not perfectly fit the trench dimensions.



By selecting the appropriate trench box size and configuration, contractors can ensure optimal protection for their workers while maximizing efficiency on the job site. Whether it's a standard-size box for a straightforward excavation, stacked boxes for deep trenches, or a modular system for customized configurations, the versatility of trench boxes allows for adaptability to various project requirements.



Trench Box Uses and Applications



Trench boxes are essential safety equipment for a wide range of excavation and construction projects. These versatile protective systems are employed in various applications to ensure worker safety and facilitate efficient excavation processes. Let's explore some of the common uses and applications of trench boxes in the construction industry.



Utility Line and Pipeline Installation and Repair



One of the primary applications of trench boxes is in the installation and repair of utility lines and pipelines. These projects often require deep, narrow trenches to accommodate the placement of pipes, cables, and other underground utilities. Trench boxes provide the necessary protection for workers as they perform tasks such as:



- Laying water, gas, and sewer pipes

- Installing electrical and telecommunications cables

- Repairing damaged or aging utility lines



By using trench boxes, crews can work safely within the trench while maintaining vertical walls, reducing the risk of cave-ins and ensuring the stability of the surrounding soil.



Building Foundation Excavation



Trench boxes also play a crucial role in the excavation of building foundations. When constructing new structures, contractors often need to dig deep trenches to lay the foundation footings and walls. Trench boxes are used to protect workers as they:



- Excavate trenches for strip footings

- Install reinforcing steel and concrete formwork

- Pour concrete for foundation walls



The use of trench boxes allows for efficient excavation and construction processes while prioritizing worker safety in these critical foundation trenches.



Sewer Construction and Manhole Installation



Sewer construction and manhole installation projects are prime candidates for the use of trench boxes. These projects involve deep excavations to install sewer pipes, construct manholes, and connect sewer lines to the main system. Trench boxes, particularly manhole boxes, are employed to:



- Provide a safe working space for sewer pipe installation

- Allow for the construction of manhole structures within the protected area

- Facilitate the connection of sewer laterals to the main line



The specialized design of manhole boxes accommodates the unique requirements of these projects, ensuring worker protection and efficient installation processes.



General Excavation Projects



Trench boxes are used in a wide range of general excavation projects that require vertical trench walls. These projects may include:



- Drainage system installation

- Retaining wall construction

- Landfill cell excavation

- Archeological excavations



Whenever deep, narrow trenches with vertical walls are necessary, trench boxes provide the essential protection and stability needed to ensure worker safety and project efficiency.



By understanding the various uses and applications of trench boxes, contractors can identify opportunities to incorporate these protective systems into their excavation and construction projects. Whether it's installing utility lines, digging building foundations, constructing sewers, or performing general excavation work, trench boxes play a vital role in creating safe and efficient work environments.



Advantages of Using Trench Boxes



Trench boxes offer numerous advantages that make them an essential component of safe and efficient excavation projects. By incorporating trench boxes into their safety plans, contractors can:



1. Improve worker safety: Trench boxes significantly reduce the risk of trench collapse injuries and fatalities by providing a protected working space within the excavation.



2. Increase efficiency: By minimizing the need for sloping or benching, trench boxes allow for faster excavation and project completion. They enable contractors to maintain vertical trench walls, reducing the overall excavation area and the amount of soil that needs to be removed.



3. Save costs: The increased efficiency and reduced excavation requirements associated with trench box usage can lead to significant cost savings. Contractors can minimize the time and resources spent on soil removal, transportation, and backfilling.



4. Ensure versatility: Trench boxes are available in various sizes and configurations, making them suitable for a wide range of trench depths, lengths, and project requirements. They can be easily adapted to different soil conditions and excavation challenges.



OSHA Regulations and Safety Considerations



To ensure the safe and compliant use of trench boxes, contractors must adhere to OSHA regulations and implement appropriate safety measures. Key considerations include:



- OSHA standards: Trench boxes must meet OSHA requirements for shoring and worker protection. Contractors should familiarize themselves with OSHA's excavation safety standards (29 CFR 1926 Subpart P) and ensure their trench boxes comply with these regulations.



- Manufacturer's tabulated data: Each trench box comes with manufacturer-provided tabulated data that specifies its maximum depth, allowable lateral earth pressure, and other critical information. Contractors must follow these guidelines to ensure the trench box is used within its designed capacity.



- Combination with other protective systems: In some cases, trench boxes may need to be used in conjunction with other protective systems, such as sloping or shoring, to provide comprehensive protection. Contractors should assess the specific excavation conditions and determine the appropriate combination of safety measures.



- Regular inspections: OSHA requires regular inspections of the trench and protective systems by a competent person. These inspections should be conducted daily, before the start of work, and after any event that could affect the trench's stability, such as heavy rain or equipment movement near the edge.



Best Practices for Trench Box Installation



To maximize the effectiveness and safety of trench boxes, contractors should follow these best practices during installation:



1. Pre-excavation planning and soil analysis: Before beginning excavation, contractors should conduct a thorough site assessment and soil analysis. This information helps determine the appropriate trench box size, configuration, and installation method based on the soil type, water table, and other factors.



2. Placement methods: Trench boxes can be placed in an excavated trench using a crane or excavator, or they can be installed using the "dig and push" technique, where the box is gradually lowered as the excavation progresses. The choice of placement method depends on the specific project conditions and equipment availability.



3. Adequate trench width: When installing a trench box, contractors must ensure that the trench is wide enough to accommodate the box panels and allow for proper installation. The trench width should also account for the size of the excavator bucket used for soil removal.



4. Stacking and securing: For deeper excavations, trench boxes can be stacked on top of each other to provide continuous protection. Contractors must follow the manufacturer's guidelines for proper stacking and secure the boxes together using the provided connection points and accessories.



Renting vs. Buying Trench Boxes



When it comes to acquiring trench boxes, contractors have the option to either rent or purchase them. The decision depends on several factors, including:



- Project duration and frequency: For short-term or infrequent projects, renting trench boxes can be more cost-effective than purchasing. However, for contractors who regularly perform trench work, owning trench boxes may be more economical in the long run.



- Maintenance and storage: Owning trench boxes requires ongoing maintenance and storage facilities. Renting allows contractors to avoid these responsibilities and associated costs.



- Customization and availability: Purchasing trench boxes gives contractors the flexibility to choose specific sizes and configurations that suit their typical project needs. Renting may limit the available options, but it also provides access to a wider range of trench box types for unique project requirements.



- Used trench boxes: For contractors looking to purchase trench boxes, the option to buy used equipment can provide cost savings compared to new boxes. However, it's crucial to thoroughly inspect used trench boxes and ensure they meet safety standards before making a purchase.



Ultimately, the decision to rent or buy trench boxes depends on a contractor's specific business needs, project requirements, and financial considerations. By carefully evaluating these factors, contractors can make an informed choice that optimizes safety, efficiency, and cost-effectiveness.



Conclusion



Trench boxes are essential safety devices used in excavation and construction projects to protect workers from dangerous trench collapses. By providing a sturdy, temporary protective structure, trench boxes enable crews to work efficiently in deep, narrow trenches while minimizing the risk of cave-ins.



Prioritizing worker safety should be the primary focus when using trench boxes in excavation projects. Contractors must adhere to OSHA regulations, follow manufacturer guidelines, and implement best practices for trench box installation and use.



To ensure compliance and maximize the benefits of trench boxes, readers are encouraged to further research OSHA standards and industry best practices. By doing so, they can create safer, more efficient work environments and protect their most valuable asset - their workers.



Frequently asked questions about trench boxes

1. What is a trench box?



A trench box, also known as a trench shield, is a protective system used in excavation projects to prevent cave-ins and protect workers from falling materials. It consists of two parallel walls connected by spreader bars, creating a safe working space within the trench.



2. When should trench boxes be used?



Trench boxes should be used when excavating trenches deeper than 5 feet or in unstable soil conditions. They are required by OSHA regulations to protect workers from the hazards of trench collapses and falling debris.



3. What materials are trench boxes made of?



Trench boxes are typically made of steel or aluminum. Steel trench boxes are stronger and more durable, suitable for deep excavations and challenging soil conditions. Aluminum trench boxes are lighter and easier to handle, ideal for shallower trenches and more frequent repositioning.



4. Can trench boxes be stacked?



Yes, trench boxes can be stacked on top of each other to provide continuous protection in deeper excavations. Manufacturers provide specific guidelines and accessories for safe and secure stacking of trench boxes.



5. How do you install a trench box?



Trench boxes can be installed by placing them in a pre-excavated trench using a crane or excavator, or by using the "dig and push" method, where the box is gradually lowered as the excavation progresses. The installation method depends on the project conditions and available equipment.



6. Can trench boxes be used with other protective systems?



Yes, trench boxes can be used in combination with other protective systems, such as sloping or shoring, when necessary. The specific combination of safety measures depends on the excavation conditions and OSHA requirements.



7. How do you choose the right size trench box?



The right size trench box depends on the depth and width of the trench, as well as the soil conditions. Manufacturers provide tabulated data specifying the maximum depth and allowable lateral earth pressure for each trench box size. Contractors should consult this data and consider factors such as the excavation dimensions, soil type, and project requirements when selecting a trench box.
