High Efficiency H20 Timber Beam Formwork For Concrete Construction

The High Efficiency H20 Timber Beam Formwork For Concrete Construction by Lianggong is designed for various concrete projects.It is ideal for wall, slab, and column formwork applications, providing strength and efficiency.

The formwork features a plywood web and solid spruce flange to ensure durability and stability. With a height of 200mm and a weight of 4.5kg/m, it is lightweight and easy to handle.

Lengths range from 1.5m to 5.9m to meet a variety of construction needs. The edges are made of Nordic spruce and treated with a yellow waterproof coating to extend service life.

The formwork is certified to SGS and CE standards and offers 23.9kN shear force, 47.8kN load capacity and 10.9 Knm bending strength. WBP glue ensures reliable bonding under demanding conditions.

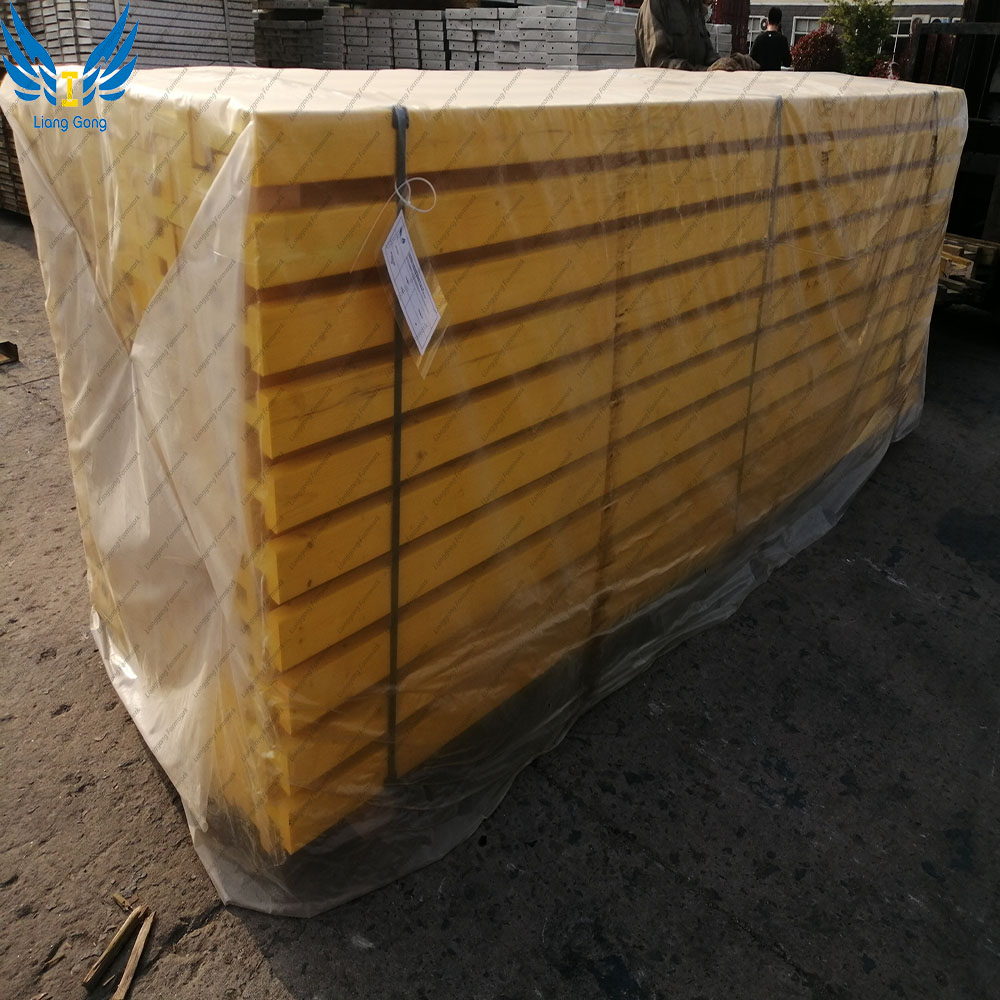

The formwork is packaged in pallets with a monthly output of 50,000 meters, suitable for large projects.

Product Parameters

Features of High Efficiency H20 Timber Beam Formwork For Concrete Construction

Durable Materials: Made with plywood webs and solid spruce flanges for strength and long-term performance.

Waterproof Coating: Yellow waterproof coating protects beams from moisture, ensuring extended service life.

Lightweight Design: With a weight of 4.5kg/m, it is easy to handle and transport.

Versatile Sizes: Available in lengths from 1.5m to 5.9m with a standard height of 200mm.

Certified Quality: Meets SGS and CE standards for reliability and safety.

High Structural Capacity: Provides 23.9kN shear force, 47.8kN load capacity and 10.9 Knm bending strength.

Safe Assembly: Compatible with a wide range of formwork systems, ensuring seamless integration.

Advatages of High Efficiency H20 Timber Beam Formwork For Concrete Construction

Reusable Design: Designed for multiple uses, reducing construction waste and costs.

High Load Capacity: Ensures safe and reliable performance under heavy concrete loads.

Environmentally Friendly: Made from sustainably sourced wood, supporting green building practices.

Cost-Effective: Lightweight materials reduce transportation and labor costs.

Durability: Waterproof coating and WBP glue extend service life in harsh environments.

Applications of High Efficiency H20 Timber Beam Formwork For Concrete Construction

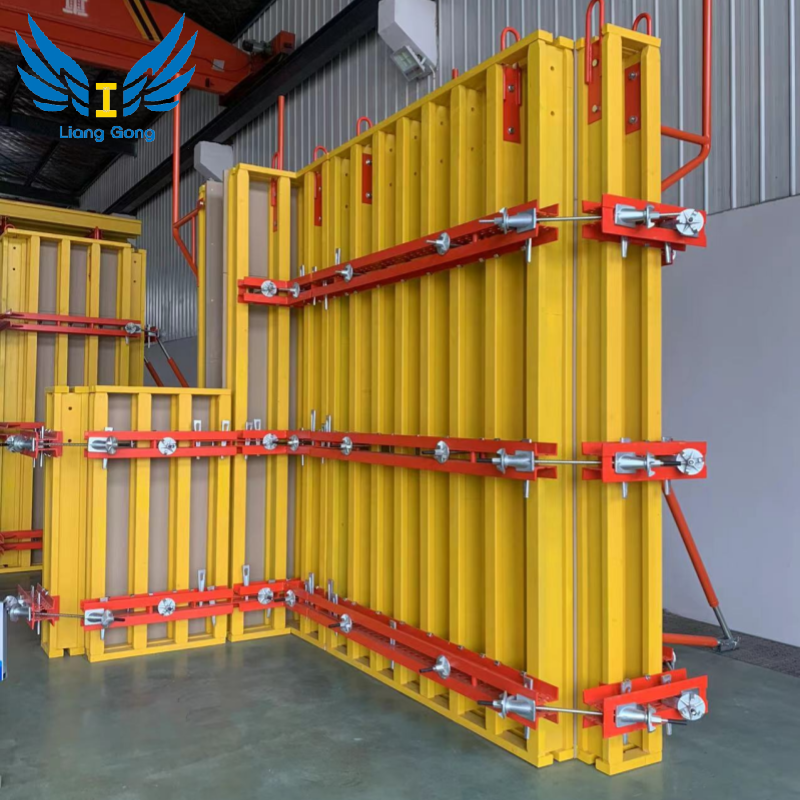

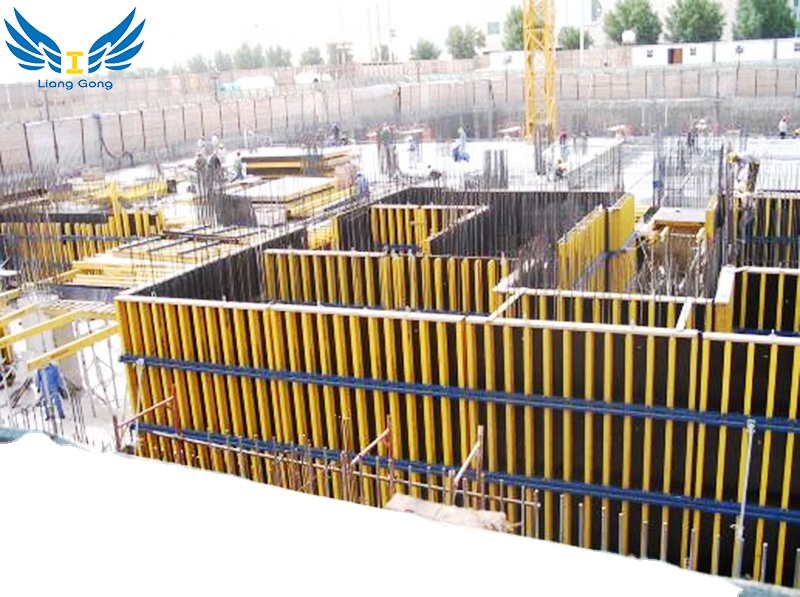

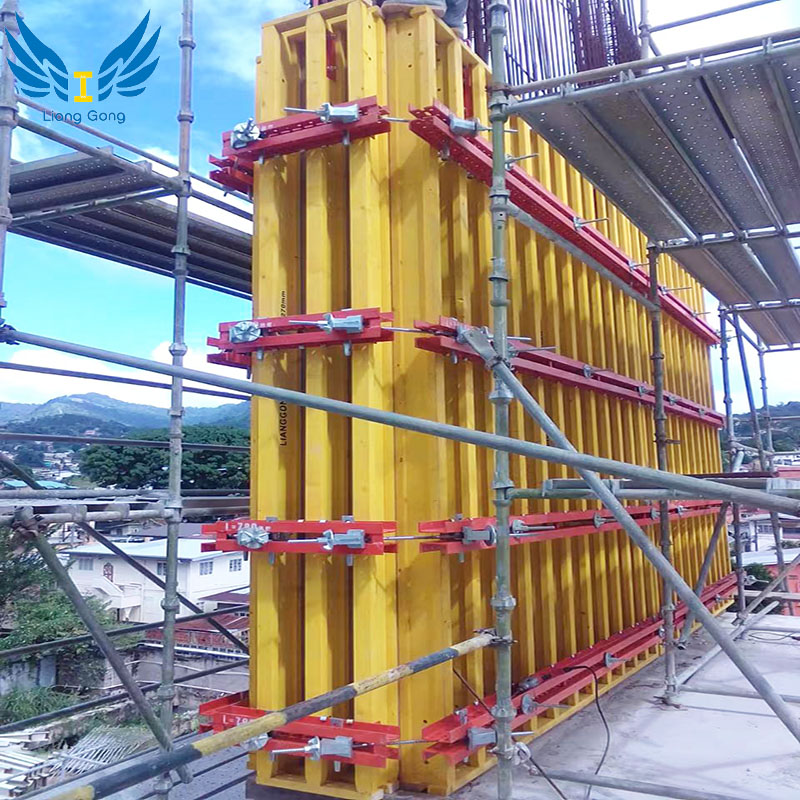

Wall Formwork: For precise and stable construction of vertical concrete walls.

Slab Formwork: For forming a flat concrete surface in residential and commercial buildings.

Column Formwork: Provides structural support to concrete columns during pouring and curing.

Infrastructure Projects: Suitable for bridges, tunnels and other large construction tasks.

FAQs of High Efficiency H20 Timber Beam Formwork For Concrete Construction

1. What materials are used for H20 Timber Beam Formwork?

It is made of plywood web and solid spruce flange.

2. What are the dimensions of H20 Timber Beam Formwork?

The standard height is 200mm and the length ranges from 1.5m to 5.9m.

3. Can the formwork be reused?

Yes, it is designed for multiple uses, reducing waste and cost.

4. How much load can the H20 Timber Beam Formwork withstand?

Its load capacity is 47.8kN and the bending strength is 10.9 Knm.

5. What certifications does the formwork have?

Its quality and reliability are certified by SGS and CE standards.
