What is the formula for timber beam formwork?

Are you struggling with timber beam formwork calculations in your construction project? Many builders find these calculations challenging.



Proper timber beam formwork calculations are crucial for safe and efficient concrete construction. Getting the formulas wrong can lead to costly mistakes.



In this guide, we'll explore essential formulas for timber beam formwork calculations. You'll learn exact dimensions, load calculations, and practical applications for successful formwork design.



Fundamentals of Timber Beam Formwork



Definition and Components



Timber beam formwork serves as a temporary support structure for concrete during construction. It provides the essential framework that shapes and supports concrete until it hardens.



Let's break down the key components:



Core Components:

- Main beams (primary support)

- Cross beams (secondary support)

- Plywood sheets (forming surface)

- Support props (vertical support)

- Connection hardware



Two main types of timber beams dominate the market:



1. H20 Timber Beams

   - Most commonly used

   - Double T-section design

   - Lightweight yet durable

   - Protected with plastic end caps



2. GF24 Beams

   - Higher load capacity

   - Lattice girder structure

   - Suitable for heavy-duty applications

   - Enhanced durability



Standard Dimensions



Understanding standard dimensions helps you plan your formwork effectively. Here's what you need to know:



H20 Beam Standard Specifications:



Dimension	Measurement
Height	200mm (±0.5mm)
Chord Width	80mm
Chord Height	40mm
Standard Lengths	1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m



Important Tolerances:

- Height variation: ±0.5mm

- Width variation: ±1mm

- Length variation: ±5mm



Material Requirements:

- High-grade pine or spruce timber

- Waterproof phenolic adhesive

- UV-resistant coating

- Protective end caps



These standardized dimensions ensure compatibility across different formwork systems. They make planning and assembly more straightforward for construction teams.



The Formula for Timber Beam Formwork Calculations



Basic Calculation Principles



Let's start with the fundamental formulas you'll need for timber beam formwork calculations:



Surface Area Calculations:



Total Area = 2(d) + b + 0.10

Where:

d = length of vertical side

b = bottom form width

0.10 = lapping allowance



Key Area Calculations:

- Side faces: Length × Height

- Bottom face: Length × Width

- Total formwork area: (2 × Side faces) + Bottom face



Volume and Load Capacity:



Load Capacity = (F × Ic) / y

Where:

F = allowable stress

Ic = moment of inertia

y = distance from neutral axis



Load Calculations



Understanding load calculations is crucial for safe formwork design:



Dead Load Formula:

DL = Weight of formwork + Weight of wet concrete





Live Load Considerations:



Load Type	Calculation Factor
Workers	75 kg/m²
Equipment	150 kg/m²
Impact	10% of total load



Concrete Pressure:



P = ρgh

Where:

ρ = density of concrete

g = gravitational acceleration

h = height of pour



Safety Factor Applications:

- Multiply calculated loads by 1.5 for general use

- Use 2.0 factor for critical applications

- Add 15% for dynamic loads



Support Spacing Calculations



Here's how to determine proper support spacing:



Maximum Span Formula:



Max Span = √(4EI/w)

Where:

E = modulus of elasticity

I = moment of inertia

w = distributed load



Support Interval Guidelines:

- Primary beams: 1.2m - 1.8m spacing

- Secondary beams: 0.3m - 0.5m spacing

- Props: According to calculated load



Deflection Check:



Allowable Deflection = Span/360

Maximum Deflection = (5wL⁴)/(384EI)



Pro Tips:

- Always round down to the nearest practical spacing

- Consider local building codes

- Add extra supports at joints and edges

- Monitor deflection during concrete pouring



These formulas provide the foundation for safe and efficient formwork design. Adjust them based on your specific project requirements.



Essential Design Factors



Adjustment Factors



When designing timber beam formwork, we must consider several adjustment factors to ensure structural integrity:



Load Duration Factors:



Duration	Factor
> 10 years	0.9
2 months - 10 years	1
< 7 days	1.25
Wind/earthquake	1.6
Impact	2.2



Moisture Content Adjustments:

- Below 19%: Standard calculations apply

- 19-30%: Multiply strength by 0.85

- Above 30%: Consult an engineer



Temperature Considerations:



Temperature Factor = 1 - (0.01 × °C above 20°)

Apply when temperatures exceed 20°C





Environmental Exposure:

- Indoor use: Standard factors

- Outdoor exposed: Add 15% safety margin

- Wet conditions: Add 25% safety margin



Safety Considerations



Safety is paramount in formwork design. Here's what you need to monitor:



Essential Safety Calculations:



Working Load = Ultimate Load / Safety Factor

Where:

Safety Factor = 2.0 for formwork elements

Safety Factor = 3.0 for support systems



Load Limitations Chart:



Component	Maximum Load
H20 Beam	40 kN/m²
Cross Beams	30 kN/m²
Props	20 kN/unit



Support System Requirements:

- Primary supports every 1.2m

- Secondary supports every 0.4m

- Diagonal bracing at 45°

- Extra support at concrete pour points



Quality Control Checklist:

- [ ] Check all connections

- [ ] Verify prop spacing

- [ ] Inspect beam condition

- [ ] Measure deflection

- [ ] Document load tests

- [ ] Monitor during pour



Pro Safety Tips:

1. Always double-check calculations

2. Install backup supports

3. Regular inspection schedules

4. Document all modifications

5. Train workers properly



Practical Application Guide

Step-by-Step Calculation Process



Let's walk through the essential calculations you'll need for timber beam formwork:



Area Calculation Steps:

1. Calculate Basic Area



Perimeter = 2(a + b) + 0.20

Where:

a = shorter side

b = longer side

0.20 = lapping allowance



2. Determine Total Surface Area



Total Area = Perimeter × Height

Add 10% for wastage



Load Calculation Procedure:

1. Calculate Dead Loads

   - Formwork weight

   - Concrete weight

   - Additional fixtures



2. Add Live Loads

   - Labor force (75 kg/m²)

   - Equipment weight

   - Dynamic forces



Support Spacing Guide:



Beam Type	Maximum Spacing
Primary	1.5m - 1.8m
Secondary	0.4m - 0.6m
Props	0.9m - 1.2m



Verification Checklist:

- [ ] Check all measurements

- [ ] Verify load calculations

- [ ] Confirm support spacing

- [ ] Test stability

- [ ] Document results



Common Applications



Here's how to apply these calculations in different scenarios:



Wall Formwork:



Wall Area = Length × Height

Number of Supports = Wall Length / 1.2m

```

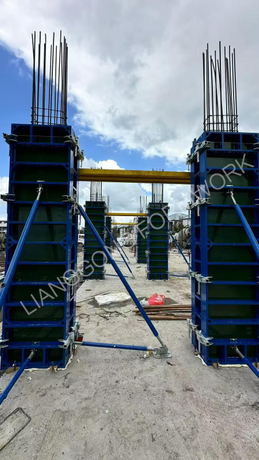

Column Formwork:



Column Area = Perimeter × Height + 0.20

Where:

0.20 = overlap allowance

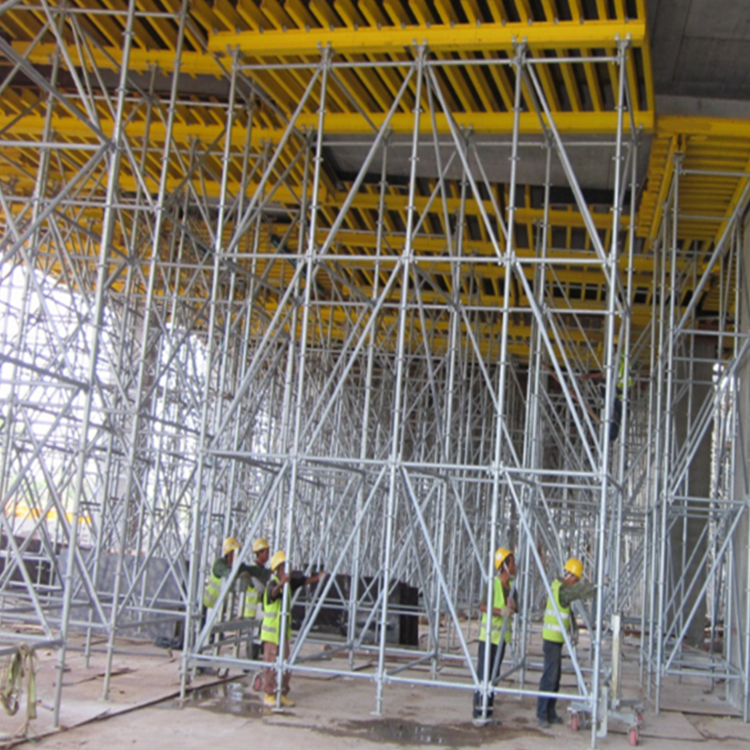

Slab Formwork:



Total Load = Area × (Concrete Weight + Live Load)

Beam Spacing = √(4EI/Total Load)



Beam Formwork:



Form Area = 2(d) + b + 0.10

Where:

d = depth of beam

b = width of beam

0.10 = joint allowance



Quick Reference Table:



Element	Safety Factor	Max Load	Min Support
Walls	1.5	40 kN/m²	1.2m
Columns	2	50 kN/m²	0.9m
Slabs	1.8	35 kN/m²	0.6m
Beams	2	45 kN/m²	0.4m



Best Practices and Optimization



Design Optimization



Let's explore how to maximize efficiency in your timber beam formwork project:



Material Efficiency Strategies:

- Choose standard beam lengths to minimize waste

- Optimize beam spacing for material usage

- Plan reuse cycles for each component



Cost-Saving Matrix:



Strategy	Potential Savings
Standard sizes	15-20%
Optimal spacing	10-15%
Proper maintenance	25-30%
Planned reuse	40-50%



Labor Optimization Tips:

1. Pre-assembly when possible

2. Standardize connection methods

3. Use modular components

4. Train crews effectively



Reusability Guidelines:

- Clean forms after each use

- Store properly between uses

- Inspect before reuse

- Track usage cycles



Installation and Maintenance



Installation Steps:

1. Mark layout points

2. Set primary supports

3. Install main beams

4. Add cross beams

5. Secure all connections



Maintenance Checklist:

- [ ] Daily inspections

- [ ] Weekly cleaning

- [ ] Monthly thorough check

- [ ] Replace damaged parts

- [ ] Document maintenance



Key Inspection Points:



Critical Areas to Check:

- Beam deflection

- Connection points

- Support stability

- Surface condition

- End caps integrity



Safe Removal Process:

1. Wait for concrete strength

2. Loosen supports gradually

3. Remove cross beams

4. Lower main beams

5. Clean immediately



Pro Tips for Longevity:

- Protect from weather when possible

- Apply release agent properly

- Handle with care during transport

- Store in covered areas

- Document usage history



Troubleshooting and FAQs

Common Issues

Let's address the most frequent problems you might encounter with timber beam formwork:



Common Calculation Errors:

Error	Solution
Incorrect area calculation	Double-check perimeter formula: 2(a + b) + 0.20
Load underestimation	Add 15% safety margin to calculated loads
Support spacing errors	Use spacing table for quick reference



Dimensional Problems:



Common Issues:

1. Beam deflection > L/360

2. Incorrect spacing

3. Misaligned supports

4. Improper overlaps



Load-Related Troubleshooting:

- Excessive deflection: Add intermediate supports

- Uneven loading: Redistribute support spacing

- Overloading: Check against maximum load table

- Support failure: Verify safety factors



Safety Red Flags:

- Visible bending in beams

- Loose connections

- Unstable supports

- Cracked components



Frequently Asked Questions



Q: How do I calculate the correct timber beam spacing?

A: Use the formula: Maximum Spacing = √(4EI/w). For H20 beams, typical spacing is 0.4m to 0.6m.



Q: What are standard H20 beam dimensions?

A: Height: 200mm, Width: 80mm, Lengths: 1.8m to 5.9m.



Q: How often should we inspect formwork?

A: Daily visual checks, weekly thorough inspections, and before each concrete pour.



Q: What's the maximum safe load for H20 beams?

A: Standard H20 beams can handle 40 kN/m² with proper support spacing.



Quick Reference Guide:

- Minimum support spacing: 0.4m

- Maximum span: 1.8m

- Safety factor: 2.0

- Load duration factor: 1.25 for short-term loads



Maintenance Tips:

1. Clean after each use

2. Store in dry conditions

3. Replace damaged parts immediately

4. Document maintenance history



Conclusion



Understanding timber beam formwork formulas is crucial for safe and efficient construction projects. We've covered essential calculations and standard dimensions.



Remember these key points: always verify your measurements, follow safety guidelines, and maintain proper documentation. Regular inspections help prevent costly mistakes.



The future of timber beam formwork lies in sustainable materials and advanced calculation software. Stay updated with industry standards.
