How do you calculate steel formwork?

I. Introduction



Steel formwork is a crucial component in modern construction, providing the mold into which concrete is poured to create structural elements. It's a temporary structure designed to contain and shape wet concrete until it hardens sufficiently to maintain its form. The importance of accurate formwork calculation cannot be overstated, as it directly impacts the quality, safety, and efficiency of construction projects.



Steel formwork has gained popularity over traditional wooden formwork due to several advantages:



1. Durability: Steel formwork can be reused multiple times, making it cost-effective for large-scale projects.

2. Precision: It provides smoother concrete finishes and more accurate dimensions.

3. Strength: Steel can withstand higher concrete pressures, allowing for faster pouring rates.

4. Fire resistance: Unlike wooden formwork, steel doesn't pose a fire hazard on construction sites.

5. Sustainability: The reusability of steel formwork reduces waste in construction.



Accurate calculation of steel formwork is essential for several reasons:



- Structural integrity: Properly calculated formwork ensures that the concrete structure maintains its intended shape and strength.

- Cost efficiency: Accurate calculations prevent over-ordering of materials and reduce waste.

- Safety: Correctly designed formwork can withstand the pressures of wet concrete, reducing the risk of formwork failure.

- Project timeline: Efficient formwork design and calculation can speed up the construction process.



In this article, we will explore the intricacies of calculating steel formwork, with a particular focus on wall formwork. We'll cover the basics, delve into specific calculation methods, and discuss advanced techniques and applications. Whether you're a construction professional or a student of civil engineering, this comprehensive guide will enhance your understanding of steel formwork calculation.



II. Understanding Steel Formwork Basics



Before diving into the calculations, it's crucial to understand the fundamental components and types of steel formwork. This knowledge forms the foundation for accurate formwork design and calculation.



A. Components of steel formwork



1. Panels: These are the main elements that come into direct contact with the concrete. Steel panels are typically made from cold-rolled or hot-rolled steel sheets, designed to withstand the pressure of wet concrete.



2. Ties: These are tension members that hold the formwork panels together against the lateral pressure of concrete. They're usually made of high-strength steel and are removable or remain embedded in the concrete.



3. Wedges: Used in conjunction with ties, wedges provide a quick and efficient way to tighten and loosen the formwork system.



4. Reinforcement elements: These include walers, strongbacks, and braces that provide additional support to the formwork, ensuring it maintains its shape under load.



B. Types of steel formwork



1. Wall steel formwork: This is the primary focus of our article. Wall formwork is designed to create vertical concrete surfaces and can be adapted for various wall thicknesses and heights.



2. Column formwork: Used for creating vertical concrete columns, these can be rectangular, square, or circular in cross-section.



3. Slab formwork: This type supports horizontal concrete elements like floors and ceilings.



4. Beam formwork: Designed to create horizontal or inclined concrete beams.



C. Safety considerations for steel formwork



Safety is paramount when working with steel formwork. Key considerations include:



- Proper assembly and bracing to prevent collapse

- Regular inspection for damage or wear

- Adequate access for workers during pouring and striking

- Consideration of environmental factors like wind loads

- Proper training for workers handling formwork



Understanding these basics is essential for anyone involved in calculating and designing steel formwork. In the next section, we'll delve into the principles of formwork calculation, which build upon this foundational knowledge.



III. Principles of Formwork Calculation



Calculating steel formwork accurately involves several key principles. These principles ensure that the formwork can safely and effectively contain the concrete while maintaining the desired shape and dimensions of the final structure.



A. Surface area calculation



The first step in formwork calculation is determining the surface area of the concrete that needs to be contained. This varies depending on the type of structural element:



- For walls: Area = Length × Height

- For columns: Area = Perimeter × Height

- For slabs: Area = Length × Width

- For beams: Area = (2 × Depth + Width) × Length



It's important to note that these are basic calculations and may need to be adjusted for more complex shapes or when accounting for openings like windows and doors.



B. Pressure considerations



Concrete exerts significant pressure on formwork, especially during pouring. This pressure is not uniform and varies with depth. The maximum pressure typically occurs at the bottom of the form. The pressure can be calculated using the following formula:



P = γ × h



Where:

P = Pressure

γ = Unit weight of concrete (typically around 2400 kg/m³)

h = Height of concrete



For walls higher than about 4 meters, the maximum pressure may be less than the full hydrostatic pressure due to the initial setting of concrete at the bottom.



C. Load-bearing capacity



The formwork must be designed to withstand not only the pressure of the concrete but also other loads such as:



- Weight of the formwork itself

- Weight of workers and equipment

- Impact loads from concrete placement

- Wind loads (for tall structures)



The total load-bearing capacity required is the sum of all these factors, with an appropriate safety factor applied.



D. Reusability factor



One of the advantages of steel formwork is its reusability. However, this needs to be factored into calculations:



- The number of reuses affects the cost-effectiveness of the formwork

- Repeated use may lead to wear and slight deformations, which need to be accounted for in precision calculations

- The ease of cleaning and maintaining the formwork between uses should be considered



By applying these principles, engineers and construction professionals can ensure that their steel formwork calculations are accurate and comprehensive. In the next section, we'll focus specifically on calculating steel formwork for walls, one of the most common applications in construction.



IV. Calculating Steel Formwork for Walls



Wall formwork is one of the most common applications of steel formwork in construction. Accurate calculation of wall formwork is crucial for ensuring structural integrity and optimizing material usage. Let's break down the process of calculating steel formwork for walls.



A. Measuring wall dimensions



The first step in calculating wall formwork is to accurately measure the dimensions of the wall:



1. Length: The horizontal extent of the wall

2. Height: The vertical extent from the base to the top of the wall

3. Thickness: The depth of the wall from one face to the other



These measurements should be taken from the architectural or structural drawings, with any necessary site verifications.



B. Formula for wall formwork area



The basic formula for calculating the area of wall formwork is:



Area = 2 × (Length × Height) + 2 × (Thickness × Height)



This formula accounts for both faces of the wall (hence the multiplication by 2) and the edges of the wall (represented by the thickness).



For example, if we have a wall that is 10 meters long, 3 meters high, and 0.3 meters thick, the calculation would be:



Area = 2 × (10 × 3) + 2 × (0.3 × 3)

    = 60 + 1.8

    = 61.8 square meters



C. Adjustments for openings



In most walls, there will be openings for windows, doors, or other purposes. These need to be subtracted from the total formwork area:



Adjusted Area = Total Wall Area - Area of Openings



For each opening, calculate its area and subtract it from the total. Remember that the edges of openings often require additional formwork, so these should be added back in.



D. Considering overlap and waste



In practice, formwork panels don't fit perfectly to the wall dimensions. There will be overlaps where panels meet, and some waste where panels need to be cut to fit. A common practice is to add 5-10% to the calculated area to account for these factors:



Final Formwork Area = Adjusted Area × 1.05 to 1.10



E. Additional considerations



- Corner treatments: Corners may require special formwork pieces or adjustments.

- Tie spacing: The number and spacing of ties should be calculated based on the concrete pressure and formwork strength.

- Bracing requirements: Additional bracing may be needed for tall or long walls.



By following these steps, you can accurately calculate the amount of steel formwork required for wall construction. This process ensures that you order the right amount of materials, optimizing costs and reducing waste. In the next section, we'll look at specialized calculations for other structural elements.



V. Specialized Calculations for Other Structural Elements



While wall formwork is common, other structural elements require specialized formwork calculations. Let's explore how to calculate steel formwork for columns, slabs, beams, and footings.



A. Column formwork calculation



Columns are vertical structural elements that often require specialized formwork. The calculation for column formwork depends on the shape of the column:



1. For rectangular or square columns:

   Area = 4 × Width × Height



2. For circular columns:

   Area = π × Diameter × Height



Remember to add extra for the base of the column if it's not being poured as part of a slab.



B. Slab formwork calculation



Slab formwork calculations are relatively straightforward:



Area = Length × Width



However, you need to account for:

- Edge formwork: Perimeter × Depth of slab

- Support structures: Beams, joists, and props needed to support the weight of the wet concrete



C. Beam formwork calculation



Beam formwork requires calculations for three sides (two sides and the bottom), as the top is typically left open for pouring:



Area = (2 × Depth + Width) × Length



Don't forget to account for the intersection of beams with columns or walls.



D. Footing formwork calculation



Footing formwork varies depending on the type of footing:



1. For simple square footings:

   Area = 4 × Width × Depth



2. For stepped footings, calculate each step separately and sum the results.



Remember to account for any sloping sides in spread footings.



By understanding these specialized calculations, you can accurately determine the steel formwork requirements for various structural elements in your construction project. In the next section, we'll discuss the factors that can affect these calculations and how to account for them.



VI. Factors Affecting Steel Formwork Calculations



While the basic calculations for steel formwork are straightforward, several factors can affect the final design and quantity of formwork required. Understanding and accounting for these factors is crucial for accurate and safe formwork implementation.



A. Concrete pressure



The pressure exerted by wet concrete is one of the most significant factors affecting formwork design:



- Lateral pressure increases with the depth of the pour

- The rate of pouring affects pressure (faster pours create higher pressure)

- Concrete mix design (e.g., slump, aggregate size) influences pressure

- Temperature affects setting time and thus pressure duration



Formwork must be designed to withstand the maximum expected pressure, which typically occurs at the bottom of the form.



B. Wind loads



For tall structures or in areas with high wind speeds, wind load becomes a critical factor:



- Wind can create additional lateral pressure on the formwork

- Uplift forces need to be considered, especially for large horizontal surfaces

- Wind loads may require additional bracing or tie-downs



Wind loads should be calculated based on local building codes and weather data.



C. Temperature variations



Temperature can affect formwork in several ways:



- Extreme temperatures can cause expansion or contraction of steel formwork

- Cold weather can delay concrete setting, prolonging pressure on the formwork

- Hot weather can accelerate setting, potentially leading to premature formwork removal



Temperature effects should be considered in the formwork design and concrete pour schedule.



D. Formwork assembly and disassembly time



The time required for assembly and disassembly of formwork can impact project schedules and costs:



- Complex designs may require more time for assembly and disassembly

- Repetitive elements can speed up the process through familiarity and potential for modular designs

- The skill level of the workforce affects assembly and disassembly time



These factors should be considered when choosing between different formwork systems or designs.



E. Concrete finish requirements



The desired finish of the concrete surface can influence formwork selection and design:



- Smooth finishes require high-quality, well-maintained formwork surfaces

- Textured finishes may require specialized form liners

- Architectural concrete may have stringent requirements for form joints and tie hole patterns



F. Site conditions



Local site conditions can significantly impact formwork calculations:



- Limited access may restrict the size of formwork panels that can be used

- Soil conditions may affect the stability of shores and braces

- Proximity to other structures may limit workspace and affect formwork design



By carefully considering these factors, engineers and construction professionals can refine their steel formwork calculations to ensure safe, efficient, and cost-effective formwork designs. In the next section, we'll explore the tools and technologies available to assist in these complex calculations.



VII. Tools and Technologies for Steel Formwork Calculation



The complexity of steel formwork calculation has led to the development of various tools and technologies to assist engineers and construction professionals. These range from simple spreadsheets to advanced software integrated with Building Information Modeling (BIM) systems.



A. Traditional manual calculations



While less common today, manual calculations using formulas and tables are still used, especially for simple projects or quick estimates. These typically involve:



- Basic arithmetic for area and volume calculations

- Reference to standard tables for concrete pressures and formwork capacities

- Use of safety factors to account for uncertainties



Manual calculations require a thorough understanding of formwork principles and can be time-consuming for complex structures.



B. Spreadsheet-based calculators



Spreadsheets offer a step up from manual calculations, allowing for:



- Quick calculations for multiple elements

- Easy adjustment of variables

- Basic error checking and formula validation

- Creation of custom templates for different types of formwork



Many construction companies have developed their own spreadsheet tools tailored to their specific needs and formwork systems.



C. Specialized formwork calculation software



Several software packages are designed specifically for formwork calculation:



- These often include libraries of standard formwork components

- They can perform complex pressure and load calculations

- Many offer 2D or 3D visualization of formwork layouts

- Some include cost estimation features



Examples include PERI CAD, Doka Tipos, and MEVA CAD.



D. BIM integration for formwork planning



Building Information Modeling (BIM) has revolutionized construction planning, including formwork design:



1. 4D BIM for scheduling:

   - Allows visualization of formwork installation and removal sequences

   - Helps identify potential conflicts in formwork use across different parts of the project

   - Enables optimization of formwork reuse and cycling



2. 5D BIM for cost estimation:

   - Integrates formwork quantities with cost data

   - Allows quick comparison of different formwork strategies

   - Facilitates accurate budgeting and cost control



BIM-integrated formwork planning can significantly improve project efficiency and reduce errors.



E. Advanced simulation tools



For complex projects, advanced simulation tools may be employed:



- Finite Element Analysis (FEA) for structural analysis of formwork under load

- Computational Fluid Dynamics (CFD) for modeling concrete flow and pressure

- Virtual Reality (VR) for training and visualization of complex formwork assemblies



These tools can provide insights that are difficult or impossible to obtain through traditional methods.



By leveraging these tools and technologies, construction professionals can significantly improve the accuracy, efficiency, and safety of their steel formwork calculations. The choice of tool depends on the project complexity, available resources, and specific requirements of the construction team. In the next section, we'll explore strategies for optimizing steel formwork usage.



VIII. Optimizing Steel Formwork Usage



Optimizing the use of steel formwork can lead to significant cost savings, improved efficiency, and enhanced safety on construction projects. Here are some key strategies for maximizing the benefits of steel formwork:



A. Modular design principles



Adopting modular design principles can greatly enhance the efficiency of steel formwork:



- Standardize panel sizes where possible to increase interchangeability

- Design structures with repetitive elements to maximize formwork reuse

- Use adjustable components to accommodate small variations in dimensions



Modular design can reduce assembly time, minimize waste, and increase the number of reuses for each formwork component.



B. Standardization of formwork elements



Standardization goes hand-in-hand with modular design:



- Develop a standard set of formwork components for common structural elements

- Create detailed assembly instructions for standard configurations

- Train workers in the efficient assembly and disassembly of standard setups



Standardization reduces errors, speeds up assembly, and makes it easier to estimate material needs for future projects.



C. Proper maintenance and storage



Proper care of steel formwork can significantly extend its lifespan and maintain its quality:



- Clean formwork thoroughly after each use to prevent concrete buildup

- Inspect formwork regularly for damage or wear, and repair or replace as needed

- Apply release agents correctly to facilitate easy removal and protect the formwork surface

- Store formwork in a dry, covered area to prevent rust and weathering



Well-maintained formwork not only lasts longer but also produces better quality concrete surfaces.



D. Efficient formwork cycling strategies



Optimizing the cycling of formwork can dramatically improve project efficiency:



- Plan concrete pours to allow for optimal reuse of formwork

- Use early-strength concrete mixes to allow faster formwork removal where appropriate

- Implement a tracking system to monitor formwork usage and location on site

- Consider using different types of formwork for different stages of the project (e.g., jump forms for core walls)



Efficient cycling can reduce the total amount of formwork needed, lowering costs and reducing on-site storage requirements.



IX. Cost Considerations in Steel Formwork Calculation



While the technical aspects of steel formwork calculation are crucial, cost considerations play a significant role in decision-making. Understanding the economic factors can help in choosing the most cost-effective formwork solution.



A. Initial investment vs. long-term savings



Steel formwork typically requires a higher upfront investment compared to traditional timber formwork. However, it offers significant long-term savings:



- Steel formwork can be reused many more times than timber formwork

- The durability of steel formwork reduces replacement costs over time

- Higher quality finishes can reduce the need for additional surface treatments



When calculating costs, consider the entire project lifecycle and potential for reuse in future projects.



B. Labor costs for assembly and disassembly



Labor costs are a significant factor in formwork expenses:



- Steel formwork often requires less labor for assembly and disassembly than timber formwork

- Modular and standardized systems can further reduce labor time

- Skilled labor may be required for complex steel formwork systems, potentially increasing costs



Factor in local labor rates and the skill level of available workers when estimating costs.



C. Transportation and storage costs



The weight and bulk of steel formwork can impact transportation and storage costs:



- Steel formwork is heavier than timber, potentially increasing transportation costs

- Proper storage facilities may be needed to protect steel formwork from weather damage

- The ability to reuse formwork on-site can reduce transportation needs



Consider the logistics of moving and storing formwork when calculating overall costs.



D. Maintenance and repair expenses



While steel formwork is durable, it does require maintenance:



- Regular cleaning and application of release agents

- Occasional repairs or replacement of damaged components

- Potential need for specialized equipment for maintenance



Include these ongoing costs in your long-term cost calculations.



X. Advanced Steel Formwork Calculation Techniques



As construction projects become more complex, advanced techniques are being employed to optimize steel formwork design and calculation.



A. Finite Element Analysis (FEA) for formwork design



FEA is a powerful tool for analyzing the structural behavior of formwork:



1. Stress and strain analysis:

   - Identify potential weak points in the formwork design

   - Optimize material usage by understanding stress distributions



2. Deflection prediction:

   - Ensure formwork meets deflection limits for high-quality concrete surfaces

   - Predict and mitigate potential formwork failures



3. Optimization of formwork thickness:

   - Determine the optimal thickness of formwork panels to balance strength and weight

   - Reduce material costs while maintaining structural integrity



B. Computational Fluid Dynamics (CFD) for concrete pressure simulation



CFD can provide valuable insights into concrete behavior during pouring:



1. Modeling concrete flow:

   - Predict how concrete will flow within the formwork

   - Identify potential areas of segregation or honeycombing



2. Predicting formwork loads during pouring:

   - Calculate dynamic pressures on formwork during the pour

   - Optimize pour rates and sequences to minimize formwork loads



C. Parametric design for formwork optimization



Parametric design tools allow for rapid iteration and optimization of formwork designs:



1. Automated adjustment of formwork dimensions:

   - Quickly adapt formwork designs to changes in structural dimensions

   - Generate custom formwork solutions for complex geometries



2. Rapid iteration of design options:

   - Explore multiple formwork configurations to find the optimal solution

   - Easily compare different formwork systems for cost and efficiency



D. Machine learning algorithms for formwork performance prediction



Machine learning is beginning to play a role in formwork design and management:



1. Historical data analysis:

   - Predict formwork performance based on data from previous projects

   - Identify factors that contribute to successful formwork implementations



2. Predictive maintenance scheduling:

   - Forecast when formwork components will need maintenance or replacement

   - Optimize the lifespan and safety of formwork systems



These advanced techniques are pushing the boundaries of what's possible in steel formwork design and calculation. They allow for more efficient, safe, and cost-effective formwork solutions, particularly for complex or large-scale projects.



XI. Quality Control and Inspection in Steel Formwork



Ensuring the quality and integrity of steel formwork is crucial for the success of any concrete construction project. A comprehensive quality control and inspection process should be implemented at various stages of formwork use.



A. Pre-pour inspection checklist



Before concrete is poured, a thorough inspection of the formwork should be conducted:



1. Alignment and plumbness verification:

   - Check that formwork is correctly aligned and plumb

   - Verify dimensions against design specifications



2. Tie spacing and tightness checks:

   - Ensure ties are correctly spaced according to calculated pressures

   - Verify that all ties are properly tightened



3. Surface cleanliness and preparation:

   - Check that formwork surfaces are clean and free from debris

   - Verify that release agent has been properly applied



B. During-pour monitoring



Active monitoring during the concrete pour is essential:



1. Concrete pressure measurement:

   - Use pressure sensors to monitor actual concrete pressures

   - Compare with calculated pressures and adjust pour rate if necessary



2. Formwork deflection monitoring:

   - Monitor formwork for any unexpected movement or deflection

   - Be prepared to halt the pour if deflections exceed safe limits



3. Real-time adjustments and interventions:

   - Make minor adjustments to formwork as needed during the pour

   - Be prepared for emergency interventions if issues arise



C. Post-pour evaluation



After the concrete has been poured and set, a post-pour evaluation should be conducted:



1. Surface finish assessment:

   - Evaluate the quality of the concrete surface finish

   - Identify any areas requiring remediation



2. Dimensional accuracy verification:

   - Check the dimensions of the finished concrete against design specifications

   - Identify any deviations that may affect subsequent construction phases



3. Formwork condition assessment for reuse:

   - Inspect formwork for damage or wear after stripping

   - Determine if repairs are needed before reuse



D. Non-destructive testing methods for formwork integrity



To ensure the ongoing integrity of steel formwork, various non-destructive testing methods can be employed:



1. Ultrasonic testing:

   - Detect internal flaws or weaknesses in steel formwork components

   - Assess the thickness of formwork panels to monitor wear



2. Magnetic particle inspection:

   - Identify surface and near-surface cracks in ferromagnetic materials

   - Particularly useful for inspecting welds and high-stress areas



3. Radiographic examination:

   - Detect internal defects in formwork components

   - Useful for complex or thick steel sections



By implementing these quality control and inspection processes, construction teams can ensure the safety, efficiency, and effectiveness of their steel formwork systems. This not only improves the quality of the finished concrete but also extends the lifespan of the formwork itself.



XII. Innovative Applications of Steel Formwork



The field of steel formwork is continually evolving, with innovative applications pushing the boundaries of what's possible in concrete construction. Let's explore some of these cutting-edge applications:

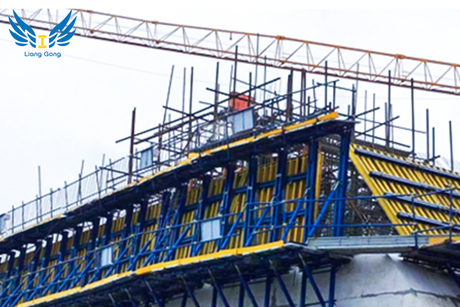

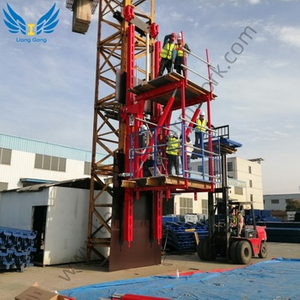

A. Self-climbing formwork systems for high-rise construction



Self-climbing formwork represents a significant advancement in high-rise construction:



1. Hydraulic climbing mechanisms:

   - Allow formwork to "climb" upwards as each floor is completed

   - Reduce crane time and improve construction efficiency



2. Integrated safety platforms:

   - Provide safe working areas at height

   - Often include weather protection for workers



3. Automated leveling and alignment:

   - Ensure perfect alignment of formwork for each new floor

   - Reduce the need for manual adjustments



B. Tunnel formwork for rapid residential construction



Tunnel formwork is revolutionizing residential construction, particularly for projects with repetitive layouts:



1. Modular design for repetitive layouts:

   - Allow for rapid construction of identical units

   - Significantly reduce construction time for large residential projects



2. Integration with MEP systems:

   - Incorporate conduits and fixtures directly into the formwork

   - Streamline the installation of mechanical, electrical, and plumbing systems



3. Cycle time optimization strategies:

   - Enable 24-hour concrete pouring cycles

   - Dramatically speed up construction timelines



C. Curved and freeform steel formwork for architectural concrete



Advancements in formwork technology are enabling more complex architectural designs:



1. Computer-aided manufacturing techniques:

   - Allow for precise creation of curved formwork components

   - Enable realization of complex architectural visions



2. Flexible facing materials:

   - Use of materials like rubber or flexible plastics in conjunction with steel

   - Create smooth, curved concrete surfaces



3. Multi-axis formwork manipulation systems:

   - Allow for dynamic adjustment of formwork shape

   - Enable creation of variable geometry concrete structures



D. Hybrid formwork systems combining steel with other materials



Innovative hybrid systems are combining the strengths of different materials:



1. Steel-timber composite formwork:

   - Combines the strength of steel with the workability of timber

   - Useful for projects requiring on-site modifications



2. Steel-fabric formwork for lightweight structures:

   - Uses tensioned fabric as a flexible formwork surface

   - Enables creation of optimized, materially efficient concrete structures



3. Steel-plastic hybrid systems for complex geometries:

   - Utilizes 3D-printed plastic inserts with steel formwork

   - Allows for highly detailed architectural features in concrete



These innovative applications demonstrate the ongoing evolution of steel formwork technology. They enable faster construction, more complex designs, and improved efficiency, pushing the boundaries of what's possible in concrete construction.



XIII. Conclusion



Calculating steel formwork is a complex but crucial aspect of modern construction. From basic principles to advanced techniques, the field of steel formwork calculation continues to evolve, driven by technological advancements and the need for more efficient, safe, and sustainable construction practices.



Key points to remember:



1. Accurate calculation of steel formwork is essential for structural integrity, cost efficiency, and safety.

2. Understanding the basics of formwork components and types provides a foundation for accurate calculations.

3. Specialized calculations are needed for different structural elements like walls, columns, slabs, and beams.

4. Various factors, including concrete pressure, wind loads, and temperature variations, affect formwork calculations.

5. Advanced tools and technologies, from spreadsheets to BIM integration, can greatly assist in formwork calculation and planning.

6. Optimization strategies, such as modular design and efficient cycling, can significantly improve formwork efficiency.

7. Cost considerations should balance initial investment against long-term savings and factor in labor, transportation, and maintenance costs.

8. Quality control and inspection processes are crucial at all stages of formwork use.

9. Innovative applications like self-climbing systems and hybrid formwork are pushing the boundaries of what's possible in concrete construction.



As construction projects become more complex and ambitious, the importance of accurate steel formwork calculation only grows. By mastering these calculations and staying abreast of new technologies and techniques, construction professionals can ensure safer, more efficient, and more cost-effective projects.



The future of steel formwork calculation lies in the integration of advanced technologies like AI and machine learning, further optimization of formwork systems, and the development of new materials and hybrid systems. As the industry continues to evolve, so too will the methods and tools used to calculate and design steel formwork, opening up new possibilities in the world of construction.
