What is PVC formwork?

I. Introduction



PVC formwork, also known as PVC plastic formwork, is revolutionizing the construction industry with its innovative approach to concrete casting. This modern construction material is designed to shape concrete structures during the pouring and curing process, offering a durable and cost-effective alternative to traditional formwork materials.



PVC formwork is made primarily from Polyvinyl Chloride (PVC), a versatile synthetic plastic polymer. It has gained popularity in recent years due to its ability to simplify construction processes, reduce labor and material costs, and enhance project efficiency. As we delve deeper into the world of PVC formwork, we'll explore its composition, characteristics, advantages, and applications in modern construction practices.



II. Composition and Manufacturing



A. Material Composition



PVC formwork is primarily composed of PVC resin, which provides the core structure and properties of the formwork. However, the formwork's performance is enhanced by the addition of various additives and stabilizers:



1. PVC Resin: The primary ingredient, derived from the polymerization of vinyl chloride monomers.

2. Stabilizers: Added to protect the PVC formwork from degradation caused by heat, light, and other environmental factors.

3. Modifiers and Additives: Included to enhance specific properties such as fire resistance, impact strength, and UV resistance.



B. Manufacturing Process



The production of PVC formwork involves several key steps:



1. Compound Mixing: PVC resin is blended with plasticizers, stabilizers, and other additives in specific proportions. This mixture is heated and blended to create a uniform compound.



2. Extrusion: The compound is processed through extrusion machines, where it's melted and forced through a mold to create continuous sections of formwork.



3. Cooling and Shaping: After formation, the PVC material is rapidly cooled and shaped according to the desired formwork specifications.



4. Cutting and Quality Control: The formed PVC material is cut into appropriate lengths and shapes. Rigorous quality control measures are implemented to ensure the formwork meets required standards.



III. Characteristics of PVC Formwork



A. Physical Properties



1. Lightweight Nature: PVC formwork is significantly lighter than traditional formwork materials, making it easier to handle and transport on construction sites.



2. Durability and Strength: Despite its lightweight nature, PVC formwork exhibits excellent durability and strength. It can withstand multiple uses without degradation, typically lasting for 50 or more uses in wooden structures and even more in premium metal structures.



3. Smooth Surface Finish: The patented mirror surface technology ensures a consistently smooth surface, even after multiple uses. This results in high-quality concrete finishes that often require minimal additional treatment.



B. Chemical Properties



1. Resistance to Chemicals and Alkalis: PVC formwork demonstrates high resistance to various chemicals and alkalis commonly encountered in construction environments, contributing to its longevity.



2. Waterproof and Moistureproof: Being made entirely of plastic, PVC formwork is 100% waterproof. This characteristic allows it to be exposed to rain or stored outdoors without the need for protective covering.



C. Thermal Properties



1. Temperature Resistance Range: PVC formwork maintains its integrity across a wide temperature range, from -40°C to +75°C. Some high-quality formworks can even withstand temperatures up to +200°C.



2. Non-deformity Under Extreme Temperatures: Unlike some traditional materials, PVC formwork doesn't shrink, bulge, or crack under extreme temperature conditions, maintaining its shape and effectiveness.



IV. The Pros of PVC Formwork



PVC formwork offers numerous advantages that have contributed to its growing popularity in the construction industry:



1. Reusability and Cost-effectiveness: One of the most significant advantages of PVC formwork is its ability to be reused multiple times. In simple wooden structures, it can be reused 50 or more times, and even more in premium metal structures. This high reusability factor translates to substantial cost savings over time.



2. Ease of Installation and Removal: The lightweight nature of PVC formwork makes it easy to handle, install, and remove. This simplicity in use contributes to faster construction timelines and reduced labor requirements.



3. Reduced Labor Requirements: Due to its lightweight nature and ease of use, PVC formwork typically requires less manpower for installation and removal compared to traditional formwork materials.



4. No Need for Releasing Oil: Unlike many traditional formwork materials, PVC formwork doesn't require the application of releasing oil before concrete pouring. This saves time and reduces material costs.



5. Environmental Benefits: PVC formwork is recyclable, contributing to reduced waste in construction projects. Its long lifespan also means less frequent replacement, further reducing environmental impact.



6. Versatility in Applications: PVC formwork can be used in a wide range of construction applications, from residential buildings to large-scale infrastructure projects.



7. Consistent Concrete Finish Quality: The smooth surface of PVC formwork results in high-quality concrete finishes, often eliminating the need for additional surface treatments.



V. The Cons of PVC Formwork



While PVC formwork offers many advantages, it's important to consider its limitations:



1. Environmental Concerns: The production and disposal of PVC can raise environmental concerns due to the potential release of harmful chemicals. Proper recycling and disposal practices are crucial.



2. Limited Load Capacity: Compared to traditional materials like steel, PVC formwork may have limitations in terms of the load it can bear, potentially restricting its use in certain high-load applications.



3. Higher Initial Investment: While cost-effective in the long run, PVC formwork often requires a higher upfront investment compared to some traditional formwork materials.



4. Maintenance Requirements: To ensure longevity and maintain performance, PVC formwork requires regular cleaning and proper storage, which can add to maintenance costs.



5. Temperature Sensitivity: Although resistant to a wide temperature range, extreme conditions may affect the performance of PVC formwork, requiring careful consideration in certain climates.



VI. Specifications and Types



PVC formwork comes in various specifications to suit different construction needs:



A. Standard Dimensions and Customization Options



PVC formwork is available in a range of standard sizes, similar to plywood formwork:

- Width: Up to 1300 mm (typically up to 1250 mm or 49.25")

- Length: No practical limits, with common lengths matching plywood sheets (e.g., 2440 mm or 96")

- Popular sizes include 4' x 8' panels



Customization options are available to meet specific project requirements.



B. Thickness Variants



Thickness options typically range from 6mm to 22mm, with the most common being:

- 12mm (1/2")

- 15mm (5/8")

- 18mm (3/4")



C. Density Range



The standard density is typically 0.70g/cm³ ± 0.5%, but can be customized within a range of 0.60 to 0.90 g/cm³ to suit different applications.



D. Color Options



While the original color is often turquoise green or azure blue, other colors can be customized, including white, black, and red.



E. Types of PVC Formwork



Various types of PVC formwork are available for different construction elements:

1. Wall formwork

2. Slab formwork

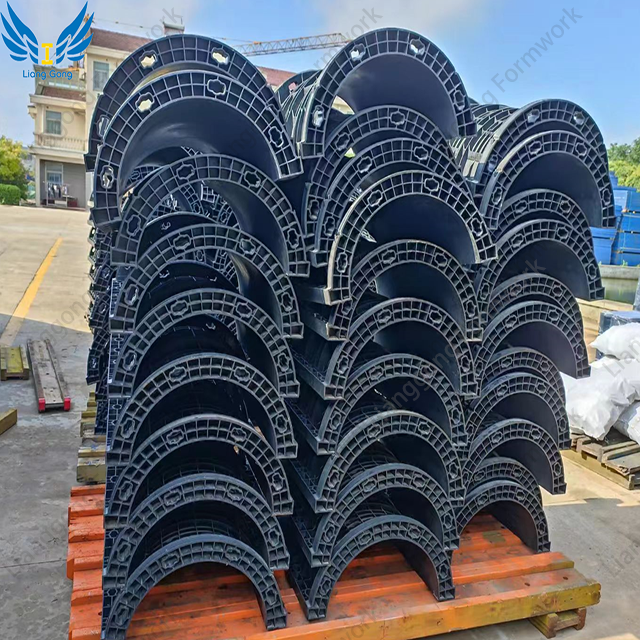

3. Column formwork (including adjustable and round column options)

4. Beam formwork



VII. Applications of PVC Formwork



PVC formwork finds wide-ranging applications across various construction sectors:



A. Residential Construction



In residential projects, PVC formwork is used for:

- Foundation walls

- Interior and exterior walls

- Slabs and floors

- Staircases



B. Commercial Buildings



Commercial applications include:

- High-rise structures

- Office buildings

- Shopping complexes

- Educational institutions



C. Industrial Structures



PVC formwork is utilized in industrial construction for:

- Warehouses

- Factories

- Storage facilities



D. Infrastructure Projects



Large-scale infrastructure projects benefit from PVC formwork in:

- Bridge construction (e.g., abutments, piers)

- Tunnel lining

- Road and highway structures



E. Special Applications



PVC formwork's flexibility allows for:

- Curved structures

- Decorative concrete elements

- Remote area constructions where machinery access is limited



VIII. Comparison with Traditional Formwork Materials



A. PVC vs. Plywood Formwork



Advantages of PVC over plywood:

- Longer lifespan (50+ uses compared to 5-10 for plywood)

- Waterproof and more durable

- Consistent surface quality over multiple uses

- No need for releasing agents



Disadvantages:

- Higher initial cost

- Potential environmental concerns with PVC production



B. PVC vs. Steel Formwork



Advantages of PVC over steel:

- Lighter weight, easier to handle

- Lower initial cost

- No risk of rust or corrosion



Disadvantages:

- Lower load-bearing capacity

- May not be suitable for some heavy-duty applications



C. PVC vs. Aluminum Formwork



Advantages of PVC over aluminum:

- Generally lower cost

- Easier to cut and modify on-site



Disadvantages:

- May not be as rigid for some applications

- Potentially shorter lifespan in very heavy use scenarios



IX. Installation and Usage Guidelines



A. Proper Handling and Storage



- Store PVC formwork panels flat to prevent warping

- Keep away from direct sunlight when not in use

- Handle with care to avoid damage, especially to edges and corners



B. Installation Techniques



- Follow manufacturer guidelines for assembly

- Ensure proper alignment and support

- Use appropriate fasteners and connectors



C. Stripping and Cleaning Procedures



- Remove formwork carefully to avoid damaging concrete surfaces

- Clean immediately after use with water and a mop

- Avoid using harsh chemicals or abrasive cleaning methods



D. Maintenance and Repair



- Regularly inspect for damage

- Minor damages can often be repaired with a low-pressure hot air gun

- Replace panels when they no longer meet quality standards



X. Case Studies and Real-World Examples



A. High-rise Residential Building Projects



Case Study: In a 30-story residential tower project, PVC formwork was used for casting concrete walls and columns. The lightweight nature of PVC formwork allowed for easier transportation and installation, resulting in labor savings of approximately 30% compared to traditional formwork methods. The reusability of the PVC panels over multiple floors led to a 25% reduction in overall formwork costs for the project.



B. Commercial Complex Constructions



Example: A large shopping mall construction utilized PVC formwork for its quick assembly and disassembly capabilities. This efficiency reduced the construction time by 3 weeks compared to the original schedule, allowing for earlier opening and revenue generation.



C. Infrastructure Project Applications



Case Study: In a bridge construction project, PVC formwork was used for forming the bridge's abutments. Its resistance to corrosion and ability to withstand exposure to elements made it ideal for this application. The reusability of the formwork across multiple bridge sections contributed to a 20% cost saving in formwork materials and labor.



XI. Environmental Considerations



A. Recyclability of PVC Formwork



PVC formwork is 100% recyclable at the end of its useful life. Used formwork can be sold to plastic recycling facilities, often fetching a higher price than used plywood formwork.



B. Energy Savings in Production and Transportation



The lightweight nature of PVC formwork results in lower transportation costs and reduced fuel consumption compared to heavier traditional materials.



C. Reduction in Deforestation



By providing a durable alternative to plywood formwork, PVC formwork contributes to reducing the demand for wood products, indirectly supporting forest conservation efforts.



D. Proper Disposal and Recycling Practices



To maximize environmental benefits:

- Establish partnerships with local recycling facilities

- Implement on-site sorting of used formwork materials

- Educate workers on proper handling and disposal procedures



XII. How to Choose and Compare PVC Formwork



A. Key Factors to Consider When Selecting PVC Formwork



1. Density and Weight: Higher density often indicates better quality but may affect handling ease.

2. Raw Material Quality: 100% new PVC material is preferable to recycled content for better performance.

3. Formula Composition: Avoid formworks with added wood powder, which can compromise strength and fire resistance.

4. UV Resistance: Essential for outdoor use and storage.

5. Nail and Screw Holding Strength: Important for assembly and multiple uses.



B. Importance of Material Sourcing



Using 100% new PVC material, as opposed to recycled content, ensures:

- Stable quality across batches

- Better UV resistance, especially in high-exposure regions

- Superior tenacity and rigidity



C. Evaluating Manufacturer Claims



When assessing manufacturer claims, consider:

- Reuse cycles: Verify through independent testing or customer testimonials

- Surface finish quality: Request samples or visit completed projects

- Environmental certifications: Look for recognized industry standards



D. Cost Considerations



- Balance initial investment against long-term savings from multiple reuses

- Factor in potential labor cost reductions from easier handling

- Consider maintenance and replacement costs over the project lifecycle



E. Testing and Quality Assurance



Important properties to test include:

- Impact resistance

- Flexural strength

- UV stability

- Chemical resistance



Look for manufacturers that adhere to international quality standards and offer transparent testing results.



XIII. Conclusion



PVC formwork represents a significant advancement in construction technology, offering a blend of durability, cost-effectiveness, and ease of use. Its ability to be reused multiple times, coupled with its lightweight nature and consistent surface finish, makes it an attractive option for a wide range of construction projects.



While PVC formwork presents some challenges, particularly in terms of environmental considerations and initial costs, its benefits often outweigh these concerns in many applications. The key to maximizing the advantages of PVC formwork lies in proper selection, use, and maintenance.



As the construction industry continues to evolve, with increasing emphasis on efficiency, cost-effectiveness, and environmental responsibility, PVC formwork is well-positioned to play a crucial role. By understanding its properties, applications, and best practices for use, construction professionals can leverage PVC formwork to enhance project outcomes and contribute to more sustainable building practices.



The future of PVC formwork in the construction industry looks promising, with ongoing research and development likely to address current limitations and further improve its performance and environmental profile. As with any construction material, the success of PVC formwork ultimately depends on its appropriate application and the expertise of the professionals using it.





XIV. Frequently Asked Questions (FAQ)



Q1: How long can PVC formwork last?

A: High-quality PVC formwork can typically be reused 50 times or more in wooden structures, and even more in premium metal structures. With proper care and maintenance, it can last for several years across multiple construction projects.



Q2: Is PVC formwork environmentally friendly?

A: While PVC production does raise some environmental concerns, PVC formwork is 100% recyclable and its long lifespan reduces waste compared to traditional formwork materials. Its use can also contribute to reduced deforestation by providing an alternative to wooden formwork.



Q3: How does the cost of PVC formwork compare to traditional materials?

A: PVC formwork often has a higher initial cost compared to materials like plywood. However, its ability to be reused many times often results in significant cost savings over the long term, especially for large or multiple projects.



Q4: Can PVC formwork be used in all weather conditions?

A: PVC formwork is highly resistant to various weather conditions. It can withstand temperatures from -40°C to +75°C without deformation. However, extreme conditions may affect its performance, so it's important to follow manufacturer guidelines for specific climate considerations.



Q5: Does PVC formwork require special skills to install?

A: PVC formwork is generally easier to handle and install than heavier traditional materials due to its lightweight nature. While it doesn't require highly specialized skills, proper training in its use will ensure optimal results and longevity of the formwork.



Q6: How is PVC formwork cleaned and maintained?

A: PVC formwork is easy to clean, usually requiring just water and a mop after use. Unlike some traditional formworks, it doesn't need releasing agents before concrete pouring. Regular inspection for damage and proper storage away from direct sunlight when not in use are key to maintaining its condition.



Q7: Can PVC formwork be modified on-site?

A: Yes, PVC formwork can be cut, drilled, and shaped on-site using standard woodworking tools. This allows for customization to fit specific project needs. However, care should be taken not to compromise the structural integrity of the formwork.



Q8: Is PVC formwork suitable for creating curved concrete structures?

A: Yes, PVC formwork is quite flexible and can be used to create curved structures. Its ability to bend makes it suitable for various architectural designs, including round columns and curved walls.



Q9: How does PVC formwork affect the final concrete finish?

A: PVC formwork typically produces a very smooth concrete finish due to its non-porous surface. This often reduces or eliminates the need for additional finishing work on the concrete surface, saving time and labor costs.



Q10: Are there any safety concerns with using PVC formwork?

A: PVC formwork is generally considered safe to use. It's lightweight, reducing the risk of injuries from heavy lifting. However, as with any construction material, proper safety protocols should be followed during installation and removal. In terms of fire safety, high-quality PVC formwork is usually treated to be fire-resistant.
