What is timber formwork?

I. Introduction



Formwork is a crucial element in modern construction, serving as a temporary mold into which concrete or similar building materials are poured. Among the various types of formwork available, timber formwork has been a staple in the construction industry for centuries, dating back to ancient times when concrete first gained prominence as a building material.



Timber formwork, also known as wooden formwork or shuttering, refers to the use of wooden elements to create a mold that shapes concrete as it sets. This traditional method has stood the test of time, evolving alongside advancements in construction techniques while maintaining its relevance in today's building practices.



II. What is Timber Formwork?



A. Definition and basic concept



Timber formwork is a system of temporary wooden structures designed to support and shape freshly poured concrete until it achieves sufficient strength to maintain its form. This method utilizes various wooden components to create a mold that defines the shape, size, and surface texture of the concrete element being cast.



B. Components of timber formwork



1. Formwork sheeting (boards or panels):

The formwork sheeting, also called the formwork shell, is the part that comes into direct contact with the concrete. It can be made from individual boards, typically 25 mm thick and approximately 140 mm wide, or prefabricated wooden panels. The sheeting molds the fresh concrete to the desired shape specified in the construction drawings.



2. Formwork bearers:

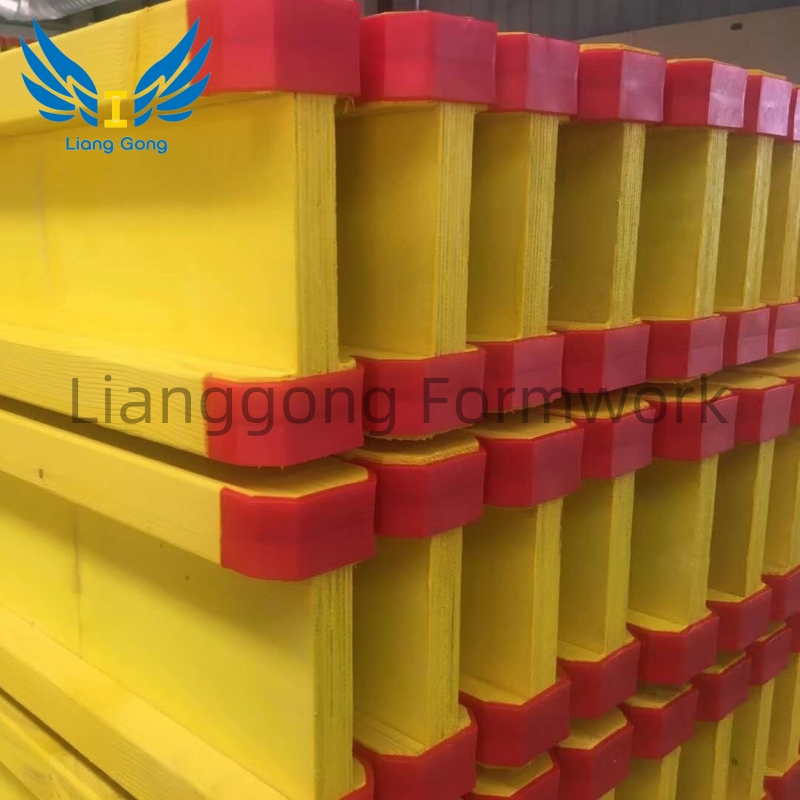

Formwork bearers directly support the formwork sheeting and carry the forces through to the supporting structure or soil. These are usually made from squared timbers, with their cross-sections determined by the loads they need to resist.



3. Bracing and support elements:

Bracing members are essential for both vertical and horizontal formwork. They ensure that the formwork maintains its shape and position under the pressure of wet concrete. Bracing can be made from boards, squared timbers, or round timbers.



III. Advantages of Timber Formwork



Timber formwork offers several advantages that contribute to its continued popularity in construction:



A. Cost-effectiveness:

For smaller projects, timber formwork is often the most economical choice. The initial cost of timber is generally lower than that of steel or aluminum formwork systems.



B. Ease of handling and workability:

Timber is lightweight and easy to handle, making it ideal for projects where heavy machinery isn't available or practical. It can be easily cut, shaped, and assembled on-site using common tools.



C. Flexibility in design and on-site modifications:

Timber formwork can be easily adapted to various shapes and sizes, allowing for greater flexibility in design. On-site modifications are simpler with timber compared to more rigid materials like steel or aluminum.



D. Lightweight nature:

The lightweight nature of timber makes it easier to transport, handle, and erect, potentially reducing labor costs and time.



E. Thermal insulation properties:

Timber provides better thermal insulation compared to metal formwork, which can be beneficial in cold weather concreting.



F. Aesthetically pleasing results:

When properly prepared and used, timber formwork can create concrete surfaces with a warm, natural appearance that many find aesthetically pleasing.



IV. Applications of Timber Formwork



Timber formwork finds applications in various aspects of construction:



A. Construction:

1. Timber formwork is versatile and can be used in a wide range of construction projects, from small residential builds to larger commercial structures.

2. Its adaptability allows it to be used for various structural elements, including foundations, walls, columns, and beams.

3. It can be employed in both temporary structures and as part of permanent construction methods.



B. Concrete Pouring Construction:

1. Timber formwork excels in creating molds for concrete elements of various shapes and sizes.

2. It allows for precise shaping and finishing of concrete surfaces.

3. This type of formwork is suitable for both pre-cast concrete elements and cast-in-place concrete construction.



C. Building:

1. In residential construction, timber formwork is commonly used for foundations, walls, and other structural elements in houses and low-rise apartments.

2. Commercial buildings often utilize timber formwork for smaller scale elements or in areas where its flexibility is advantageous.

3. Institutional structures like schools and hospitals may employ timber formwork for certain components.

4. Industrial facilities can benefit from timber formwork in various applications, particularly where customization is required.



D. Shear Wall Construction:

1. Timber formwork is effective in creating molds for concrete shear walls, which are crucial for providing lateral stability to buildings.

2. It allows for precise alignment and positioning of reinforcement within shear walls.

3. The flexibility of timber formwork enables the creation of complex shear wall designs when necessary.



E. High-Rise Buildings:

1. While not typically used for the entire structure of high-rises, timber formwork can be employed in foundational elements and lower floors.

2. It's often used in conjunction with other formwork systems in tall buildings.

3. The limitations of timber formwork in high-rise construction include its lower load-bearing capacity compared to steel or aluminum systems, which becomes more critical at greater heights.



V. Timber Formwork Materials



The choice of timber for formwork is crucial to its performance and durability:



A. Types of wood used:

Common wood species used for timber formwork include Norway spruce, fir, and Douglas fir. These softwoods are favored for their balance of strength, workability, and cost-effectiveness.



B. Characteristics of ideal timber for formwork:

The best timber for formwork should be:

- Well-seasoned to prevent warping

- Free from loose knots

- Easily workable with nails

- Strong enough to withstand the pressure of wet concrete

- Resistant to wear and tear from repeated use



C. Treatment and preparation of timber:

To enhance durability and performance, timber used in formwork may be treated with preservatives or coatings. This treatment can help protect against moisture absorption and extend the lifespan of the formwork.



VI. Timber Formwork Design and Construction



A. Thickness requirements:

The thickness of timber formwork components is critical to their performance:



1. Formwork boards must be at least 1.5 inches (38 mm) thick to ensure adequate strength and prevent warping.

2. Plywood used in formwork should be at least 0.66 inches (17 mm) thick and consist of at least 7 plies, as per CSA 0121-M1978 standards.



B. Design considerations:

When designing timber formwork, several factors must be taken into account:

1. The formwork must be able to withstand the hydrostatic pressure of wet concrete.

2. It should be rigid enough to maintain its shape under the weight of the concrete.

3. Joints must be tight to prevent leakage of concrete.



C. Construction techniques:

1. Cutting and shaping of timber components is typically done on-site.

2. Assembly methods include nailing, screwing, and the use of formwork ties.

3. Bracing and support systems are crucial for maintaining the stability of the formwork.



D. Quality control and inspection:

Regular inspections during the construction and before concrete pouring are essential to ensure the formwork meets all safety and quality standards.



VII. Maintenance and Reusability



A. Cleaning and storage practices:

Proper cleaning after each use and correct storage can significantly extend the life of timber formwork.



B. Repair and replacement of damaged components:

Regular inspection and prompt repair or replacement of damaged parts is crucial for maintaining the integrity of the formwork system.



C. Number of potential reuses:

While not as durable as steel or aluminum formwork, timber formwork can typically be reused 5 to 10 times if properly maintained.



VIII. Safety Considerations



A. Structural integrity:

Ensuring the formwork can withstand the pressures of wet concrete is crucial for worker safety.



B. Fire safety:

While timber is combustible, proper treatment and safety measures can mitigate fire risks.



C. Worker safety during assembly and disassembly:

Proper training and adherence to safety protocols are essential during the erection and dismantling of timber formwork.



IX. Environmental Impact



A. Sustainability of timber as a material:

Timber is a renewable resource, making it a more sustainable option compared to steel or plastic formwork.



B. Comparison with other formwork materials:

While timber formwork has a shorter lifespan than steel or aluminum, its environmental impact can be lower due to its biodegradability and lower energy requirements for production.



C. Recycling and disposal considerations:

At the end of its useful life, timber formwork can be recycled or used for other purposes, reducing waste.



X. Limitations and Challenges of Timber Formwork



A. Moisture absorption and its effects:

Timber can absorb moisture from wet concrete, potentially affecting its strength and the quality of the concrete surface.



B. Limited lifespan compared to other materials:

Timber formwork generally has a shorter lifespan than steel or aluminum alternatives.



C. Potential for insect infestation or rot:

Without proper treatment and maintenance, timber formwork can be susceptible to degradation from insects or fungi.



XI. Comparison with Other Formwork Types



A. Steel formwork:

While more durable and suitable for high-rise construction, steel formwork is heavier and more expensive than timber.



B. Aluminum formwork:

Aluminum offers a balance between the strength of steel and the lightweight nature of timber but at a higher cost.



C. Plastic formwork:

Plastic formwork is lightweight and easy to clean but may lack the strength and versatility of timber for certain applications.



XII. Conclusion



Timber formwork remains a relevant and valuable option in modern construction. Its cost-effectiveness, versatility, and ease of use make it particularly suitable for small to medium-scale projects and specific applications in larger constructions. While it has limitations, particularly in high-rise buildings, timber formwork continues to be an essential tool in the construction industry, offering unique advantages that other materials cannot match. As the industry evolves, timber formwork adapts, maintaining its place as a reliable and efficient method for shaping concrete structures.



XIII. Frequently Asked Questions (FAQ) about Timber Formwork



1. Q: How long can timber formwork last?

   A: With proper maintenance and care, timber formwork can typically be reused 5 to 10 times. However, this can vary depending on the quality of the timber, the complexity of the project, and how well it's maintained between uses.



2. Q: Is timber formwork suitable for high-rise buildings?

   A: While timber formwork can be used in certain aspects of high-rise construction, such as foundational elements and lower floors, it's generally not suitable for the entire structure of a high-rise building. Steel or aluminum formwork is typically preferred for taller structures due to their higher strength and durability.



3. Q: How does the cost of timber formwork compare to other types?

   A: Timber formwork is often the most cost-effective option for smaller projects. While the initial cost is lower than steel or aluminum formwork, its shorter lifespan means it may be less economical for large-scale projects that require multiple reuses.



4. Q: What are the environmental implications of using timber formwork?

   A: Timber is a renewable resource, making it more environmentally friendly in some aspects. It's biodegradable and requires less energy to produce than steel or aluminum. However, its shorter lifespan means it needs to be replaced more often, which could lead to increased resource use over time.



5. Q: Can timber formwork be used for curved or complex shapes?

   A: Yes, one of the advantages of timber formwork is its flexibility. It can be relatively easily cut and shaped to create curved or complex forms. However, for very intricate designs, other materials like steel or plastic might be more suitable.



6. Q: What are the main maintenance requirements for timber formwork?

   A: Key maintenance practices include thorough cleaning after each use, proper storage in a dry place, regular inspections for damage, prompt repairs or replacement of damaged parts, and applying release agents before each use to prevent concrete adhesion.



7. Q: How does weather affect timber formwork?

   A: Timber formwork can be affected by weather conditions. Excessive moisture can cause swelling or warping, while very dry conditions might cause shrinkage. Proper treatment of the timber and careful storage can help mitigate these issues.



8. Q: What safety precautions should be taken when using timber formwork?

   A: Key safety measures include ensuring the formwork is properly designed to withstand concrete pressure, regular inspections before and during use, proper bracing and support, and adherence to safety protocols during assembly and disassembly. Workers should also be trained in proper handling and installation techniques.



9. Q: Can timber formwork be recycled?

   A: Yes, at the end of its useful life as formwork, timber can often be recycled or repurposed for other uses, reducing waste and environmental impact.



10. Q: How does timber formwork affect the finish of the concrete?

    A: When properly prepared and used, timber formwork can create a smooth finish on concrete surfaces. However, the grain of the wood may sometimes be visible on the concrete surface, which some consider an attractive feature. The use of form liners or release agents can help achieve the desired finish.



This FAQ section addresses some of the most common questions that readers might have after reading the article, providing additional clarity and practical information about timber formwork.
