What is the purpose of a trench box?

Each year, trench accidents claim lives and injure workers. Are your excavation sites safe enough? Trench boxes play a vital role in construction safety, shielding workers from cave-ins and stabilizing trench walls. In this post, you'll learn their purpose, safety benefits, and how they ensure OSHA compliance.



Understanding Trench Boxes

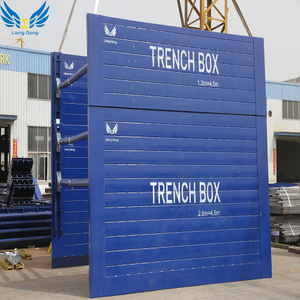

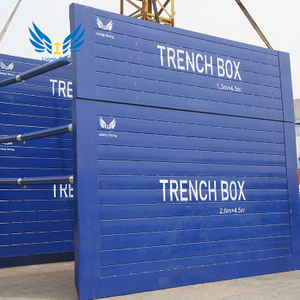

What is a Trench Box?

A trench box is a sturdy structure that keeps excavation walls from caving in. It protects workers by creating a safe working environment inside the trench. Known by other names like trench shield, sewer box, manhole box, or tap box, this essential tool is widely used in construction projects where digging is involved.

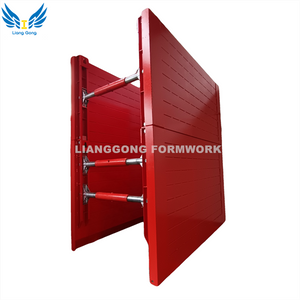

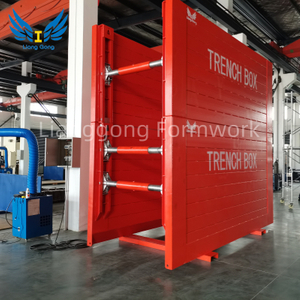

Components and Structure

A trench box is built to be simple yet effective. Its key components include:



- Shields: These are strong plates, usually made of steel or aluminum, which line the trench walls.

- Spreaders: Beams that hold the shields apart, ensuring a stable structure.



Many trench boxes are modular, meaning you can configure them to fit specific trench sizes. These customizable designs make them versatile for various project needs.



Purpose of a Trench Box

Trench boxes are essential for several reasons:



Primary Purpose

Their main job is to keep workers safe. By stabilizing trench walls, they reduce the risk of deadly collapses. This makes trenches safer to work in, even in unstable soil.



Secondary Purposes

1. Boosting Efficiency: With a trench box, workers spend less time worrying about wall stability and more time focusing on their tasks.

2. Improving Stability: Trench boxes help maintain the trench's shape for long-term projects.

3. Meeting OSHA Standards: Using a trench box ensures compliance with strict safety regulations.



Trench boxes aren't just tools; they're lifesavers. They protect workers, streamline projects, and keep construction sites safe and efficient. Whether you're dealing with deep trenches or tight deadlines, they provide reliable support every step of the way.



Why Trench Boxes are Essential



Excavation Hazards

Working in trenches can be dangerous, even with precautions. Common hazards include:



- Collapses: Walls of the trench can cave in, trapping workers.

- Falling Debris: Loose soil or tools might fall into the trench.

- Poor Air Quality: Harmful gases or low oxygen levels can make breathing difficult.

- Worker Falls: Uneven surfaces around trenches increase the risk of slipping or falling.



According to OSHA, trench collapses alone result in dozens of fatalities annually. These preventable accidents highlight the importance of trench boxes in safeguarding lives.



Legal and Safety Requirements

To keep workers safe, OSHA has strict rules for trenching and excavation. Key guidelines include:



1. Protective Systems: Trenches 5 feet or deeper must have safety measures like trench boxes unless the soil is solid rock.

2. Competent Person: A trained individual must assess the trench to decide which protective system to use.

3. Depth Guidelines: Trenches over 20 feet require engineered solutions designed and certified by a professional.



These regulations ensure that every trench site prioritizes worker safety, and trench boxes are one of the most effective ways to comply.



Excavation work is risky, but it doesn’t have to be deadly. Trench boxes minimize hazards and meet legal requirements, making them an essential tool for every construction project. Their use reflects a commitment to safety, efficiency, and compliance.



Types of Trench Boxes



Not all trench boxes are created equal. Different types are designed for various projects and needs. Let’s explore the four main types.



Heavy-Duty Steel Trench Boxes

Built for strength and durability, heavy-duty steel trench boxes have thick walls, often 6 inches or more. They are perfect for deep and rugged excavations where heavy machinery is used. These boxes can handle significant wear and tear, making them ideal for large-scale or frequent projects. However, their weight means they require powerful equipment for installation and removal.



Lightweight Steel Trench Boxes

If you need something more manageable, lightweight steel trench boxes are a great option. They feature thinner walls, usually 4 inches, making them easier to handle and install. These boxes are best suited for moderate-depth trenches where heavy machinery isn’t available. While they’re not as durable as their heavy-duty counterparts, they balance usability and strength well for smaller projects.



Aluminum Trench Boxes

For projects requiring portability and flexibility, aluminum trench boxes are the top choice. They are significantly lighter than steel options, making them easy to transport and install with smaller equipment. These boxes work well for shallow excavations or utility repairs. They’re customizable but less durable, so they’re not recommended for deep or harsh conditions.



Modular Trench Boxes

Modular designs offer unmatched versatility. These boxes come in sections that you can assemble to fit specific trench sizes and shapes. Whether you need a two-sided, three-sided, or even angled configuration, modular trench boxes are the go-to option for unique project needs. Small contractors particularly appreciate how easy they are to handle and adjust. While slightly more expensive upfront, they save time and effort on the job site.



Type	Key Features	Best For
Heavy-Duty Steel	Thick, durable walls; long lifespan	Deep, rugged excavations; heavy machinery
Lightweight Steel	Thinner walls; easy handling	Moderate-depth trenches; lighter equipment
Aluminum	Lightweight; portable; customizable	Shallow trenches; small-scale utility work
Modular	Configurable; versatile; easy assembly	Unique trench shapes; small contractors



Each type of trench box has strengths tailored to specific jobs. By selecting the right one, you improve safety, efficiency, and cost-effectiveness on your excavation site.



Trench Boxes vs. Alternative Safety Methods



When it comes to excavation safety, trench boxes aren’t the only option. Let’s compare them with two other common methods: shoring and sloping.



Comparison with Shoring



Shoring systems are designed to hold trench walls in place by applying pressure to the surrounding soil. This method typically uses hydraulic or static jacks to brace the walls directly, preventing them from shifting or collapsing. It’s often chosen for larger, long-term excavations where trench stability must be maintained for an extended period.



Key Differences:

- Design: Shoring systems actively push against the soil, while trench boxes shield workers from cave-ins without stabilizing the soil itself.

- Application: Shoring works well for wide or irregular-shaped trenches, but it requires more setup time compared to trench boxes.

- Benefits: Shoring is better suited for sites where walls must remain intact for a long time, but it’s less portable and often more expensive than trench boxes.



Comparison with Sloping



Sloping involves cutting back trench walls at a safe angle to prevent collapses. By widening the excavation, sloping reduces vertical pressure on the trench walls, keeping them stable. This method is common for projects in stable soil conditions.



Why Trench Boxes Are Better:

- Space Efficiency: Sloping requires significantly more space, often making it impractical in confined sites. For example, a 10-foot-deep trench may need to be 30 feet wide at the top, depending on the soil.

- Material Removal: With sloping, more soil needs to be excavated, increasing labor, time, and costs. Trench boxes allow for minimal soil removal.

- Safety: Sloping is highly dependent on soil stability, which can change unexpectedly. Trench boxes provide consistent protection regardless of soil conditions.



Method	Key Feature	Best For	Challenges
Shoring	Actively braces trench walls	Long-term or wide excavations	High setup cost; less portable
Sloping	Widening walls at an angle	Shallow trenches with stable soil	Space-intensive; high material cost
Trench Boxes	Shields workers from collapses	Confined spaces, varied soil conditions	Requires equipment for placement



While shoring and sloping have their uses, trench boxes combine portability, efficiency, and consistent safety. They are often the most practical and reliable choice for protecting workers in diverse excavation projects.



Choosing the Right Trench Box



Selecting the best trench box for your project is crucial for ensuring safety and efficiency. Let’s explore what to consider and why manufacturer data matters.



Factors to Consider



Choosing a trench box isn’t one-size-fits-all. Several factors can influence the decision:



1. Soil Type and Trench Depth

   - The type of soil determines how stable the trench walls will be. Loose or sandy soil requires a stronger box than solid clay or rock.

   - Depth matters too—deeper trenches put more pressure on the walls, demanding a box with a higher depth rating.



2. Available Equipment

   - What machinery do you have for installation? Heavy-duty steel boxes need large excavators, while aluminum options are lighter and can be installed with smaller equipment.



3. Project-Specific Requirements

   - Consider the size and shape of the trench. For example, pipe dimensions or trench width will influence the box’s size.

   - Modular trench boxes are great for unique layouts, offering flexibility for unusual trench designs.



Importance of Tabulated Data



Tabulated data is like the instruction manual for trench box use. It’s created by manufacturers and certified by professional engineers, ensuring the box is safe and suitable for specific applications.



- Manufacturer Specifications

   - This data includes details about the box’s depth rating, material strength, and installation guidelines. Following these specifications ensures you’re using the box correctly.



- OSHA Compliance

   - OSHA requires contractors to have tabulated data on-site during excavation. Inspectors can ask to see it at any time. Using a box outside its certified limits can lead to citations or safety risks.



Specification	Details Provided
Depth Rating	Maximum safe trench depth for the box.
Allowable Surcharge Loads	Weight limits for equipment near the trench.
Structural Integrity Rules	Guidance on stacking or customizing boxes.



By considering soil, depth, and project requirements while following tabulated data, you ensure a trench box that fits your needs. This careful approach not only meets safety standards but also keeps your project running smoothly.



Safe Usage of Trench Boxes



Using trench boxes correctly is vital for worker safety and project success. Let’s cover installation, safety practices, and maintenance tips to keep your team protected.



Installation Guidelines



Proper installation of a trench box ensures stability and minimizes risks. Here’s what to focus on:



1. Follow Depth Ratings

   - Every trench box has a maximum depth rating. Make sure your trench doesn’t exceed this limit to avoid structural failure.



2. Position the Box Correctly

   - Trench boxes must sit as close to the trench bottom as possible, with no more than 2 feet of clearance. Workers should never excavate deeper than the box allows.



3. Use Appropriate Equipment

   - Heavy-duty machinery is often needed to lift and position the box. Always check that your equipment matches the box’s weight and size.



Key Tip: Always refer to the manufacturer’s tabulated data for specific installation instructions.



Worker Safety Practices



Once the trench box is in place, follow these practices to keep workers safe:



- Stay Inside the Box

   - Workers should remain within the protective walls at all times. Venturing outside increases the risk of injury during a collapse.



- Ladder Placement

   - Install a ladder inside the box so workers can quickly exit in an emergency. It must extend at least 3 feet above the trench’s top.



- Avoid Being in the Box During Adjustments

   - Workers should never be inside when the trench box is being moved, removed, or vertically adjusted.



Safety Practice	Why It’s Important
Stay Inside the Box	Reduces exposure to cave-ins and falling debris
Use Proper Exits (Ladders)	Ensures a fast and safe escape
Avoid Box Adjustments with Workers Inside	Prevents injuries from sudden movements



Maintenance and Inspection



Regular maintenance ensures your trench box performs reliably over time. Include these steps in your routine:



1. Check for Damage or Wear

   - Inspect the box for cracks, bends, or weakened spreaders before each use. Even small issues can compromise its safety.



2. Monitor Site Conditions

   - Soil conditions can change due to weather or vibrations. Regularly assess the site to ensure the box remains stable and effective.



3. Repair or Replace as Needed

   - If any part of the box is damaged, consult the manufacturer or a professional engineer before reusing it.



Correctly installing, using, and maintaining a trench box isn’t just about following rules—it’s about protecting lives. By prioritizing safety, you create a secure environment for your team while keeping your project on track.



Renting vs. Buying a Trench Box



Deciding whether to rent or buy a trench box depends on your project needs, budget, and long-term plans. Let’s break down the pros of each option.



When to Rent



Renting a trench box is a smart choice for small contractors or those with short-term needs. Here’s why renting might be the better option:



- Cost-Effective for Temporary Projects

   - If your project only requires a trench box for a few days or weeks, renting saves you the upfront cost of buying. Rental fees can easily be included in the project’s budget.



- Access to Versatile Options

   - Rental companies often have a wide range of trench boxes, allowing you to select the best fit for your specific project. This flexibility is especially helpful for one-off or varied jobs.



- Avoid Maintenance Costs

   - When renting, maintenance and repair are typically handled by the rental company, reducing your expenses and responsibilities.



Ideal For: Small contractors, occasional excavation jobs, or those exploring trench box types before committing to a purchase.



When to Buy



For medium to large contractors, owning a trench box offers several long-term benefits. Here’s why buying may be the right choice:



- Long-Term Savings

   - While buying requires a larger initial investment, frequent use can make it more cost-effective over time. It eliminates recurring rental fees and gives you full ownership.



- Custom Fit for Your Needs

   - Owning a trench box allows you to choose the exact type, size, and features you need for ongoing projects. You can invest in durable, high-quality options tailored to your work.



- Resale Value

   - Trench boxes, especially those made of steel or aluminum, hold their value. If your needs change, you can sell them and recover part of your investment.



Ideal For: Contractors with frequent or long-term excavation projects who need reliable, cost-efficient equipment.



Aspect	Renting	Buying
Cost	Lower upfront cost; pay-per-use	Higher upfront cost; long-term savings
Maintenance	Handled by rental company	Owner is responsible
Flexibility	Access to multiple types for varied projects	Limited to purchased box
Ideal For	Small contractors, short-term needs	Frequent use, long-term projects
Resale Value	Not applicable	Can be resold to recover costs



If you need a trench box occasionally or for a one-off project, renting provides flexibility without significant costs. For contractors with regular excavation needs, buying ensures long-term savings and reliability. Think about your workload, budget, and equipment strategy to make the right choice.



Benefits of Trench Boxes



Trench boxes are essential in excavation projects for more than just safety. They also improve efficiency, stability, and cost-effectiveness. Let’s explore their key benefits.



Worker Protection



Trench boxes provide a vital barrier between workers and potential hazards, ensuring their safety while they work.



- Shielding Workers from Collapses

   - They act as a shield, protecting workers from trench cave-ins, which are one of the leading causes of fatalities in excavation work.



- Preventing Injuries from Falling Debris

   - By stabilizing trench walls, trench boxes reduce the risk of loose materials falling into the excavation, keeping the workspace safer.



By using trench boxes, companies significantly reduce excavation-related injuries and fatalities, prioritizing worker safety.



Improved Project Efficiency



Efficiency on a construction site is just as important as safety, and trench boxes help projects run smoothly.



- Preventing Delays

   - Collapses can bring work to a halt, requiring re-excavation and repairs. Trench boxes prevent these setbacks, saving valuable time.



- Streamlining Worker Movements

   - Workers can move more confidently and quickly within a stable trench, completing tasks without constant safety concerns.



Trench boxes keep work on schedule and allow teams to focus on completing the project efficiently.



Enhanced Trench Stability



For long-term projects, trench boxes provide stability that’s crucial for maintaining excavation integrity.



- Maintaining Structure

   - Trench boxes brace the walls, ensuring the trench remains stable throughout the project duration, even in shifting soil conditions.



- Reducing the Risk of Structural Failures

   - With their sturdy design, they prevent trenches from degrading over time, making them ideal for extended construction timelines.



Economic Advantages



Trench boxes aren’t just safe—they’re also a smart financial investment for many projects.



- Saving on Material and Time

   - Less soil needs to be removed compared to sloping, which lowers excavation costs and shortens project timelines.



- Resale Opportunities

   - Steel and aluminum trench boxes retain their value, allowing contractors to resell them after use to recoup costs.



Benefit	How It Helps
Worker Protection	Shields workers and reduces fatalities
Project Efficiency	Prevents delays and speeds up workflows
Trench Stability	Ensures structural integrity for long-term use
Economic Advantages	Cuts costs and provides resale opportunities





Trench boxes are more than just a safety requirement—they’re an investment in worker protection, project efficiency, and financial savings. By incorporating them into excavation projects, you ensure stability, save resources, and protect your team.





Frequently Asked Questions (FAQs)



Here are answers to some common questions about trench boxes and their role in excavation safety.



1. Are trench boxes legally required for all excavations?

Not always, but OSHA mandates protective systems like trench boxes for trenches 5 feet deep or more. If the soil is exceptionally stable or the trench is shallower, a qualified person can assess whether additional safety measures are necessary. For deeper excavations (over 20 feet), trench boxes must be certified by a registered professional engineer.



2. Can trench boxes completely prevent trench collapses?

Trench boxes don’t stop collapses from happening but shield workers if one occurs. They provide a safe zone within the trench, ensuring protection from falling debris and cave-ins. Pairing trench boxes with other safety methods, like proper soil assessments, enhances overall site safety.



3. How do I choose between steel and aluminum trench boxes?

The choice depends on your project’s needs. Steel boxes are heavier and more durable, making them ideal for deep or rugged excavations. Aluminum boxes are lighter and easier to handle, suitable for shallow trenches or projects requiring portability. Consider your equipment, trench depth, and soil conditions when deciding.



4. What factors affect the lifespan of a trench box?

Several factors influence how long a trench box lasts:



- Material Quality: Steel typically lasts longer due to its strength, especially in tough conditions.

- Frequency of Use: Regular use in demanding environments can cause wear and tear.

- Maintenance Practices: Regular inspections and timely repairs extend the life of any trench box.

- Environmental Conditions: Exposure to moisture, chemicals, or harsh weather can degrade materials over time.



Proper care and storage are crucial for maximizing the lifespan of your trench box.



5. Are there alternatives to trench boxes for excavation safety?

Yes, alternatives include:



- Shoring Systems: These brace trench walls to prevent movement, ideal for long-term excavations.

- Sloping and Benching: These methods widen the trench at an angle to reduce collapse risks. However, they require more space and material removal.



Each method has its pros and cons, but trench boxes often strike the best balance between safety, efficiency, and cost.



Have More Questions?

Trench boxes are vital tools, but understanding their proper use and alternatives is key to safe excavation. If you’re unsure, consult with a trench safety expert to ensure your site complies with regulations and protects your team.



Conclusion



Trench boxes shield workers, stabilize trenches, and prevent costly delays. They’re essential for safe, efficient construction projects. By following safety guidelines and using trench boxes correctly, teams ensure OSHA compliance and worker protection. For the best results, consult experts to choose the right solution for your needs.



Call-to-Action



Need help selecting a trench box? Contact a trusted supplier or rental service. Ensure proper use by consulting trench safety experts today.
