What is the difference between timber formworks and steel formworks?

I. Introduction



In the world of construction, formwork plays a crucial role in shaping concrete structures. It serves as a temporary mold into which concrete is poured and formed. The choice of formwork material significantly impacts the construction process, project timeline, and overall cost. Among the various materials available, timber and steel stand out as two of the most commonly used options for formwork in building construction.



Formwork, also known as shuttering or molding, is essentially the 'skeleton' of a concrete structure before it gains its final shape and strength. It's a critical element in construction, typically accounting for 20-25% or more of the total project budget. The selection of the right formwork material depends on various factors, including strength, rigidity, leakage control, accessibility, reusability, cost efficiency, endurance, and finishing quality.



In this article, we'll delve deep into the world of timber and steel formworks, exploring their characteristics, advantages, disadvantages, and how they compare in various aspects of building construction. Whether you're a construction professional, a student of architecture, or simply curious about building processes, this comprehensive comparison will provide valuable insights into the crucial decision of choosing between timber and steel formworks.



II. Timber Formwork



A. Definition and composition



Timber formwork is one of the oldest and most traditional types of formwork used in construction. It involves using wooden materials to create molds for concrete structures. Timber formwork can be made from various types of wood, including softwoods like spruce, pine, or fir, as well as engineered wood products like plywood.



B. Types of timber used



1. Solid timber: Usually softwoods are preferred due to their workability and cost-effectiveness.

2. Plywood: Often treated with resin-based coatings to enhance durability and surface quality.

3. Engineered wood: Products like oriented strand board (OSB) are sometimes used for specific applications.



C. Advantages



1. Cost-effectiveness: Timber is generally less expensive than steel, making it an attractive option for smaller projects or when budget constraints are significant.



2. Lightweight and easy handling: The relative lightness of wood makes timber formwork easy to transport, install, and dismantle without the need for heavy machinery.



3. Customizability: Wood can be easily cut, shaped, and modified on-site to accommodate various design requirements or last-minute changes.



4. Moisture absorption properties: Timber has the ability to absorb excess moisture from concrete, which can help prevent cracking and ensure a more consistent finish.



5. Environmental friendliness: Wood is a renewable resource, making timber formwork a more environmentally friendly option when sourced responsibly.



6. Thermal insulation: Timber provides good insulation, helping to maintain consistent concrete temperatures during curing, which is particularly beneficial in colder climates.



7. Flexibility in design changes: The ease of modifying timber formwork on-site allows for greater flexibility in adapting to design changes or unforeseen circumstances during construction.



D. Disadvantages



1. Limited reusability: Timber formwork typically has a shorter lifespan compared to steel, with most sources suggesting it can be reused only 4 to 6 times before requiring replacement.



2. Potential moisture-related issues: If the timber is too dry, it may absorb moisture from the concrete, potentially weakening the resulting structure. Conversely, if the timber has high moisture content (over 20%), it can lead to concrete shrinkage and cupping, resulting in open joints and grout leakage.



3. Shorter lifespan: Timber formwork deteriorates more quickly than steel, especially when exposed to the elements or frequent use.



4. Environmental concerns: While wood is renewable, the use of timber formwork can contribute to deforestation if not sourced sustainably.

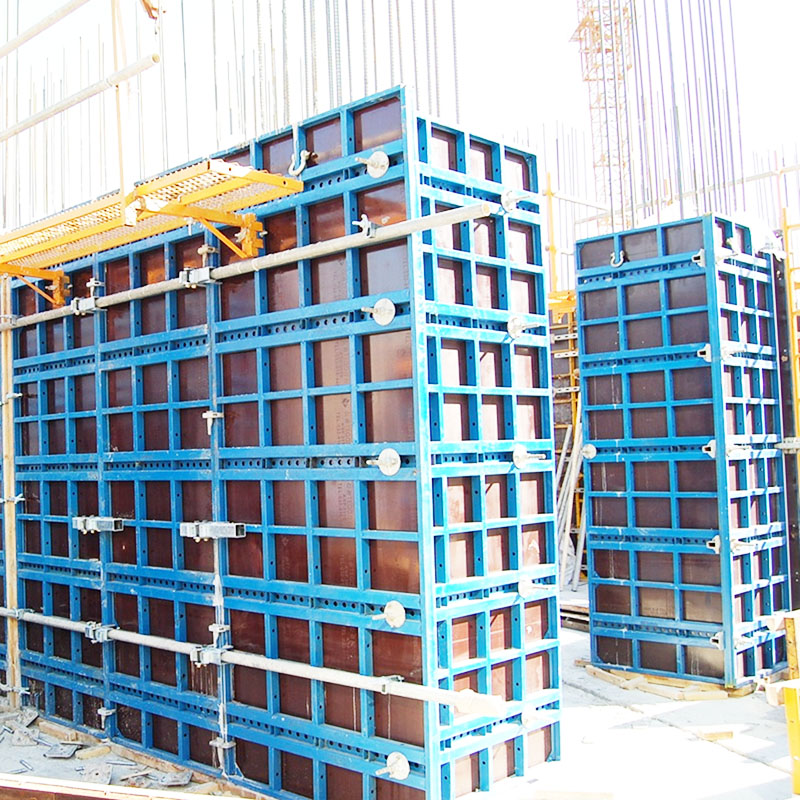

III. Steel Formwork



A. Definition and composition



Steel formwork consists of prefabricated molds made from thin steel plates, typically stiffened at the edges with small steel angles. These panels can be manufactured in various modular shapes and sizes to suit different construction needs.



B. Types of steel formwork



1. Panel systems: Standard steel panels that can be assembled to form larger structures.

2. Modular systems: Pre-engineered systems designed for specific types of structures, such as walls, columns, or slabs.

3. Custom-fabricated forms: Specially designed steel formwork for unique or complex structural elements.



C. Advantages



1. High strength and durability: Steel formwork can withstand high pressures from wet concrete and heavy loads, making it suitable for large-scale projects and high-rise buildings.



2. Excellent reusability: Steel forms can be reused many times (often 20-25 times or more), significantly reducing long-term costs for large projects or companies that frequently use formwork.



3. Precision and uniformity: Steel forms provide consistent dimensions and smooth surfaces, resulting in high-quality concrete finishes that often require minimal additional treatment.



4. Smooth concrete finish: The non-absorbent nature of steel and its smooth surface result in a superior concrete finish, often eliminating the need for further surface treatment.



5. Suitability for large-scale projects: Steel formwork is ideal for projects requiring repetitive use of forms, such as high-rise buildings, bridges, or tunnels.



6. Resistance to warping and shrinkage: Unlike timber, steel formwork maintains its shape and size regardless of environmental conditions or repeated use.



D. Disadvantages



1. Higher initial cost: The upfront investment for steel formwork is significantly higher than for timber, which can be a barrier for smaller projects or companies.



2. Heavier weight: Steel formwork is much heavier than timber, often requiring cranes or other machinery for installation and removal, which can increase overall project costs.



3. Limited flexibility in shape and size: While steel forms come in various standard sizes, they are less easily modified on-site compared to timber, which can be a drawback for projects with unique or changing requirements.



4. Potential for heat loss: In colder climates, steel formwork can lead to excessive heat loss from the concrete, potentially affecting curing times and concrete strength.



5. Corrosion risks: Steel formwork requires proper maintenance to prevent rust and corrosion, especially when used in humid or coastal environments.



IV. Comparison of Timber and Steel Formworks



A. Cost considerations



1. Initial investment:

   - Timber formwork has a lower upfront cost, making it more accessible for smaller projects or companies with limited capital.

   - Steel formwork requires a higher initial investment but can be more cost-effective in the long run for large or repetitive projects.



2. Long-term economics and reusability:

   - While timber formwork is cheaper initially, its limited reusability (4-6 times) means replacement costs can add up over time.

   - Steel formwork, with its ability to be reused 20-25 times or more, often proves more economical for companies that frequently use formwork or for large-scale projects.



B. Performance factors



1. Strength and load-bearing capacity:

   - Steel formwork excels in strength, capable of withstanding higher pressures and loads, making it ideal for large-scale constructions like high-rises, bridges, and dams.

   - Timber formwork, while strong enough for many applications, may require additional support for heavier loads or taller structures.



2. Precision and finish quality:

   - Steel formwork provides superior precision and uniformity, resulting in smoother concrete surfaces that often require minimal additional finishing.

   - Timber formwork can produce good results but may require more effort to achieve the same level of smoothness and precision as steel.



3. Adaptability to different project types:

   - Timber formwork offers greater flexibility for custom shapes and on-site modifications, making it suitable for projects with unique or changing requirements.

   - Steel formwork is ideal for projects with repetitive elements or standardized designs, offering efficiency in assembly and disassembly.



C. Environmental impact



1. Sustainability of materials:

   - Timber, being a renewable resource, can be more environmentally friendly if sourced responsibly.

   - Steel, while not renewable, is highly recyclable and has a longer lifespan, potentially reducing overall resource consumption.



2. Carbon footprint:

   - Timber formwork generally has a lower carbon footprint in production but may contribute to deforestation if not managed sustainably.

   - Steel production has a higher initial carbon footprint, but the material's longevity and recyclability can offset this over time.



3. Recyclability:

   - Both timber and steel are recyclable, but steel has an advantage in terms of the efficiency and completeness of the recycling process.



D. Ease of use



1. Installation and dismantling process:

   - Timber formwork is lighter and easier to handle, often not requiring heavy machinery for installation or removal.

   - Steel formwork, being heavier, typically requires cranes or other machinery, which can increase complexity and cost but may offer faster assembly for large projects.



2. Required skill level for workers:

   - Timber formwork often requires less specialized skills, as it can be modified and adjusted using common carpentry techniques.

   - Steel formwork may require more specialized knowledge for proper assembly and alignment but can be more straightforward for standardized designs.



3. Maintenance needs:

   - Timber formwork requires regular inspection for wear, warping, or damage, and may need treatment to prevent moisture absorption.

   - Steel formwork needs protection against rust and corrosion, particularly in humid or coastal environments, but generally requires less frequent maintenance.



E. Suitability for different project types



1. Small-scale vs large-scale construction:

   - Timber formwork is often preferred for smaller projects due to its lower initial cost and ease of handling.

   - Steel formwork becomes more economical and efficient for larger projects, especially those with repetitive elements.



2. Residential vs commercial buildings:

   - Timber formwork is commonly used in residential construction, particularly for custom homes or smaller apartment buildings.

   - Steel formwork is favored for large commercial projects, high-rise buildings, and infrastructure works where speed and precision are crucial.



3. Specialized structures:

   - For unique architectural designs or restoration projects, timber formwork offers greater flexibility and ease of customization.

   - Steel formwork excels in large infrastructure projects like bridges, dams, and tunnels, where strength and repetition are key factors.



V. Innovations and Trends in Formwork



A. Hybrid systems combining timber and steel



As the construction industry evolves, there's a growing trend towards hybrid formwork systems that combine the benefits of both timber and steel. These systems often use steel frames or supports with timber facing, offering a balance between the strength of steel and the flexibility and cost-effectiveness of timber.



B. Emerging materials



1. Aluminum formwork: Gaining popularity for its lightweight nature and durability, aluminum formwork offers many of the benefits of steel with easier handling.



2. Plastic formwork: Developments in plastic and composite materials are leading to new formwork options that are lightweight, durable, and potentially more environmentally friendly.



C. Technological advancements



1. BIM integration: Building Information Modeling (BIM) is being increasingly used to optimize formwork design and planning, improving efficiency and reducing waste.



2. 3D printing: Experimental use of 3D printing technology for creating formwork, particularly for complex or custom shapes, is an emerging trend.



3. Smart sensors: Integration of sensors in formwork to monitor concrete curing, pressure, and other factors is becoming more common, especially in large-scale projects.



VI. Choosing Between Timber and Steel Formwork



A. Factors to consider in the decision-making process



1. Project scale and budget

2. Required finish quality

3. Speed of construction

4. Environmental considerations

5. Availability of skilled labor

6. Long-term cost implications



B. Project-specific considerations



1. Complexity of design

2. Repetition of elements

3. Load-bearing requirements

4. Project timeline



C. Regional and climate factors



1. Local availability of materials

2. Climate conditions (temperature, humidity)

3. Local construction practices and regulations



VII. Economic Impact of Timber and Steel Formworks



A. Contribution to the construction industry GDP



Both timber and steel formworks play significant roles in the construction industry, which is a major contributor to GDP in many countries. The choice between timber and steel can impact project costs, timelines, and overall economic efficiency of construction projects.



B. Employment generation



1. Timber formwork often requires more labor for installation and modification, potentially creating more jobs in the short term.

2. Steel formwork manufacturing and specialized installation can create high-skilled job opportunities in the long term.



C. Impact on related industries



1. Timber formwork supports the lumber and wood processing industries.

2. Steel formwork contributes to the steel manufacturing sector, often considered a backbone of industrial economies.



D. Cost implications for construction projects



1. Initial investment vs. long-term savings:

   - Timber formwork offers lower upfront costs but may incur higher long-term expenses due to limited reusability.

   - Steel formwork requires higher initial investment but can lead to significant savings in large or repetitive projects.



2. Impact on project timelines and overall budgets:

   - Steel formwork can often lead to faster construction times, potentially reducing overall project costs.

   - Timber formwork's flexibility can help manage unexpected changes without significant cost overruns.



E. Market trends and demand forecasts



1. Timber formwork market:

   - Continues to be strong in residential and small-scale construction.

   - Facing challenges from environmental concerns and the push for more durable solutions.



2. Steel formwork market:

   - Growing demand in emerging economies with booming construction sectors.

   - Increasing adoption in large-scale and infrastructure projects worldwide.



F. Government policies and initiatives



Various government initiatives, such as infrastructure development programs and environmental regulations, can significantly influence the choice between timber and steel formworks. For instance, policies promoting sustainable construction may favor responsibly sourced timber, while large-scale urban development projects might create more demand for steel formwork systems.



VIII. Specialized Applications and Techniques



A. Timber formwork in specialized constructions



1. Architectural concrete and decorative finishes:

   - Timber formwork excels in creating textured or patterned concrete surfaces.

   - It's often preferred for projects requiring a natural or rustic aesthetic.



2. Curved and complex shapes:

   - The flexibility of timber allows for easier creation of curved or irregular forms.

   - It's particularly useful in sculptural or unique architectural designs.



3. Historical restoration projects:

   - Timber formwork is often chosen for restoration work on historical buildings to maintain authenticity.

   - It allows for precise replication of original architectural details.



B. Steel formwork in large-scale and repetitive structures



1. High-rise buildings and skyscrapers:

   - Steel formwork's strength and precision make it ideal for tall structures.

   - Modular steel systems can significantly speed up construction of repetitive floor plans.



2. Bridge and dam construction:

   - The high load-bearing capacity of steel formwork is crucial in these massive structures.

   - Its durability allows for prolonged use in long-term infrastructure projects.



3. Tunnel formwork systems:

   - Specialized steel formwork systems have been developed for efficient tunnel construction.

   - These systems can often cast walls and slabs simultaneously, greatly accelerating the process.



C. Combining timber and steel formworks for optimal results



1. Hybrid systems:

   - Using steel frames with timber panels combines the strength of steel with the flexibility of timber.

   - This approach can be particularly effective in projects with both standardized and custom elements.



2. Complementary use in different parts of the same project:

   - Steel formwork might be used for the main structure, while timber formwork is employed for detailed or custom elements.

   - This strategy allows for optimal use of each material's strengths.



D. Advanced formwork techniques



1. Slip forming and climbing formwork:

   - These techniques, often using steel formwork, allow for continuous concrete pouring in tall structures.

   - They significantly reduce construction time for structures like towers and silos.



2. Self-compacting concrete and its impact on formwork choice:

   - The use of self-compacting concrete can influence formwork selection, often favoring steel due to its ability to withstand higher hydraulic pressures.



3. Prefabricated formwork systems:

   - Both timber and steel are used in prefabricated formwork systems, which can be quickly assembled on-site.

   - These systems are becoming increasingly popular for their efficiency and consistency.



IX. Conclusion



Steel formwork, on the other hand, shines in large-scale, repetitive construction projects where strength, durability, and precision are paramount. Its ability to be reused many times makes it cost-effective for larger operations, despite the higher initial investment.



The construction industry is increasingly recognizing that the choice between timber and steel formwork isn't always an either-or decision. Hybrid systems and complementary use of both materials in different parts of a project are becoming more common, allowing builders to leverage the strengths of each material.



As the industry evolves, innovations in materials and techniques continue to shape the formwork landscape. The emergence of aluminum and plastic formworks, along with advancements in prefabrication and digital technologies, are expanding the options available to construction professionals.



Ultimately, the decision between timber and steel formwork should be based on a careful analysis of project-specific factors, including:



1. Scale and complexity of the project

2. Budget constraints

3. Required finish quality

4. Construction timeline

5. Environmental considerations

6. Local availability of materials and skilled labor

7. Long-term economic implications



Furthermore, the broader economic impact of this choice cannot be overlooked. Both timber and steel formworks contribute significantly to the construction industry's GDP and employment. The selection of formwork material can influence not just individual project outcomes, but also the broader economic landscape of related industries.



As we look to the future, sustainability concerns are likely to play an increasingly important role in formwork selection. This may drive further innovations in both timber and steel formworks, as well as the development of new, more environmentally friendly alternatives.



In conclusion, while timber and steel formworks each have their distinct characteristics and ideal applications, the key to successful construction lies in understanding these differences and making informed choices. By carefully considering project requirements, economic factors, and environmental impact, construction professionals can select the most appropriate formwork solution, or combination of solutions, to ensure optimal results in building construction projects.
