How do you calculate formwork for timber?

Introduction

In the construction industry, the use of timber formwork is a fundamental aspect of creating concrete structures. Accurate calculation of timber formwork is essential to ensure cost-effectiveness, structural integrity, and project efficiency. This comprehensive guide explores the methodologies involved in calculating timber formwork, providing detailed insights into the processes, considerations, and best practices. By understanding these methods, construction professionals can optimize resources, reduce waste, and enhance overall project outcomes. Additionally, we will examine alternative materials like Wall Steel Formwork, offering a comparative perspective to aid in selecting the most suitable formwork for various construction needs.

Understanding Timber Formwork

Timber formwork, one of the oldest and most utilized types of formwork, involves creating molds from timber into which concrete is poured. The flexibility of timber allows for a variety of shapes and sizes, making it ideal for complex or custom architectural designs. Despite the emergence of modern materials, timber remains prevalent due to its availability, ease of fabrication, and adaptability on construction sites. It is particularly favored in projects where bespoke solutions are required, and the cost of manufacturing custom molds from other materials would be prohibitive.

The process of constructing timber formwork demands skilled carpentry. Precision is paramount, as inaccuracies can lead to structural defects in the concrete. Moreover, timber formwork is generally constructed on-site, allowing for adjustments and modifications to accommodate design changes or unforeseen challenges. This adaptability is a significant advantage in dynamic construction environments.

Components of Timber Formwork

Accurate calculation of timber formwork materials requires an in-depth understanding of its components. The primary elements include:

• Sheathing: Boards or panels in direct contact with the concrete, shaping the surface finish of the structure.

• Studs: Vertical members that support the sheathing and transfer loads to the supports.

• Wales: Horizontal members that align and stiffen the studs, providing lateral support.

• Braces: Diagonal supports that stabilize the formwork against lateral forces such as wind or concrete pressure.

• Ties and Clamps: Devices used to hold formwork sections together, resisting the pressure of the fresh concrete.

Understanding the function and interaction of these components is essential for efficient formwork design and material estimation. High-quality timber must be selected to withstand the loads imposed during construction and to prevent deformation or failure.

Methods for Calculating Timber Formwork

Calculating the required quantity of timber for formwork involves meticulous planning and accurate measurements. The two primary methods are the area measurement technique and the piece count method.

Area Measurement Technique

This technique involves calculating the total surface area of the structure that requires formwork. It is particularly useful for straightforward structures like walls and slabs. The process includes:

1. Measuring Dimensions: Obtain the length, width, and height of all elements needing formwork.

2. Calculating Area: Multiply the length and height for each element to find the surface area.

3. Totaling Areas: Sum the areas of all elements to determine the total formwork area.

4. Estimating Material Quantity: Multiply the total area by the unit quantity of material per square meter.

For example, a wall measuring 10 meters in length and 3 meters in height would have a surface area of 30 square meters on one side. If both sides require formwork, the total area is 60 square meters. By knowing the coverage of the sheathing material, you can estimate the number of boards or panels required.

Piece Count Method

The piece count method entails a detailed listing of every component required for the formwork. This approach is advantageous for complex structures and includes:

1. Creating Detailed Drawings: Develop precise sketches or models of the formwork.

2. Listing Components: Identify and list all elements, including sheathing, studs, wales, braces, ties, and fasteners.

3. Calculating Quantities: Determine the quantity of each component based on the design and spacing requirements.

4. Totaling Materials: Sum the quantities to estimate the total material needs.

This method, while more time-consuming, provides higher accuracy and reduces the likelihood of material shortages or excesses.

Factors Affecting Formwork Calculation

Several factors influence the calculation of timber formwork materials:

• Structural Complexity: Complex shapes or architectural features may require additional materials and customized components.

• Timber Quality: The dimensions and grade of timber affect strength and durability, influencing the quantity needed.

• Construction Tolerances: Allowances for cutting, fitting, and adjustments necessitate extra material considerations.

• Waste Factor: An additional percentage (typically 5-10%) added to account for waste due to cutting losses or defects.

• Environmental Conditions: Moisture, temperature, and exposure can impact timber performance, potentially requiring treatments or protective measures.

• Regulatory Requirements: Building codes and standards may dictate specific formwork practices, affecting material calculations.

By accounting for these factors, construction professionals can enhance the accuracy of their calculations, ensuring both efficiency and compliance with safety standards.

Practical Examples of Timber Formwork Calculation

To further illustrate the calculation process, consider the following scenarios:

Example 1: Calculating Formwork for a Concrete Slab Edge

A concrete slab measuring 20 meters in length and 15 meters in width with a thickness of 0.3 meters requires formwork along its edges.

1. Perimeter Calculation: (20 + 15) × 2 = 70 meters.

2. Formwork Height: Equal to slab thickness = 0.3 meters.

3. Total Formwork Area: 70 meters × 0.3 meters = 21 square meters.

4. Sheathing Boards Required: If using 2.4-meter long boards, number of boards = 70 meters / 2.4 meters ≈ 30 boards.

5. Additional Components: Calculate stakes and braces based on spacing (e.g., stakes every 1.5 meters: 70 meters / 1.5 meters ≈ 47 stakes).

Example 2: Calculating Formwork for a Rectangular Column

A column with dimensions 0.5 meters × 0.5 meters and a height of 4 meters.

1. Perimeter of Column: 4 sides × 0.5 meters = 2 meters.

2. Total Formwork Area: 2 meters × 4 meters = 8 square meters.

3. Sheathing Required: Based on board dimensions, calculate the number of boards to cover 8 square meters.

4. Supports and Fasteners: Determine the number of ties, clamps, and braces based on standard practices and safety requirements.

These examples demonstrate the practical application of calculation methods, emphasizing the importance of precision and attention to detail.

Safety Considerations in Timber Formwork

Ensuring safety in formwork construction is critical. Proper design and calculation help prevent structural failures and accidents. Key safety considerations include:

• Load Analysis: Account for the weight of wet concrete, equipment, and workers to determine appropriate support spacing and component sizing.

• Material Quality: Use timber free from defects and appropriately treated to resist environmental conditions.

• Construction Practices: Follow established guidelines and manufacturer recommendations for assembly and installation.

• Inspections: Regularly inspect formwork during construction to identify and address potential issues promptly.

• Training: Ensure all personnel involved are adequately trained in formwork construction and safety protocols.

Incorporating safety margins in calculations, such as increased support sizes or reduced spacing, contributes to a safer construction environment.

Environmental and Sustainability Considerations

Sustainability is an increasingly important aspect of construction. Timber formwork offers environmental benefits when properly managed:

• Renewable Resource: Timber sourced from sustainable forests is renewable and can reduce the carbon footprint.

• Reusability: Timber formwork can be reused multiple times if maintained properly, reducing waste.

• Recycling: At the end of its life cycle, timber can be recycled or repurposed.

• Treated Timber: Using non-toxic treatments minimizes environmental impact.

Balancing the benefits of timber with environmental considerations requires careful planning and adherence to sustainable practices.

Alternative Formwork Materials

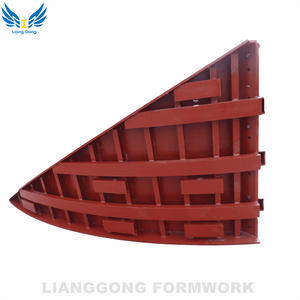

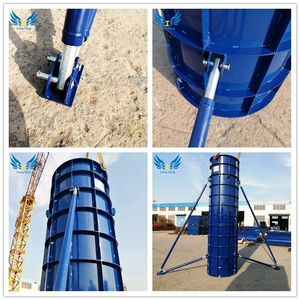

While timber is widely used, alternative materials like steel and aluminum offer distinct advantages. Wall Steel Formwork provides higher strength, durability, and reusability. Benefits of steel formwork include:

• Long Lifespan: Capable of multiple reuses without significant loss of quality.

• Precision: Manufactured to exact specifications for consistent results.

• Efficiency: Modular systems allow for quicker assembly and dismantling.

• Surface Finish: Produces smoother concrete surfaces, reducing the need for finishing work.

Although the initial cost is higher, steel formwork can be more cost-effective over the lifespan of large or repetitive projects. The choice between timber and alternative materials depends on project-specific factors such as scale, budget, and design complexity.

Advancements in Formwork Technology

Technological advancements are transforming formwork design and calculation. Key developments include:

• Building Information Modeling (BIM): Allows for precise 3D modeling, enhancing accuracy in calculations and material estimations.

• Automation: Prefabricated formwork systems reduce on-site labor and improve efficiency.

• Innovative Materials: Introduction of composite materials offers alternatives with improved performance characteristics.

• Engineering Software: Software solutions assist in complex calculations, optimizing design, and adhering to regulatory standards.

Embracing these technologies enables construction professionals to enhance productivity, reduce errors, and stay competitive in a rapidly evolving industry.

Case Studies and Practical Applications

Case Study 1: Residential Building Project

A residential development utilized timber formwork for its flexibility in custom designs. By employing the piece count method for calculation, the project minimized waste and optimized material usage, resulting in a 12% cost savings on formwork materials. The team incorporated sustainable practices by sourcing timber from certified suppliers and reusing formwork components across multiple units.

Case Study 2: Infrastructure Project with Steel Formwork

An infrastructure project involving a series of identical bridges opted for Wall Steel Formwork. The modular steel systems allowed for rapid assembly and dismantling, significantly reducing construction time. The initial investment was offset by the formwork's reusability and the labor cost savings achieved through enhanced efficiency.

Expert Opinions on Formwork Calculation

Industry experts highlight the importance of accurate formwork calculation:

"Precision in formwork calculation is not just about cost control; it's integral to the safety and success of the project. Inadequate formwork can lead to catastrophic failures." — Dr. Alan Wright, Structural Engineer

"The evolution of formwork solutions, particularly with the advent of advanced materials and technologies, necessitates a thorough understanding of both traditional and modern calculation methods." — Susan Lee, Construction Project Manager

These insights underscore the critical role of formwork calculation in achieving project objectives and upholding industry standards.

Conclusion

Calculating timber formwork accurately is a fundamental aspect of construction planning that impacts cost, efficiency, safety, and quality. By employing systematic calculation methods and considering factors like material properties, structural complexity, and environmental impacts, construction professionals can optimize their formwork strategies. While timber remains a versatile and accessible material, alternatives like Wall Steel Formwork offer compelling benefits for certain projects. Staying informed about advancements in formwork technology and integrating best practices ensures that projects are completed successfully, meeting the demands of modern construction and contributing to sustainable development.
