What are the two main types of formwork?

I. Introduction

Formwork, an essential component in concrete construction, is a temporary or permanent mold used to hold and shape concrete until it hardens and becomes self-supporting. The choice of formwork material and system plays a crucial role in ensuring the success, efficiency, and quality of a construction project. Formwork not only determines the final appearance of the concrete structure but also affects construction speed, cost, and safety. In this article, we will explore the two main types of formwork: conventional (traditional) formwork and engineered (modular) formwork. We will delve into their characteristics, applications, advantages, and limitations to help construction professionals make informed decisions when selecting the most suitable formwork system for their projects.



II. Conventional (Traditional) Formwork

Conventional formwork, also known as traditional formwork, is typically constructed on-site using materials such as timber, plywood, or steel. This type of formwork requires skilled labor to construct and is often used for small-scale projects or structures with complex shapes.



A. Timber formwork

Timber is the most common traditional material used for formwork. It is readily available, lightweight, and easy to work with, making it a popular choice for many construction projects. Timber formwork can be easily cut and shaped to create forms of various sizes and configurations. However, timber has limitations, such as a relatively short lifespan compared to other materials, and it may warp or shrink due to moisture exposure.



B. Plywood formwork

Plywood, an engineered wood product made from thin layers of wood veneer, is often used in conjunction with timber frames for formwork. Plywood offers durability and a smooth surface finish to the concrete. It enhances the strength of the formwork structure and is commonly used for sheathing, decking, and form lining.



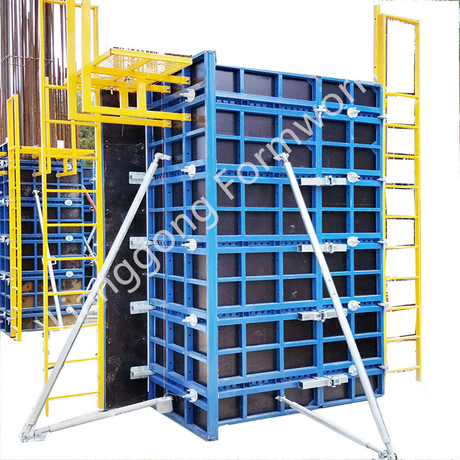

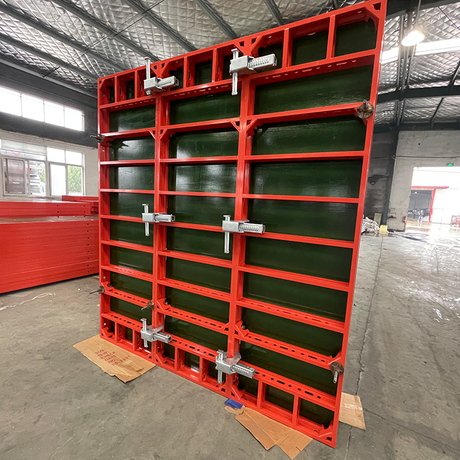

C. Steel formwork

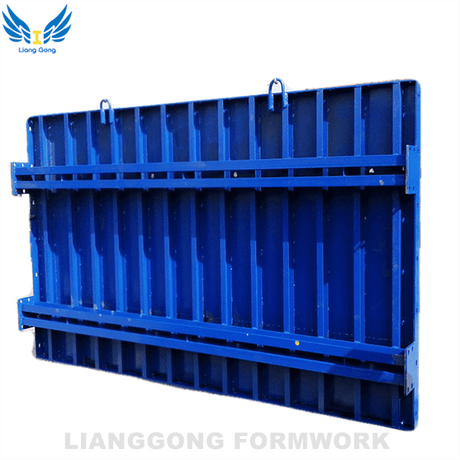

Steel formwork is a heavy-duty option known for its strength, durability, and longevity. Although heavier and more expensive than timber formwork, steel offers numerous benefits. It creates a smooth finish on the concrete surface, reduces the occurrence of honeycombing, and can be used to form curved walls. Steel formwork is ideal for large projects or situations where the same shuttering can be reused multiple times.



D. Applications and suitability

Conventional formwork is suitable for small-scale projects and areas with complex shapes or curved structures, such as tanks, columns, chimneys, sewers, tunnels, and retaining walls. It offers flexibility in creating custom forms and can accommodate unique architectural requirements.



E. Advantages and limitations of conventional formwork

Conventional formwork has the advantage of being adaptable to various project requirements and allowing for on-site modifications. However, it is labor-intensive, time-consuming, and may result in inconsistencies in the finished concrete surface. The reusability of conventional formwork is limited, and it requires proper maintenance and storage to extend its lifespan.



III. Engineered (Modular) Formwork

Engineered formwork, also referred to as modular formwork, is a modern alternative to conventional formwork. It consists of prefabricated components manufactured off-site using advanced materials and technologies. Modular formwork systems are designed for easy assembly, disassembly, and reuse, making them highly efficient and cost-effective.



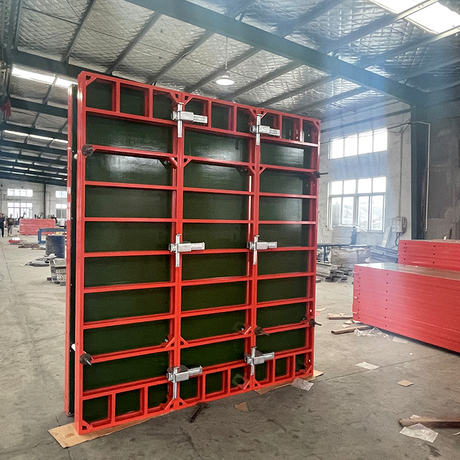

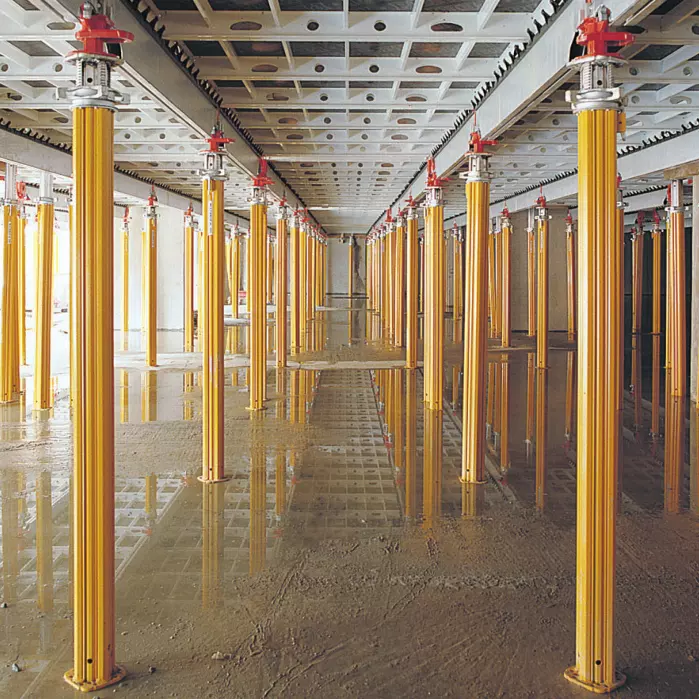

A. Aluminum formwork

Aluminum formwork is a lightweight yet strong option that offers excellent durability and ease of handling. It is resistant to corrosion and weather conditions, making it suitable for various construction environments. Aluminum formwork is often used for repetitive forms and in situations where weight is a concern.



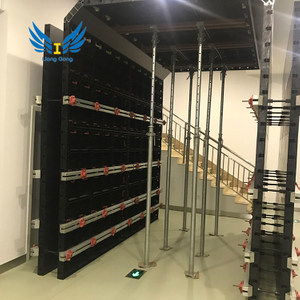

B. Plastic formwork

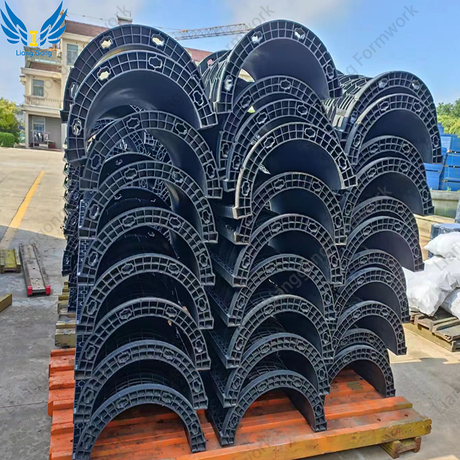

Plastic formwork systems consist of modular or interlocking components made from high-quality, durable plastics. These systems are lightweight, easy to clean, and resistant to corrosion and chemical damage. Plastic formwork is best suited for small projects and precast concrete elements, offering a good surface finish and ease of use.



C. Fabric formwork

Fabric formwork is an innovative solution that uses flexible textile materials to create unique shapes and architectural designs. This type of formwork allows for increased design freedom and can produce complex geometries that are difficult to achieve with conventional methods. Fabric formwork is lightweight and adaptable, making it an attractive option for specialized construction projects.



D. Stay-in-place formwork

Stay-in-place formwork is designed to remain as part of the finished structure after the concrete has cured. It provides additional reinforcement, axial and shear strength, and helps prevent corrosion and environmental damage. Stay-in-place formwork is commonly used for piers, columns, and other structural elements, offering long-term benefits and reduced construction time.



E. Applications and suitability

Engineered formwork is ideal for large-scale, repetitive projects that require high efficiency and speed. It is particularly beneficial in situations where consistency, precision, and a high-quality surface finish are essential. Modular formwork systems are suitable for constructing high-rise buildings, bridges, and other complex structures.



F. Advantages and limitations of engineered formwork

Engineered formwork offers numerous advantages, such as increased construction speed, improved safety, and consistent quality. It reduces labor requirements and minimizes material waste, leading to cost savings. However, engineered formwork systems may have higher initial costs compared to conventional formwork and require specialized training for proper installation and use.



IV. Factors Influencing Formwork Selection

When choosing between conventional and engineered formwork, several factors should be considered to ensure the best fit for a specific construction project.



A. Project scale and complexity

The size and complexity of the project play a significant role in determining the most suitable formwork system. Large-scale projects with repetitive elements often benefit from engineered formwork, while smaller projects with unique requirements may be better suited for conventional formwork.



B. Budget and cost considerations

The overall project budget and cost constraints are crucial factors in formwork selection. While engineered formwork may have higher initial costs, it can lead to long-term savings through increased efficiency, reduced labor, and reusability. Conventional formwork may be more cost-effective for smaller projects or those with limited budgets.



C. Desired surface finish and architectural requirements

The desired surface finish and architectural aesthetics of the concrete structure influence the choice of formwork. Engineered formwork systems often provide a more consistent and high-quality surface finish compared to conventional formwork. Projects with intricate designs or unique shapes may require the flexibility of conventional formwork.



D. Construction timeline and speed

The construction timeline and the need for rapid completion are important considerations. Engineered formwork systems are designed for quick assembly and disassembly, enabling faster construction cycles. Conventional formwork may be more suitable for projects with flexible timelines or those that require on-site modifications.



E. Reusability and sustainability goals

The reusability and sustainability of the formwork system should be taken into account. Engineered formwork systems are often designed for multiple uses, reducing material waste and promoting sustainability. Conventional formwork may have limited reusability, but the materials can be repurposed or recycled when possible.



V. Advancements and Innovations in Formwork Technology

The construction industry is constantly evolving, and formwork technology is no exception. Several advancements and innovations have emerged to improve the efficiency, sustainability, and capabilities of formwork systems.



A. Insulated concrete forms (ICFs)

Insulated concrete forms (ICFs) are a type of stay-in-place formwork that combines the functions of formwork and insulation. ICFs consist of rigid foam blocks or panels that are stacked and filled with concrete, creating a highly insulated and energy-efficient structure. This system offers benefits such as improved thermal performance, reduced construction time, and enhanced durability.



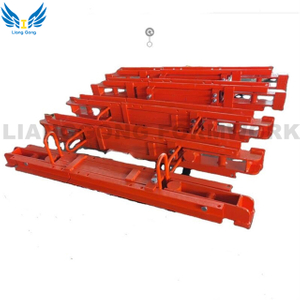

B. Self-climbing and sliding formwork systems

Self-climbing and sliding formwork systems are innovative solutions for high-rise construction. These systems use hydraulic or mechanical mechanisms to lift or slide the formwork vertically as the construction progresses. Self-climbing and sliding formwork eliminate the need for crane support, reduce labor requirements, and enable faster construction cycles.



C. 3D printed formwork

3D printing technology has the potential to revolutionize formwork design and fabrication. With 3D printing, complex and customized formwork components can be produced rapidly and accurately. This technology allows for intricate designs, reduced material waste, and increased flexibility in creating unique architectural elements.



D. Integration of digital technologies in formwork design and planning

The integration of digital technologies, such as Building Information Modeling (BIM) and virtual reality (VR), has transformed the way formwork is designed and planned. BIM allows for the creation of detailed 3D models of formwork systems, enabling better coordination, clash detection, and optimization of material usage. VR technology enables virtual walkthroughs and simulations, helping construction teams to visualize and refine formwork designs before implementation.



VI. Conclusion

In conclusion, understanding the two main types of formwork—conventional and engineered—is crucial for construction professionals to make informed decisions and ensure successful project outcomes. Conventional formwork, with its adaptability and flexibility, remains a viable option for small-scale projects and complex shapes. On the other hand, engineered formwork systems offer increased efficiency, consistency, and speed, making them ideal for large-scale and repetitive projects.



When selecting the most suitable formwork system, construction professionals must consider factors such as project scale, budget, desired surface finish, construction timeline, and sustainability goals. By carefully evaluating these factors and leveraging advancements in formwork technology, construction teams can optimize their processes, reduce costs, and achieve high-quality results.



As the construction industry continues to evolve, it is essential to stay informed about the latest developments in formwork technology. Innovations such as insulated concrete forms, self-climbing and sliding systems, 3D printed formwork, and the integration of digital technologies are shaping the future of formwork and opening up new possibilities for efficient and sustainable construction practices.



VII. Frequently Asked Questions (FAQ)



1. What is the difference between conventional and engineered formwork?

Conventional formwork is typically constructed on-site using materials like timber, plywood, or steel, and requires skilled labor. Engineered formwork consists of prefabricated components manufactured off-site using advanced materials and technologies, designed for easy assembly, disassembly, and reuse.



2. Which type of formwork is more suitable for small-scale projects?

Conventional formwork is often more suitable for small-scale projects or structures with complex shapes, as it offers flexibility in creating custom forms and can accommodate unique architectural requirements.



3. What are the advantages of engineered formwork systems?

Engineered formwork systems offer advantages such as increased construction speed, improved safety, consistent quality, reduced labor requirements, and minimized material waste. They are ideal for large-scale, repetitive projects that require high efficiency and precision.



4. Can conventional formwork materials be reused?

The reusability of conventional formwork is limited compared to engineered systems. However, with proper maintenance and storage, materials like timber and plywood can be used multiple times, although they may deteriorate over time due to exposure to moisture and wear.



5. What factors should be considered when choosing a formwork system?

When selecting a formwork system, consider factors such as project scale and complexity, budget and cost considerations, desired surface finish and architectural requirements, construction timeline and speed, and reusability and sustainability goals.



6. How can advancements in formwork technology benefit construction projects?

Advancements in formwork technology, such as insulated concrete forms (ICFs), self-climbing and sliding systems, 3D printed formwork, and the integration of digital technologies, can improve the efficiency, sustainability, and capabilities of formwork systems. These innovations help optimize processes, reduce costs, and achieve high-quality results.



7. What are the benefits of using insulated concrete forms (ICFs)?

Insulated concrete forms (ICFs) combine the functions of formwork and insulation. They offer benefits such as improved thermal performance, reduced construction time, and enhanced durability, creating highly insulated and energy-efficient structures.



8. How can digital technologies be integrated into formwork design and planning?

Digital technologies like Building Information Modeling (BIM) and virtual reality (VR) can be integrated into formwork design and planning. BIM allows for the creation of detailed 3D models, enabling better coordination and optimization, while VR technology helps visualize and refine formwork designs before implementation.
