Does H20 Timber Beam Slab Formwork Cost Less Than Aluminum?

Cost decisions in slab construction are rarely as simple as comparing a price tag per square meter. When trying to keep budgets under control, contractors and project managers often find themselves debating between two heavyweight solutions: Aluminum Formwork and H20 Timber Beam Formwork.

However, a common misconception in the industry is treating "timber beam formwork" as a single, one-size-fits-all product. In reality, modern H20 timber systems are applied in two distinct ways: Flex-Slab Formwork  and Table Formwork .

To determine which system truly costs less, we must compare aluminum formwork against both timber methods. As a leading manufacturer with over a decade of experience in both timber and aluminum systems, Lianggong Formwork breaks down the real-world cost drivers—flexibility, labor, crane logistics, and concrete finish—to help you make the smartest choice for your next project.

1. Navigating Complex Designs: Flex-Slab Formwork vs. Aluminum Formwork

When a project features irregular layouts, varying slab thicknesses, dense column grids, or complex drop panels, the flexibility of your formwork system directly dictates your overall cost.

The rigid nature of aluminum:
Aluminum formwork is highly standardized and performs incredibly well on highly repetitive, uniform floor plates. However, it lacks flexibility. If the architectural layout is complex or changes mid-project, modifying aluminum panels or manufacturing custom-shaped pieces is astronomically expensive and time-consuming.

The ultimate flexibility of Flex-Slab Formwork:

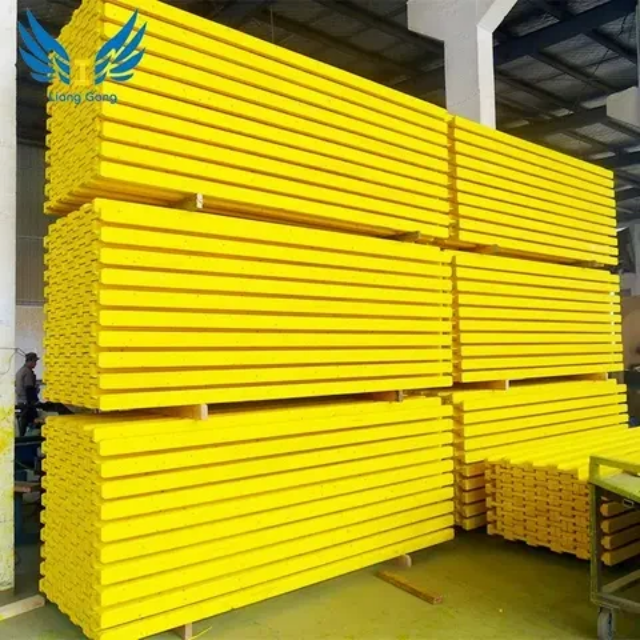

This system consists of high-quality 18mm plywood (such as imported WISA board), primary and secondary H20 timber beams , steel props, tripods and four-way heads. Because it is assembled piece by piece on-site, it can easily adapt to any dimension. Instead of forcing standard panels into non-standard spaces, carpenters simply adjust the spacing of the H20 beams and cut the plywood to fit.

• The Cost Verdict: For complex, non-standard commercial or residential structures, Flex-Slab Formwork is the clear winner. It completely eliminates the massive modification costs and delays associated with aluminum systems.

2. The Truth About Labor and Crane Logistics

A major misunderstanding in the slab formwork debate revolves around crane dependency. Let’s clarify how labor and cranes actually affect your bottom line, especially on multi-story projects.

Aluminum Formwork (Hand-Set but Labor-Intensive):
Aluminum panels are lightweight and designed to be handled manually. While this significantly reduces your reliance on crane time, it comes at a high labor cost. Workers must manually assemble, pin, and later completely dismantle hundreds of individual panels piece by piece, floor by floor.

H20 Table Formwork (Crane-Dependent but Labor-Saving):

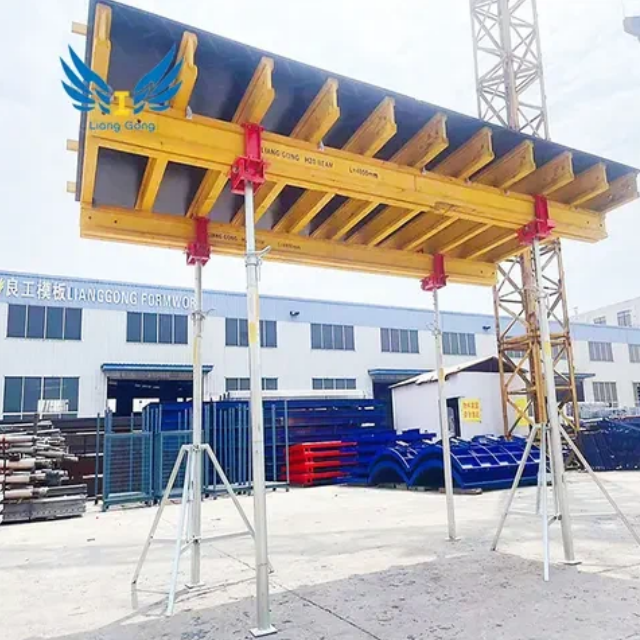

If your project is an open-layout high-rise or an industrial plant, Table Formwork is the ultimate game-changer. It integrates 18mm plywood, H20 main/secondary beams, table heads, and steel props into a single, massive "table" unit.
Here is the major cost-saving secret: It is never dismantled during the project. Once the concrete cures, the entire table is lowered and lifted to the next floor using a crane and a specialized lifting fork ( with a 1-ton capacity).

• The Cost Verdict: If crane time is strictly limited or unavailable, aluminum or Flex-Slab Formwork is necessary. However, if crane time is available, H20 Table Formwork easily outperforms aluminum by slashing labor costs and eliminating the repetitive, piece-by-piece dismantling process.

3. Concrete Finish and Material Amortization

It's not just about the pour; it's about what happens after. Both systems offer high reusability, but their initial investments and Return on Investment (ROI) cycles look very different.

• Premium Concrete Finish: H20 timber beam systems utilize 18mm premium plywood, which offers excellent flatness, water absorption, and breathability. This prevents surface contamination and yields a stunning fair-faced concrete  finish. A better finish means you spend significantly less money downstream on plastering, patching, or grinding.

• Component Reusability & Cash Flow: Aluminum formwork requires a massive upfront investment. While it boasts a high theoretical reuse rate (up to 300 times), this ROI is only achieved if your future projects have the exact same floor plan. Conversely, timber formwork requires a much lower initial investment, freeing up cash flow. While the plywood facing can be turned over up to 35 times, the robust H20 timber beams and steel props are universal assets that can be reused across entirely different future job sites.

(Note: If you are looking to speed up your cycle times, "Early Stripping/Drophead Systems" are specialized add-on solutions available for both timber and aluminum formwork. These should be evaluated based on your specific project schedule.)

Conclusion: Which System Should You Choose?

Ultimately, there is no "one size fits all" answer. The most cost-effective system depends entirely on your project's unique DNA:

1. Choose Aluminum Formwork if you are building standardized residential high-rises with identical floor plates, have a highly trained crew, and want to minimize crane usage.

2. Choose Flex-Slab Formwork if your project features complex geometries, irregular layouts, or varying slab thicknesses. Its unmatched adaptability will save you from the high costs of custom aluminum modifications.

3. Choose H20 Table Formwork if you are building open-layout high-rises or industrial facilities and have crane availability. The ability to fly entire slab sections via lifting forks without dismantling will keep your labor costs to an absolute minimum.

Get Professional Consultancy from Lianggong Formwork

At Yancheng Lianggong Formwork Co., Ltd, we don't just sell equipment—we engineer custom solutions. Whether your project demands the flexibility of Flex-Slab Formwork, the rapid relocation of Table Formwork, or the standardization of Aluminum systems, our technical team is here to assist.

We provide full CAD Technical Planning, ensuring every main beam, secondary beam, and steel prop is perfectly optimized for your specific load and layout before the materials even arrive on site.
