What are formworks in construction?

I. Introduction



A. Definition of formwork



Formwork, in the context of construction, refers to the temporary structures used to contain poured concrete and mold it into the desired shape and size until it hardens sufficiently to be self-supporting. These structures are usually made from timber, steel, aluminum, or prefabricated modules and play a crucial role in the construction of various concrete elements such as walls, columns, slabs, beams, bridges, and tunnels.



Formwork consists primarily of the face contact material (sheathing) that directly contains the wet concrete and the bearers that support the sheathing. The overall assembly, including the sheathing, framing, bracing, ties, and other supporting elements, is collectively known as the formwork system.



B. Importance of formwork in construction



Formwork is an indispensable part of concrete construction projects due to its significant impact on the quality, safety, and cost-effectiveness of the finished structure. Here are some key reasons why formwork is so important:



1. Structural integrity: Well-designed and properly installed formwork ensures that the concrete is poured and cured in the desired shape, size, and position, contributing to the overall strength and stability of the structure.



2. Surface finish: The type of formwork material used affects the final appearance and texture of the concrete surface. Smooth, high-quality formwork can produce a better surface finish, reducing the need for costly remedial work.



3. Cost-effectiveness: Formwork can account for up to 60% of the total cost of a concrete structure. Careful design and selection of the formwork system can significantly reduce labor, material, and equipment costs while also allowing for faster construction times.



4. Safety: Properly designed, erected, and braced formwork is essential for the safety of workers on construction sites. Formwork failures can lead to catastrophic accidents, injuries, and property damage.



5. Architectural flexibility: Advances in formwork technology have enabled architects and engineers to design more complex, innovative, and aesthetically appealing concrete structures that would be difficult or impossible to achieve with traditional formwork methods.



The importance of formwork in the construction industry cannot be overstated. It is a critical element in ensuring the successful completion of any concrete construction project, from small residential buildings to large-scale infrastructure projects. As such, understanding the types, components, design considerations, and best practices related to formwork is essential for architects, engineers, and construction professionals.



II. Types of Formwork



A. Timber Formwork



1. Advantages

   - Flexibility: Timber formwork can be easily cut, shaped, and assembled on-site to accommodate various structural designs and shapes.

   - Cost-effective: Timber is relatively inexpensive compared to other materials, making it an economical choice for small to medium-scale projects.

   - Availability: Timber is widely available and can be sourced locally in most regions.



2. Applications

   - Suitable for building foundations, walls, columns, beams, and slabs in residential and light commercial construction projects.

   - Often used in projects where intricate shapes or curved surfaces are required.

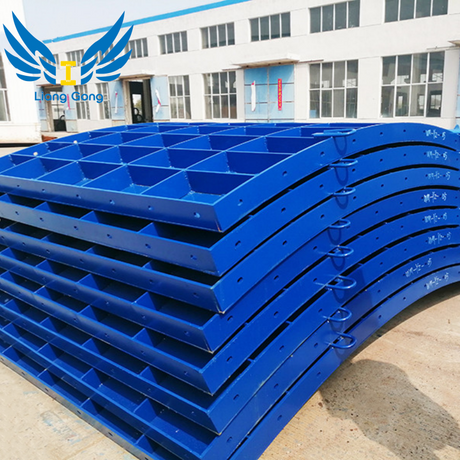

B. Steel Formwork



1. Advantages

   - Durability: Steel formwork is highly durable and can withstand heavy loads and harsh weather conditions.

   - Reusability: Steel forms can be used multiple times, making them cost-effective in the long run.

   - Precision: Steel formwork offers excellent dimensional accuracy and consistency, resulting in high-quality concrete finishes.



2. Applications

   - Ideal for large-scale, repetitive projects such as high-rise buildings, bridges, and industrial structures.

   - Suitable for projects with strict tolerances and high-quality surface finish requirements.



C. Aluminum Formwork



1. Advantages

   - Lightweight: Aluminum formwork is lighter than steel, making it easier to handle, transport, and assemble on-site.

   - Corrosion-resistant: Aluminum forms are naturally corrosion-resistant, reducing maintenance requirements and extending their lifespan.

   - Versatility: Aluminum formwork can be easily fabricated into various shapes and sizes to accommodate complex architectural designs.



2. Applications

   - Commonly used in projects with repetitive designs, such as multi-story buildings and mass housing developments.

   - Suitable for projects where speed of construction is a priority, as aluminum forms can be quickly assembled and dismantled.



D. Plastic Formwork



1. Advantages

   - Lightweight: Plastic formwork is lightweight and easy to handle, reducing labor costs and improving on-site efficiency.

   - Durability: High-quality plastic forms are durable and can be reused multiple times, making them cost-effective in the long run.

   - Smooth finish: Plastic formwork can provide a smooth, high-quality concrete surface finish, minimizing the need for additional surface treatments.



2. Applications

   - Suitable for projects requiring intricate shapes or complex geometries, as plastic forms can be easily molded into various designs.

   - Often used in architectural projects where a smooth, aesthetically pleasing concrete finish is desired.



The following table summarizes the advantages and applications of each type of formwork:



Type of Formwork	Advantages	Applications
Timber	- Flexibility - Cost-effective - Availability	- Residential and light commercial projects - Projects with intricate shapes or curved surfaces
Steel	- Durability - Reusability - Precision	- Large-scale, repetitive projects - Projects with strict tolerances and high-quality surface finish requirements
Aluminum	- Lightweight - Corrosion-resistant - Versatility	- Projects with repetitive designs - Projects where speed of construction is a priority
Plastic	- Lightweight - Durability - Smooth finish	- Projects requiring intricate shapes or complex geometries - Architectural projects requiring a smooth, aesthetically pleasing finish



Choosing the appropriate type of formwork depends on various factors, such as project scale, design complexity, surface finish requirements, budget, and construction timeline. Understanding the advantages and applications of each formwork type enables construction professionals to make informed decisions and optimize project outcomes.



III. Formwork Components & Accessories



A. H20 Timber Beams

   - H20 timber beams are versatile and commonly used components in formwork systems.

   - These beams are engineered wood products made from high-quality lumber, ensuring strength and durability.

   - The unique H-shaped cross-section of H20 beams provides excellent load-bearing capacity while minimizing weight.

   - H20 beams are used as primary support members in formwork systems, such as bearers and joists for slab formwork, and walers for wall formwork.



B. Tie Rods

   - Tie rods, also known as form ties or snap ties, are used to hold formwork panels securely in place and resist the lateral pressure exerted by wet concrete.

   - They consist of a tensile unit that connects the opposing faces of the formwork and an external holding device.

   - Tie rods come in various sizes and load capacities, ranging from 400 kg to over 20,000 kg, to accommodate different project requirements.

   - The spacing and placement of tie rods are critical factors in ensuring the stability and structural integrity of the formwork system.



C. Wing Nuts

   - Wing nuts are fastening devices used in conjunction with tie rods to secure formwork components in place.

   - They feature a pair of "wings" or protrusions that allow for easy hand-tightening and loosening without the need for additional tools.

   - Wing nuts provide a quick and convenient way to assemble and disassemble formwork systems on-site.

   - The use of wing nuts streamlines the formwork installation process and reduces labor time and costs.



D. Steel Walers

   - Steel walers are horizontal structural members used to distribute the load from the tie rods and provide additional support to the formwork faces.

   - They are typically made from steel channels or I-beams and are placed perpendicular to the formwork face.

   - Steel walers help maintain the alignment and stability of the formwork system, preventing deflection and ensuring a consistent concrete finish.

   - The size and spacing of steel walers are determined based on the design requirements, concrete pressure, and the type of formwork system being used.



E. Other Formwork Accessories

   - Clamps: Various types of clamps, such as wedge clamps and universal clamps, are used to secure formwork components together and maintain their alignment.

   - Scaffolding: Scaffolding systems, including access platforms and support towers, are often used in conjunction with formwork to provide safe access for workers and support for the formwork structure.

   - Braces: Bracing elements, such as diagonal braces and cross braces, are used to provide lateral stability to the formwork system and resist wind loads and other external forces.

   - Form release agents: Chemical release agents are applied to the formwork face to prevent the concrete from bonding to the formwork material, facilitating easier stripping and reducing surface defects.

   - Chamfer strips: Chamfer strips are used to create chamfered edges on concrete elements, providing a neat and aesthetically pleasing finish while also reducing the risk of chipping and damage.



The selection and use of formwork accessories depend on the specific requirements of the construction project, including the type of formwork system, concrete mix design, structural loads, and site conditions. Proper use of these accessories ensures the safety, stability, and quality of the formwork system and the resulting concrete structure.



Component/Accessory	Purpose
H20 Timber Beams	Primary support members for slab and wall formwork
Tie Rods	Resist lateral pressure and secure formwork panels
Wing Nuts	Facilitate quick and easy assembly/disassembly of formwork
Steel Walers	Distribute loads and maintain alignment of formwork
Clamps	Secure formwork components and maintain alignment
Scaffolding	Provide safe access for workers and support for formwork
Braces	Provide lateral stability and resist external forces
Form Release Agents	Prevent concrete bonding and facilitate formwork stripping
Chamfer Strips	Create chamfered edges and improve concrete finish



By understanding the functions and applications of these formwork components and accessories, construction professionals can design and construct efficient, safe, and high-quality formwork systems that meet the specific needs of their projects.



IV. Formwork Design Considerations



A. Quality

   - Formwork design should prioritize the quality of the finished concrete structure.

   - The formwork must be designed and constructed accurately to achieve the desired shape, size, alignment, and surface finish of the concrete.

   - Quality considerations include the selection of appropriate form materials, ensuring proper fitting and sealing of formwork joints, and providing adequate bracing and support to maintain the formwork's structural integrity.



B. Economy

   1. Cost of materials

      - The choice of formwork materials directly impacts the overall cost of the project.

      - Designers should consider the initial cost of materials, as well as their durability and potential for reuse.

      - Opting for materials with longer lifespan and higher reusability can lead to cost savings in the long run.



   2. Labour cost

      - Formwork design should aim to minimize labor costs associated with assembly, erection, and dismantling of the formwork system.

      - Simplifying the design, using modular components, and incorporating prefabricated elements can significantly reduce labour time and costs.

      - Providing clear and concise assembly instructions and ensuring easy access for workers can further enhance labor efficiency.



   3. Equipment cost

      - The design should take into account the cost of equipment required for handling, erecting, and dismantling the formwork.

      - Minimizing the need for specialized equipment and optimizing the use of standard, readily available tools can help control equipment costs.

      - Designers should also consider the compatibility of the formwork system with the available equipment on-site.



C. Safety

   - Formwork design must prioritize the safety of workers involved in the construction process.

   - The design should incorporate features that minimize the risk of falls, slips, and trips, such as providing stable working platforms, safe access routes, and adequate fall protection measures.

   - The formwork should be designed to withstand all anticipated loads, including the weight of the concrete, construction equipment, and workers, with an appropriate safety factor.

   - Regular inspections and maintenance of the formwork system are crucial to ensure its structural integrity and prevent failures that could lead to accidents.



D. Constructability

   1. Design repetition

      - Incorporating repetition in the formwork design can significantly improve constructability and efficiency.

      - Designing the formwork system with standardized components and consistent dimensions allows for faster assembly and reduces the need for custom fabrication on-site.

      - Repetitive designs also facilitate the reuse of formwork elements across different stages of the project or in future projects.



   2. Dimensional standards

      - Adhering to dimensional standards in formwork design improves compatibility with readily available formwork products and accessories.

      - Using standard dimensions for formwork components, such as panel sizes and support spacing, streamlines the procurement process and reduces waste.

      - Standardization also promotes interchangeability of components and simplifies the assembly process.



   3. Dimensional consistency

      - Maintaining dimensional consistency throughout the formwork design is crucial for efficient construction.

      - Consistent dimensions for formwork elements, such as beam and column sizes, minimize the need for custom adjustments on-site.

      - Dimensional consistency also facilitates the use of prefabricated components and modular systems, reducing labor time and costs.



E. Loads on formwork

   1. Lateral pressure of fresh concrete

      - The formwork design must account for the lateral pressure exerted by fresh concrete on vertical forms.

      - The pressure is influenced by factors such as the density of the concrete mix, placement rate, temperature, and the use of admixtures.

      - Designers should refer to relevant standards and guidelines, such as ACI 347, to determine the appropriate design pressure and specify the required form strength and bracing.



   2. Vertical loads

      - Formwork design must consider the vertical loads imposed by the weight of the concrete, reinforcement, and any additional construction loads.

      - The design should ensure that the formwork system can safely support the anticipated loads without excessive deflection or failure.

      - Designers should also account for the potential impact of construction equipment, such as concrete pumps and vibrators, on the formwork structure.



F. Form design calculations

   - Formwork design calculations are essential to ensure the structural adequacy and safety of the formwork system.

   - Designers should perform calculations to determine the required strength and stiffness of the formwork components, such as sheathing, framing, and support members.

   - The calculations should take into account the anticipated loads, including lateral pressure, vertical loads, and any additional construction loads.

   - Formwork design calculations should comply with relevant standards and codes, such as ACI 347 and local building regulations.

   - The design calculations should be documented and certified by a qualified engineer to ensure the formwork system meets the required safety and performance criteria.



The following table summarizes the key design considerations for formwork:

Design Consideration	Key Points
Quality	- Achieve desired shape, size, alignment, and surface finish - Select appropriate materials and ensure proper fitting and sealing
Economy	- Consider cost of materials, labor, and equipment - Opt for durable and reusable materials, simplify design, and use modular components
Safety	- Minimize risk of falls, slips, and trips - Design formwork to withstand anticipated loads with appropriate safety factor
Constructability	- Incorporate design repetition, adhere to dimensional standards, and maintain dimensional consistency - Facilitate efficient assembly, reuse, and compatibility with available resources
Loads on formwork	- Account for lateral pressure of fresh concrete and vertical loads - Refer to relevant standards and guidelines for design pressures and load calculations
Form design calculations	- Perform calculations to determine required strength and stiffness of formwork components - Comply with relevant standards and codes, and document and certify calculations



By carefully considering these design aspects, formwork designers can create efficient, safe, and cost-effective formwork systems that ensure the quality of the finished concrete structure while optimizing the construction process.



V. Formwork Construction Process



A. Erecting formwork frames

   - Formwork frames should be erected progressively to ensure the stability of the overall structure and the safety of the installers.

   - The erection process should follow the design specifications and manufacturer's instructions, considering factors such as frame spacing, bracing requirements, and designated access ways.

   - Braces should be attached to the frames as soon as practicable to provide lateral stability and prevent instability due to factors like wind loading.

   - As the height of the formwork frames increases, the need for lateral stability becomes more critical, and additional bracing should be installed accordingly.



B. Formwork false decks

   - False decks, also known as temporary decks or working platforms, are installed within the formwork frames to provide a safe working surface for personnel.

   - False decks are typically positioned at a height of 2 meters or less below the formwork deck being constructed to minimize the risk of falls.

   - The false deck should be continuous and cover the entire area of the formwork, with gaps only allowed where vertical members of the frames pass through the deck.

   - The false deck should be designed to support the expected load of workers, materials, and any potential falling objects, with a minimum width of 450 mm for intermediate platforms.



C. Intermediate platforms

   - Intermediate platforms are used when the distance between the false deck and the formwork deck being constructed is less than 2 meters.

   - These platforms provide a safe working surface for personnel installing bearers, joists, and other formwork components.

   - Intermediate platforms should be at least 450 mm wide and be positioned at a height that allows for safe and efficient work without introducing additional manual handling risks.



D. Installing bearers and joists

   - Bearers are the primary horizontal support members that transfer the load from the formwork deck to the frames, while joists are the secondary support members that span between the bearers.

   - Bearers should be positioned on the frames using U-heads or other suitable connections to prevent dislodgement, with a minimum of two connections per bearer.

   - Joists should be installed perpendicular to the bearers, with the spacing and size determined by the design specifications and the anticipated loads.

   - When installing bearers and joists, workers should use a secure working platform, such as a false deck or intermediate platform, to minimize the risk of falls.



E. Laying deck formwork

   - Deck formwork, typically made of plywood or other engineered wood products, is placed on top of the joists to create the surface for the concrete pour.

   - The placement of deck formwork should follow a progressive sequence, starting from the perimeter of the structure and moving inward.

   - Deck formwork sheets should be securely fastened to the joists using nails, screws, or other appropriate fixings to prevent dislodgement during the concrete pour.

   - Any gaps between the deck formwork sheets should be sealed to prevent concrete leakage and ensure a smooth finish.



F. Penetrations

   - Penetrations in the formwork deck, such as those for services or temporary openings, should be planned and incorporated into the formwork design.

   - The size, location, and reinforcement of penetrations should be clearly specified in the design drawings and communicated to the formwork installation team.

   - Penetrations should be securely formed and braced to maintain their position during the concrete pour and to prevent any movement or collapse.

   - Safety measures, such as temporary covers or guardrails, should be installed around penetrations to mitigate the risk of falls or objects falling through the openings.



G. Pre-loading inspection and certification

   - Before any loading is applied to the formwork, including the placement of reinforcement or the pouring of concrete, a thorough inspection should be conducted by a competent person, such as a formwork engineer or supervisor.

   - The inspection should verify that the formwork has been erected in accordance with the design specifications, manufacturer's instructions, and relevant standards, such as AS 3610 (Australia) or ACI 347 (USA).

   - Any deficiencies or non-conformances identified during the inspection should be rectified before proceeding with loading.

   - Once the formwork has been inspected and deemed satisfactory, a certification or approval should be issued by the competent person, confirming that the formwork is safe for loading.



H. Concrete placement and monitoring

   - Concrete placement should be carried out in a controlled and systematic manner, following the specified pour sequence and rate to minimize the risk of formwork failure or collapse.

   - During concrete placement, the formwork should be continuously monitored by a designated competent person to identify any signs of distress, excessive deflection, or instability.

   - The placement rate should be controlled to ensure that the lateral pressure on the formwork does not exceed the design limits, taking into account factors such as concrete density, temperature, and the use of admixtures.

   - Any issues identified during concrete placement should be immediately addressed, and the placement should be suspended if necessary to allow for remedial actions or repairs.



I. Pre-stripping certification

   - Before commencing the stripping of formwork, a pre-stripping certification should be obtained from a competent person, such as a structural engineer.

   - The certification should confirm that the concrete has reached sufficient strength to support its own weight and any imposed loads, and that the formwork can be safely removed without compromising the structural integrity of the concrete element.

   - The timing of formwork removal should be based on the specified concrete strength, curing conditions, and the design requirements, with due consideration given to factors such as the type of cement, ambient temperature, and the use of accelerators or retarders.



J. Stripping and dismantling formwork

   - The stripping and dismantling of formwork should be carried out in a controlled and progressive manner, following a pre-determined sequence to ensure the stability of the structure and the safety of the workers.

   - Formwork components should be carefully removed, avoiding any sudden or excessive loading on the concrete elements, and minimizing the risk of damage to the concrete surface.

   - Stripped formwork components should be properly stacked, stored, and maintained to prevent damage and ensure their suitability for reuse in future projects.

   - Any temporary bracing or support required during the stripping process, such as back propping or reshoring, should be installed in accordance with the design specifications and remain in place until the concrete has reached its full design strength.



The following table summarizes the key stages and considerations in the formwork construction process:

Stage	Key Considerations
Erecting formwork frames	- Progressive erection for stability and safety - Bracing requirements and lateral stability
Formwork false decks	- Continuous decks at a maximum of 2 meters below the working deck - Designed to support expected loads and provide safe access
Intermediate platforms	- Used when the distance between the false deck and working deck is less than 2 meters - Minimum width of 450 mm for safe working conditions
Installing bearers and joists	- Bearers positioned using U-heads or suitable connections - Joists installed perpendicular to bearers, spaced according to design
Laying deck formwork	- Progressive placement starting from the perimeter - Secure fastening and sealing of sheets to prevent leakage
Penetrations	- Planned and incorporated into the formwork design - Securely formed, braced, and protected to mitigate risks
Pre-loading inspection and certification	- Thorough inspection by a competent person to verify compliance with design and standards - Certification issued to confirm formwork is safe for loading
Concrete placement and monitoring	- Controlled placement following specified sequence and rate - Continuous monitoring for signs of distress or instability
Pre-stripping certification	- Certification by a competent person to confirm concrete strength and formwork removal safety - Timing based on specified strength, curing conditions, and design requirements
Stripping and dismantling formwork	- Controlled and progressive removal to ensure stability and safety - Proper stacking, storage, and maintenance of formwork components



By following these stages and considerations, formwork contractors can ensure the safe, efficient, and compliant construction of formwork systems, ultimately contributing to the quality and structural integrity of the finished concrete structure.



VI. Special Formwork Applications



A. Wall and column forms

   1. Wind loading considerations

      - Wall and column forms should be designed to withstand wind loads before, during, and after concrete placement.

      - The formwork design should account for the expected wind speeds, exposure conditions, and the duration of the formwork's exposure to wind.

      - Bracing and anchorage should be provided to resist the lateral wind forces and prevent overturning or displacement of the formwork.



   2. Bracing

      - Adequate bracing is essential for the stability and safety of wall and column forms, particularly for tall or slender elements.

      - Bracing can be provided using horizontal and diagonal members, such as steel pipes, timber, or proprietary systems, connected to the formwork and anchored to stable points.

      - The bracing system should be designed to resist both compression and tension forces induced by wind, concrete pressure, and other loads.

      - The spacing and configuration of the bracing should be determined based on the formwork height, concrete pressure, and site conditions.



   3. Access platforms

      - Safe and efficient access to wall and column forms is crucial for workers involved in reinforcement installation, concrete placement, and formwork inspection.

      - Access platforms, such as scaffolding, mobile towers, or mast-climbing work platforms, should be provided to enable workers to reach all parts of the formwork safely.

      - The access platforms should be designed to withstand the expected loads, including the weight of workers, equipment, and materials, and should be equipped with guardrails, toe boards, and other fall protection measures.

      - The platforms should be positioned and configured to minimize the risk of interference with the formwork or reinforcement and to facilitate efficient work processes.



   4. Lifting methods

      - Wall and column forms often require lifting and positioning using cranes or other mechanical handling equipment.

      - The formwork design should incorporate suitable lifting points, such as lifting anchors, sockets, or lugs, to facilitate safe and stable lifting operations.

      - The lifting points should be designed to withstand the expected loads, including the self-weight of the formwork, the weight of the concrete, and any dynamic forces induced during lifting.

      - Lifting procedures should be planned and executed by trained personnel, following safe work practices and the manufacturer's instructions for the lifting equipment and accessories.



B. Slab formwork

   - Slab formwork is used to support the construction of horizontal concrete elements, such as suspended slabs, beams, and bridge decks.

   - The design of slab formwork should consider factors such as the slab thickness, span, loading conditions, and deflection limits.

   - Slab formwork typically consists of a system of bearers, joists, and decking material, supported by props, scaffolding, or other load-bearing structures.

   - The formwork should be designed to accommodate the anticipated concrete pressures, construction loads, and any temporary storage or access requirements.

   - Shoring and reshoring may be required to support the slab formwork and the newly placed concrete until the concrete reaches sufficient strength to support its own weight and any imposed loads.



C. Climbing formwork

   - Climbing formwork is a specialized system used for the construction of tall vertical structures, such as high-rise buildings, towers, and bridges.

   - The system consists of modular formwork units that can be lifted or "climbed" to the next level as the construction progresses, using hydraulic jacks or other mechanical means.

   - Climbing formwork allows for the efficient and continuous construction of vertical elements, reducing the need for crane time and minimizing the disruption to other construction activities.

   - The design of climbing formwork should consider factors such as the climbing sequence, load transfer mechanisms, access and egress for workers, and the integration with other building systems.

   - Climbing formwork requires specialized design, planning, and execution, and should be undertaken by experienced contractors with a thorough understanding of the system's capabilities and limitations.



D. Tunnel forms

   - Tunnel forms, also known as traveling forms or sliding forms, are used for the construction of linear structures with a constant cross-section, such as tunnels, culverts, and sewers.

   - The system consists of a self-contained formwork unit that is propelled forward as the concrete is placed, allowing for continuous and rapid construction.

   - Tunnel forms typically incorporate features such as integrated reinforcement, concrete placement and compaction equipment, and facilities for worker access and material handling.

   - The design of tunnel forms should consider factors such as the cross-sectional profile, concrete mix design, placement rate, and the control of alignment and grade.

   - Tunnel form construction requires careful planning and coordination to ensure the smooth and efficient progress of the works, as well as the safety of the personnel involved.



VII. Advances in Formwork Technology



A. Efficiency improvements

   - Recent advances in formwork technology have focused on improving the efficiency and productivity of formwork construction processes.

   - Modular formwork systems, such as pre-assembled panels and self-climbing units, have been developed to reduce on-site labor and assembly time.

   - The use of lightweight materials, such as aluminum and composite plastics, has enabled faster handling and transportation of formwork components.

   - Digital technologies, such as Building Information Modeling (BIM) and 3D printing, have been applied to formwork design and fabrication, enabling more accurate and efficient production processes.



B. Health and safety innovations

   - Formwork designers and manufacturers have increasingly focused on developing solutions that enhance the health and safety of workers involved in formwork construction.

   - Integrated safety features, such as built-in guardrails, access platforms, and fall arrest systems, have been incorporated into formwork systems to reduce the risk of falls from height.

   - Ergonomic improvements, such as lightweight materials and adjustable components, have been introduced to minimize the manual handling risks associated with formwork assembly and dismantling.

   - Remote-controlled and automated systems, such as self-climbing formwork and robotic placement equipment, have been developed to reduce the need for workers to operate in hazardous or confined spaces.



C. Sustainability considerations

   - The formwork industry has recognized the importance of incorporating sustainability principles into the design and use of formwork systems.

   - Reusable and recyclable materials, such as steel and aluminum, have been increasingly employed to minimize waste and reduce the environmental impact of formwork construction.

   - Formwork systems with longer service lives and higher reuse rates have been developed to optimize resource efficiency and reduce the embodied carbon of construction projects.

   - The use of sustainably sourced timber and wood-based products, such as Forest Stewardship Council (FSC) certified plywood, has been promoted to support responsible forest management practices.

   - Formwork designers have explored the use of innovative materials, such as low-carbon concrete and recycled aggregates, to reduce the environmental footprint of concrete construction.



The following table summarizes the key aspects and considerations of special formwork applications and advances in formwork technology:



Category	Key Aspects and Considerations
Wall and column forms	- Wind loading and bracing requirements - Safe access platforms and lifting methods
Slab formwork	- Design for concrete pressures, construction loads, and deflection limits - Shoring and reshoring requirements
Climbing formwork	- Modular units for continuous vertical construction - Specialized design, planning, and execution
Tunnel forms	- Self-contained units for linear structures with constant cross-section - Concrete mix design, placement rate, and alignment control
Efficiency improvements	- Modular systems, lightweight materials, and digital technologies - Reduced on-site labor and assembly time
Health and safety innovations	- Integrated safety features and ergonomic improvements - Remote-controlled and automated systems
Sustainability considerations	- Reusable and recyclable materials, longer service lives - Sustainably sourced timber and low-carbon materials



By understanding and leveraging these special formwork applications and technological advancements, construction professionals can optimize the efficiency, safety, and sustainability of their formwork projects, ultimately contributing to the overall success and performance of the built environment.



VIII. Conclusion



A. Recapping key points about formwork types, design, construction

   - Formwork is a critical component of concrete construction, providing temporary support and molding for fresh concrete until it gains sufficient strength to be self-supporting.

   - Various types of formwork, including timber, steel, aluminum, and plastic, offer unique advantages and are suited to different applications based on factors such as project scale, design complexity, and surface finish requirements.

   - Formwork design must consider multiple aspects, such as quality, economy, safety, constructability, and the loads imposed on the formwork, to ensure the optimal performance and cost-effectiveness of the system.

   - The formwork construction process involves several key stages, from erecting frames and installing decks to concrete placement, monitoring, and formwork stripping, each requiring careful planning, execution, and adherence to safety standards.

   - Special formwork applications, such as wall and column forms, slab formwork, climbing formwork, and tunnel forms, demand specialized design and construction approaches to address unique challenges and optimize efficiency.



B. Importance of proper formwork for safe, efficient, high-quality concrete structures

   - Proper formwork is essential for ensuring the safety of workers and the public throughout the construction process and the service life of the concrete structure.

   - Well-designed and executed formwork minimizes the risk of failures, collapses, and accidents, which can result in injuries, fatalities, property damage, and significant project delays and costs.

   - Formwork plays a crucial role in achieving the required quality of the finished concrete structure, including its shape, dimensions, alignment, and surface finish, which directly impact its appearance, functionality, and durability.

   - Efficient formwork systems and practices contribute to the overall productivity and cost-effectiveness of concrete construction projects, reducing labor, material, and equipment costs while accelerating construction schedules.

   - By incorporating sustainability considerations into formwork design and use, such as material selection, reusability, and waste reduction, the construction industry can minimize its environmental impact and promote more sustainable built environments.



In conclusion, formwork is a vital element of concrete construction that directly influences the safety, quality, efficiency, and sustainability of the built environment. As the construction industry continues to evolve and face new challenges, it is essential for professionals to stay informed about the latest developments in formwork technology, design, and best practices. By understanding the principles, applications, and innovations in formwork systems, construction stakeholders can make informed decisions that optimize the performance, value, and impact of their projects.



The following table summarizes the key points discussed in this article:



Section	Key Points
Types of Formwork	- Timber, steel, aluminum, and plastic formwork systems - Advantages and applications of each type
Formwork Components and Accessories	- Primary components: sheathing, framing, ties, anchors, spacers - Accessories for specific applications and functions
Formwork Design Considerations	- Quality, economy, safety, constructability, and loads - Design calculations and compliance with standards
Formwork Construction Process	- Erecting frames, installing decks, concrete placement, monitoring, stripping - Key stages, considerations, and safety requirements
Special Formwork Applications	- Wall and column forms, slab formwork, climbing formwork, tunnel forms - Specialized design and construction approaches
Advances in Formwork Technology	- Efficiency improvements, health and safety innovations, sustainability considerations - Modular systems, digital technologies, lightweight materials, integrated safety features



By leveraging this knowledge and collaborating with experienced formwork professionals, construction stakeholders can successfully navigate the complexities of formwork systems and deliver safe, efficient, high-quality concrete structures that meet the evolving needs of society and the environment.
