How to make formwork for a column?

Introduction

In the field of concrete construction, formwork serves as a critical component in shaping and supporting fresh concrete until it hardens and achieves sufficient strength. Specifically, creating formwork for columns demands precision and understanding of the materials and methods involved. Timber formwork, in particular, is widely used due to its versatility, ease of handling, and cost-effectiveness. This article provides a comprehensive guide on how to make formwork for a column, offering detailed insights for factories, channel merchants, and distributors involved in Concrete Pouring Construction Timber Formwork.

Understanding Column Formwork

Column formwork is a temporary structure used to contain and mold poured concrete into the desired shape and size. It must be strong enough to withstand the pressure of the fresh concrete and any additional loads during construction. Timber formwork for columns is commonly constructed using plywood and lumber, making it suitable for various sizes and shapes, including square, rectangular, circular, or customized cross-sections.

Advantages of Timber Formwork

Timber formwork offers several benefits:

• Easy to produce and assemble on-site, allowing for flexibility in design.

• Lightweight compared to metal formworks, facilitating manual handling.

• Cost-effective for small-scale projects or when reuse is limited.

• Environmentally friendly when sourced from sustainable forestry practices.

Materials and Tools Required

To construct timber formwork for a column, the following materials and tools are required:

Materials

• Plywood sheets (preferably waterproof and of adequate thickness, usually 18-21mm).

• Lumber for studs and walers (typically 50mm x 100mm or 2"x4" dimensions).

• Nails and screws for fastening.

• Formwork tie rods and bolts to hold formwork sides together under pressure.

• Release agent to prevent concrete from adhering to the formwork.

Tools

• Saw (hand saw or circular saw) for cutting timber and plywood.

• Hammer and nail gun for fastening.

• Measuring tape and square for accurate measurements.

• Level to ensure plumb and level formwork.

• Drill for making holes for tie rods if necessary.

• Personal protective equipment (PPE) such as gloves, safety glasses, and hard hats.

Step-by-Step Guide to Making Column Formwork

Creating timber formwork for a column involves a series of methodical steps to ensure safety, structural integrity, and the desired surface finish of the concrete. Below is a detailed guide outlining each step.

1. Planning and Design

Begin by reviewing the structural drawings to determine the dimensions and shape of the column. Calculate the pressures exerted by fresh concrete to ensure the formwork will withstand these forces. Consider factors such as the rate of pour, concrete temperature, and any vibration that may be applied.

2. Material Preparation

Select high-quality timber and plywood free from defects such as knots, warping, or splits. Cut the plywood sheets and lumber to the required sizes based on the column dimensions plus allowances for assembly and support structures.

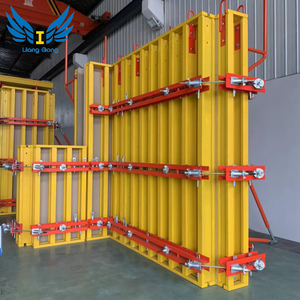

3. Assembly of Formwork Panels

Construct the formwork panels on a flat surface:

• Side Panels: Nail or screw the lumber studs vertically to the backside of the plywood at regular intervals (usually every 600mm). These studs provide rigidity to the panels.

• Walers: Attach horizontal walers across the studs to distribute loads and prevent bulging. Place walers near the top, middle, and bottom of the panels.

• Tie Rod Holes: If using tie rods, drill holes through the walers and plywood where tie rods will be placed.

4. Application of Release Agent

Apply a thin, even coat of release agent to the inner surfaces of the plywood to prevent the concrete from sticking. This step facilitates easier stripping of the formwork after the concrete has set and helps achieve a smoother surface finish.

5. Positioning Reinforcement

Erect the steel reinforcement (rebar) cage for the column as per the structural engineer's specifications. Ensure the reinforcement is properly tied and spacers are used to maintain the correct cover to the concrete surface.

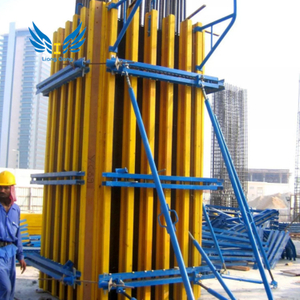

6. Erecting the Formwork

Erect the formwork panels around the reinforcement cage:

• Initial Placement: Position one side panel against the reinforcement, ensuring it is plumb and aligned correctly.

• Assembling Panels: Bring the adjacent panels into position, securing them together at the corners using nails, screws, or specialized clamps.

• Tie Rod Installation: Install tie rods through the pre-drilled holes, securing them with washers and nuts to hold the panels together and resist lateral pressure.

• Bracing: Install external bracing to prevent movement. Diagonal braces anchored to the ground can provide additional stability against wind loads or accidental impacts.

• Alignment Check: Use levels and plumb bobs to check and adjust the formwork to ensure it is vertical and correctly positioned.

7. Inspection Before Pouring

Conduct a thorough inspection to verify:

• All connections are secure.

• Formwork is clean and free of debris.

• Reinforcement is correctly positioned with appropriate cover.

• Formwork is properly aligned and braced.

Address any issues before proceeding to avoid defects in the finished column.

8. Concrete Pouring

With the formwork and reinforcement in place, proceed to pour the concrete:

• Pouring: Pour concrete steadily to avoid segregation. For tall columns, concrete should be poured in layers not exceeding 600mm to prevent excessive pressure on the formwork.

• Compaction: Use mechanical vibrators to compact the concrete, eliminating voids and ensuring proper consolidation around the reinforcement.

• Monitoring: Observe the formwork for any signs of distress or leakage during pouring and address immediately if noticed.

9. Curing and Stripping the Formwork

After the concrete has been poured, it must be cured properly to achieve the desired strength:

• Curing Time: Allow the concrete to set and gain sufficient strength before removing the formwork. The time required can vary based on environmental conditions and concrete mix but is typically at least 24 to 48 hours.

• Stripping: Carefully remove the bracing and fasteners. Dismantle the formwork panels without causing damage to the concrete surface.

• Post-Stripping Cure: Continue curing the exposed concrete by keeping it moist, using methods such as water spraying or applying curing compounds.

Best Practices and Safety Considerations

Adhering to best practices ensures the quality of the construction and the safety of personnel.

Quality Control

• Use quality materials that meet industry standards.

• Ensure precise measurements and cutting to maintain dimensional accuracy.

• Regularly inspect formwork for wear and damage before reuse.

Safety Measures

• Provide training for workers on proper formwork assembly and handling.

• Use appropriate PPE at all times.

• Implement fall protection systems if working at heights.

• Ensure bracing and supports are correctly installed to prevent formwork failure.

Environmental Considerations

• Source timber from sustainable forestry suppliers.

• Reuse formwork materials where possible to reduce waste.

• Dispose of damaged or unusable materials responsibly.

Innovations in Timber Formwork

The construction industry continuously seeks improvements in formwork technology to enhance efficiency and quality. Recent developments include:

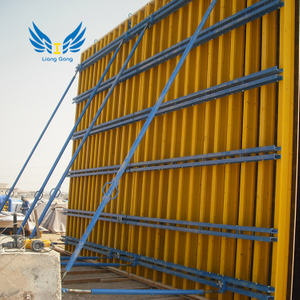

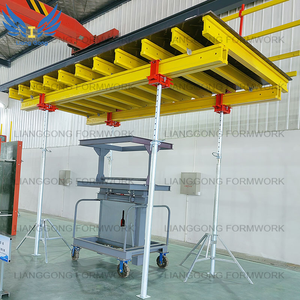

Prefabricated Timber Formwork Systems

Prefabricated systems streamline the construction process by providing standardized, modular components. These systems reduce on-site labor and improve consistency in concrete finishes. Companies like Lianggong Formwork offer advanced solutions, contributing to safer and more efficient construction practices.

Engineered Wood Products

The use of engineered wood products, such as laminated veneer lumber (LVL) and cross-laminated timber (CLT), enhances the strength and durability of formwork while allowing for larger spans and reduced material usage.

Case Study: Effective Column Formwork Implementation

Consider a mid-rise commercial building project where the contractor implemented a systematic approach to column formwork using timber:

• Customization: Timber formwork was customized to accommodate varying column sizes throughout the building.

• Efficient Material Use: By optimizing the cutting schedules, waste was minimized, and the formwork was reused multiple times.

• Quality Outcome: The columns exhibited excellent surface finishes, reducing the need for extensive post-pour surface treatments.

• Safety Record: Strict adherence to safety protocols resulted in zero formwork-related incidents during the project.

Conclusion

Constructing timber formwork for columns is a vital skill in the concrete construction industry. By following detailed planning, precise execution, and adherence to safety and quality standards, factories, channel merchants, and distributors can significantly contribute to successful construction projects. Embracing innovations and best practices not only enhances the efficiency of formwork creation but also improves the overall structural integrity and aesthetic quality of the finished columns. For those involved in Concrete Pouring Construction Timber Formwork, staying informed about the latest technologies and methods is essential for maintaining a competitive edge in the industry.
